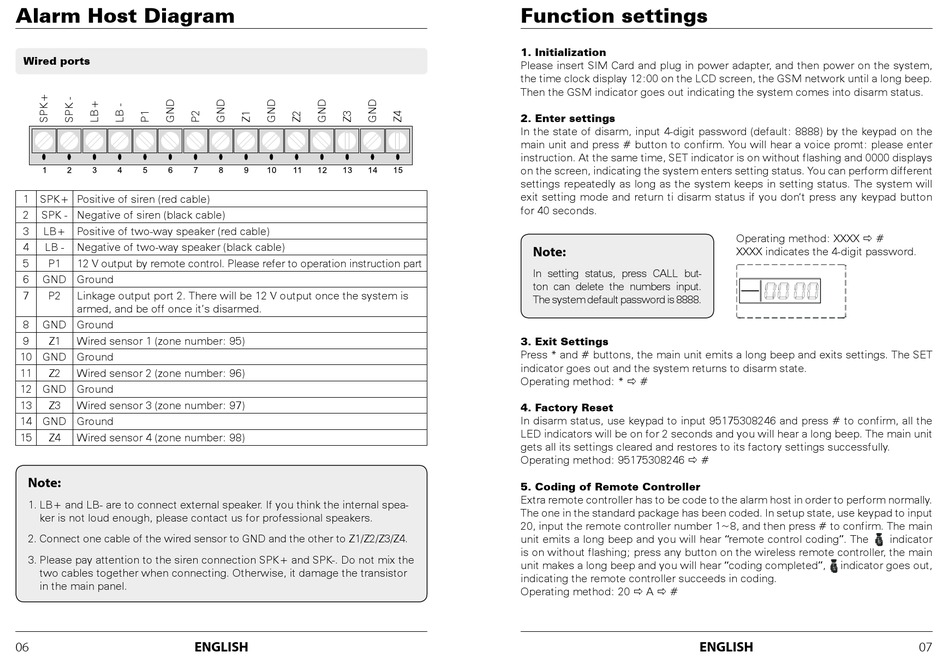

Alarm Host Diagram
Wired ports
1 SPK+ Positive of siren (red cable)
2 SPK - Negative of siren (black cable)
3 LB+ Positive of two-way speaker (red cable)
4 LB - Negative of two-way speaker (black cable)
5 P1 12 V output by remote control. Please refer to operation instruction part
6 GND Ground
7 P2 Linkage output port 2. There will be 12 V output once the system is
armed, and be off once it's disarmed.
8 GND Ground
9 Z1 Wired sensor 1 (zone number: 95)
10 GND Ground
11 Z2 Wired sensor 2 (zone number: 96)
12 GND Ground
13 Z3 Wired sensor 3 (zone number: 97)
14 GND Ground
15 Z4 Wired sensor 4 (zone number: 98)
Note:
1. LB+ and LB- are to connect external speaker. If you think the internal spea-
ker is not loud enough, please contact us for professional speakers.
2. Connect one cable of the wired sensor to GND and the other to Z1/Z2/Z3/Z4.
3. Please pay attention to the siren connection SPK+ and SPK-. Do not mix the
two cables together when connecting. Otherwise, it damage the transistor
in the main panel.
ENGLISH
06

Function settings

1. Initialization

Please insert SIM Card and plug in power adapter, and then power on the system,
the time clock display 12:00 on the LCD screen, the GSM network until a long beep.
Then the GSM indicator goes out indicating the system comes into disarm status.
2. Enter settings
In the state of disarm, input 4-digit password (default: 8888) by the keypad on the
main unit and press # button to confirm. You will hear a voice promt: please enter
instruction. At the same time, SET indicator is on without flashing and 0000 displays
on the screen, indicating the system enters setting status. You can perform different
settings repeatedly as long as the system keeps in setting status. The system will
exit setting mode and return ti disarm status if you don't press any keypad button
for 40 seconds.
Note:
In setting status, press CALL but-
ton can delete the numbers input.
The system default password is 8888.

3. Exit Settings

Press * and # buttons, the main unit emits a long beep and exits settings. The SET
indicator goes out and the system returns to disarm state.
Operating method: * a #

4. Factory Reset

In disarm status, use keypad to input 95175308246 and press # to confirm, all the
LED indicators will be on for 2 seconds and you will hear a long beep. The main unit
gets all its settings cleared and restores to its factory settings successfully.
Operating method: 95175308246 a #

5. Coding of Remote Controller

Extra remote controller has to be code to the alarm host in order to perform normally.
The one in the standard package has been coded. In setup state, use keypad to input
20, input the remote controller number 1~8, and then press # to confirm. The main
unit emits a long beep and you will hear "remote control coding". The
is on without flashing; press any button on the wireless remote controller, the main
unit makes a long beep and you will hear "coding completed",
indicating the remote controller succeeds in coding.
Operating method: 20 a A a #
Operating method: XXXX a #
XXXX indicates the 4-digit password.
indicator goes out,
