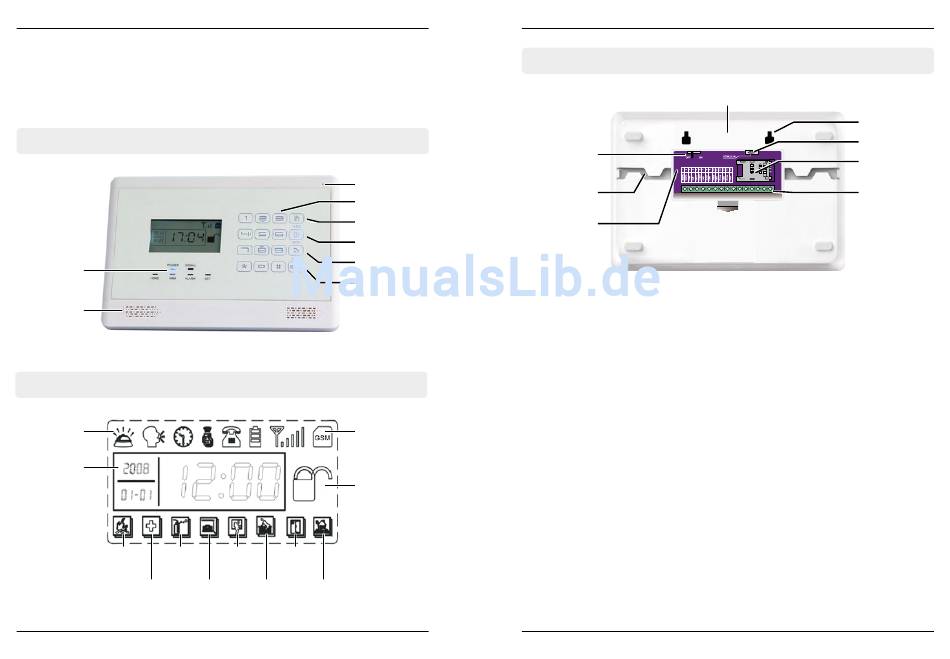

Alarm Host Diagram

In order to make the main unit get the wireless signal well for all wireless accesso-
ries, please put the alarm host at the central place of your defense area. Make sure
it's away from large metal objects and household appliances which may cause high
frequency interference, as well as barriers such as reinforced concrete wall or fire
door, etc.

Main panel front schematic diagram

Status
indicator
Speaker

LCD display

Alarm
Clock/
Defence
Zone
Fire Gas
Alarm Leakage
SOS
Alarm
ENGLISH
04
Mic
Touch Keypad
Out Arm
Home Arm
Call Out
Emergency
Status
indicator
Arm/Disarm
Window Door
Alarm Alarm
Hall Balcony Boundary
Alarm Alarm
Alarm Host Diagram

Back cover schematic diagram

Tamper Alarm Button
Power
Switch
Lead Wire Slot
PCB
Fix Bracket
DC 12V Input
SIM Card
Socket

Wired Ports
