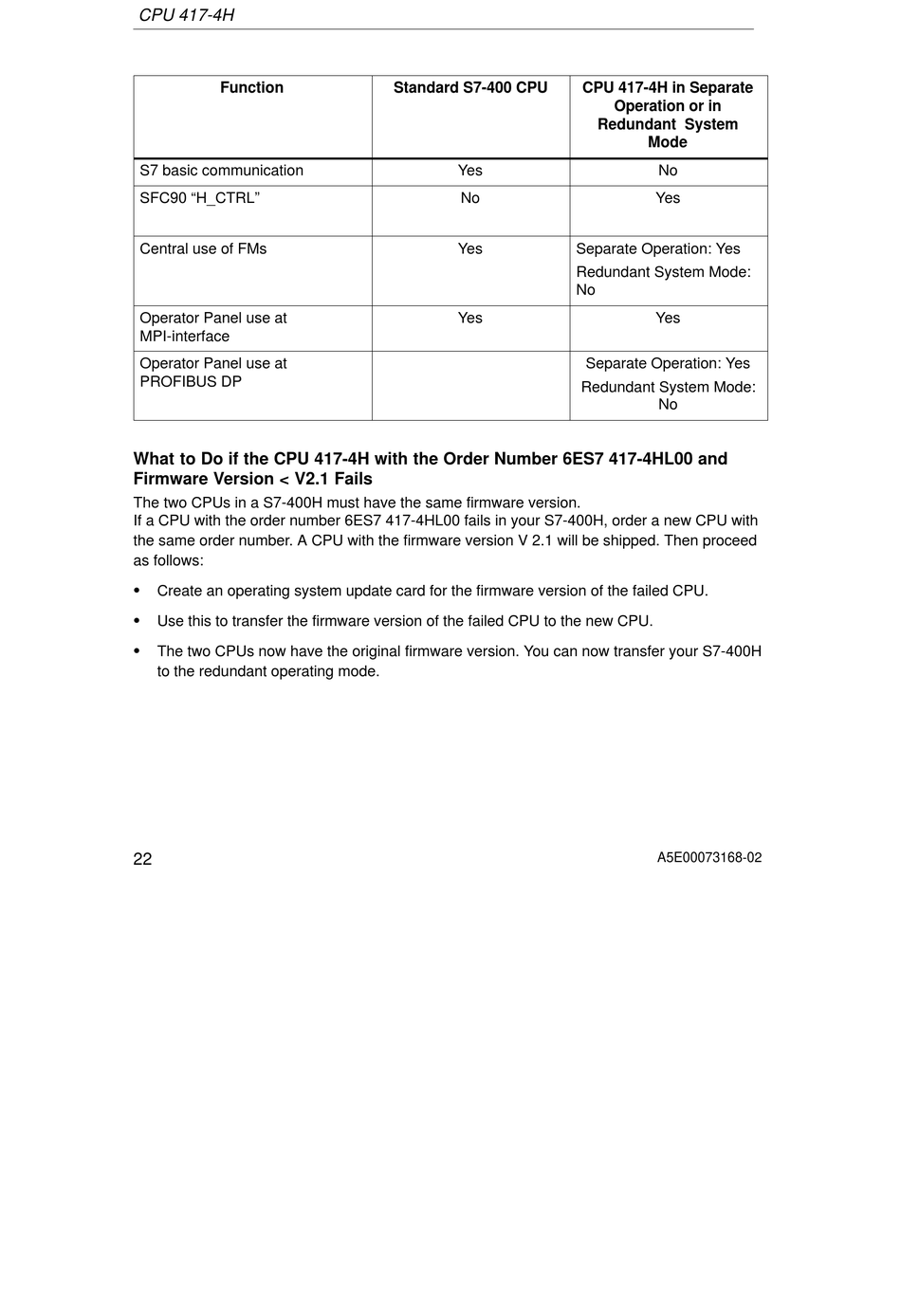

Siemens CPU417-4 H Produktinformation Seite 22

CPU 417-4H
Function
S7 basic communication
SFC90 "H_CTRL"
Central use of FMs
Operator Panel use at
MPI-interface
Operator Panel use at
PROFIBUS DP
What to Do if the CPU 417-4H with the Order Number 6ES7 417-4HL00 and
Firmware Version < V2.1 Fails
The two CPUs in a S7-400H must have the same firmware version.
If a CPU with the order number 6ES7 417-4HL00 fails in your S7-400H, order a new CPU with
the same order number. A CPU with the firmware version V 2.1 will be shipped. Then proceed
as follows:
S
Create an operating system update card for the firmware version of the failed CPU.
S
Use this to transfer the firmware version of the failed CPU to the new CPU.
S
The two CPUs now have the original firmware version. You can now transfer your S7-400H
to the redundant operating mode.
22
Standard S7-400 CPU
Yes
No
Yes
Yes
CPU 417-4H in Separate
Operation or in
Redundant System
Mode
No
Yes
Separate Operation: Yes
Redundant System Mode:
No
Yes
Separate Operation: Yes
Redundant System Mode:
No
A5E00073168-02
