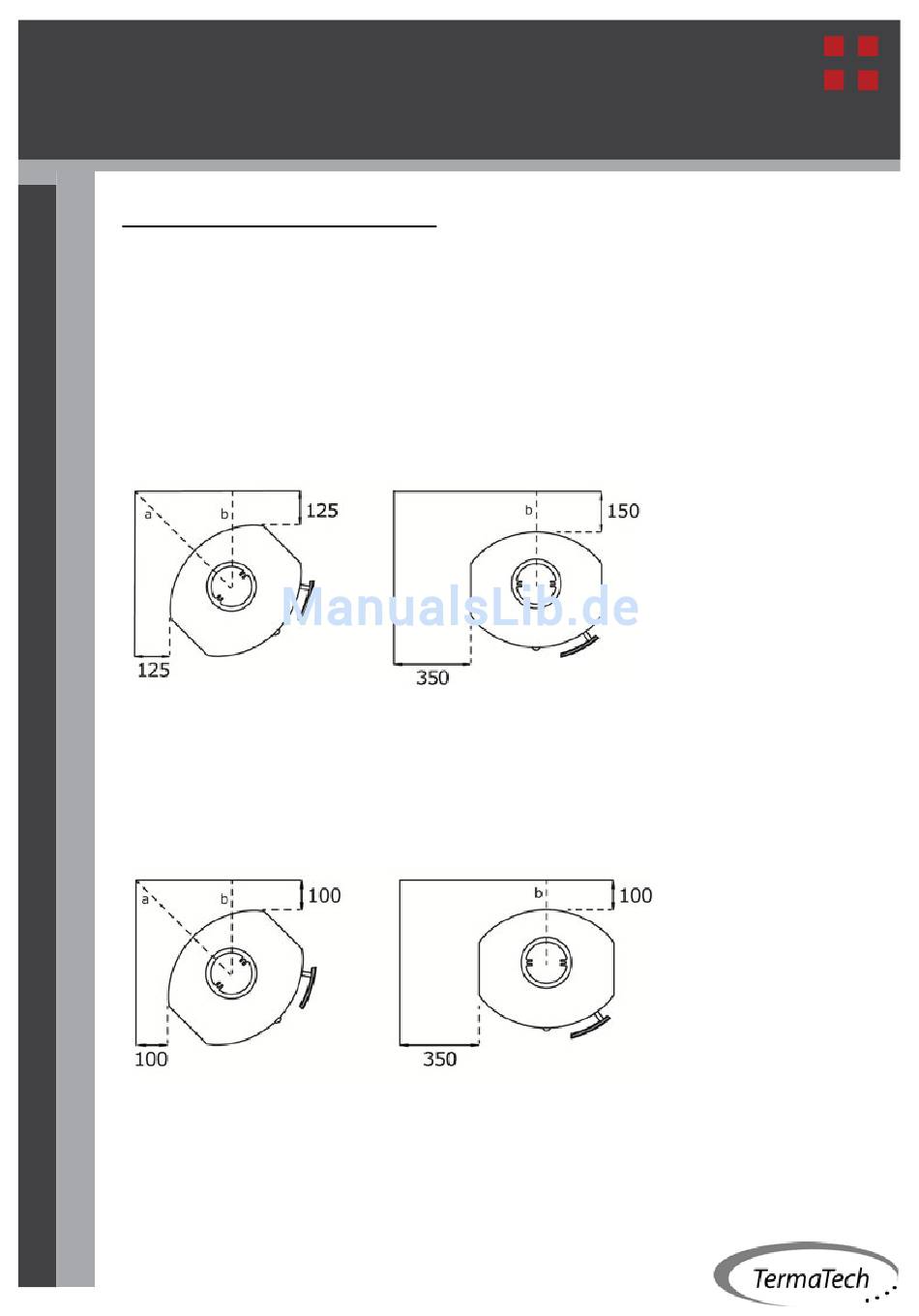

Distance to combustible materials:
covering 150 mm on each side of the stove and 300 mm in front of the stove.
following minimum distances apply:
NON-INSULATED Smoke pipe
150 mm behind the stove to combustible materials (b: 338 mm)
350 mm to the side of the stove to combustible materials
125mm for corner set-up 45° (a:493mm + b:348mm)
1000mm in front of the stove to combustible materials
INSULATED Smoke pipe
100mm behind the stove to combustible materials (b: 288mm)
350 mm to the side of the stove to combustible materials
The wood-burning stove is to be set up on a non-flammable base or have a non-flammable
100mm for corner set-up 45° (a:457mm + b:323mm)
floor plate, located in front. For both variants there must be a non-flammable floor/floor
1000mm in front of the stove to combustible materials
