Installation
GB
Connection
52
WARNING
With the installation of the device damage can occur!
► If possible have the device installed by a qualifi ed technician.
► If you want to install the device yourself, for safe and fl awless operation
of the device follow the instructions for connection and installation.
IMPORTANT
The use of incorrect connections can lead to damage to the
device.
► For installation use the device's ISO connections. The vehicle specifi c ISO
adapter that you may possibly require can be obtained from a specialist
establishment, from a local dealer or from the store's technical department.
When using other connection types the warranty becomes void!

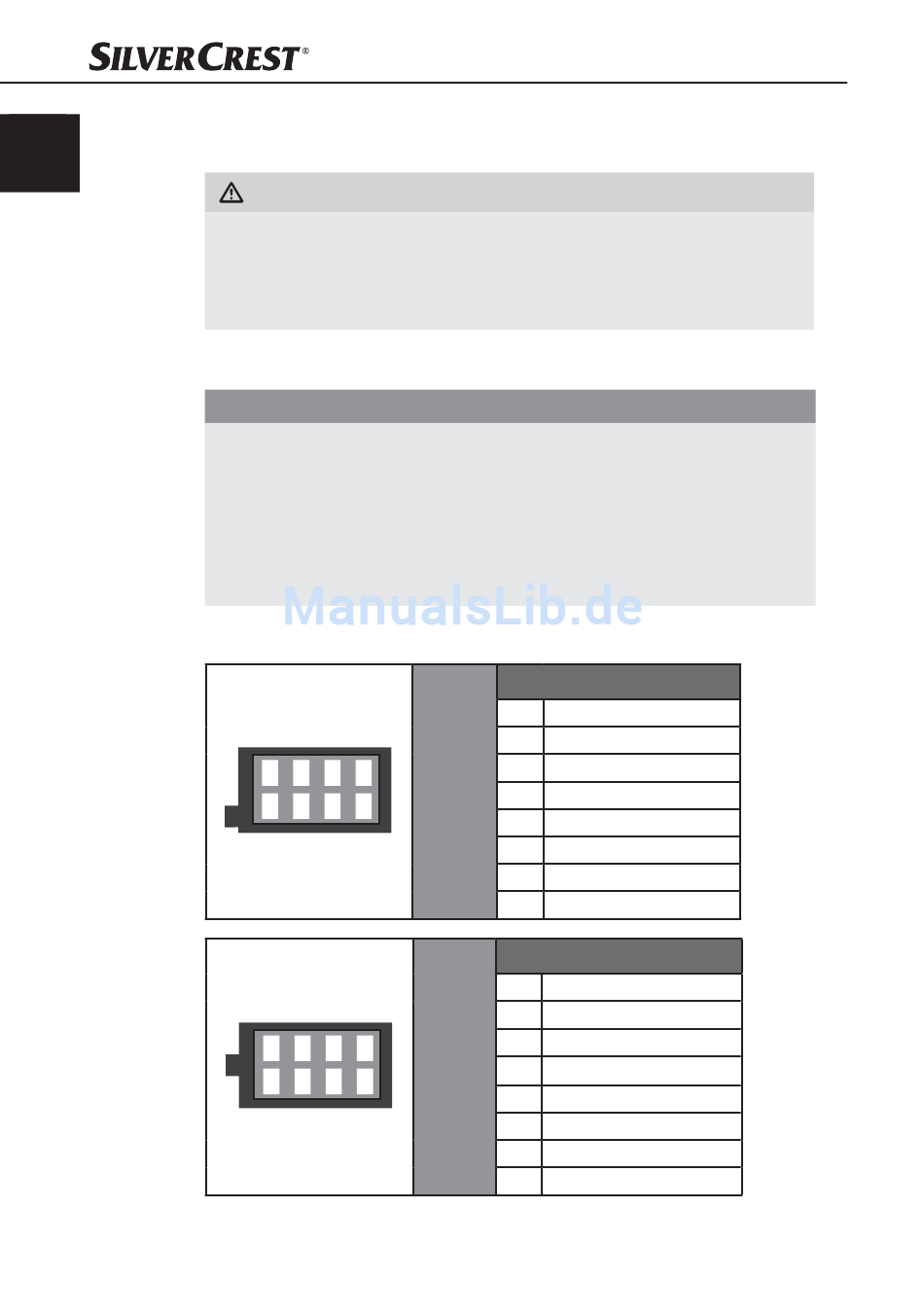

Confi guration of the ISO connections
1 3 5 7
2 4 6 8
1 3 5 7
2 4 6 8
Confi guration
1 unconfi gured
2 unconfi gured
3 unconfi gured
ISO A
4 Permanent positive
5 Antenna power
6 unconfi gured
7 12 V (Ignition positive)
8 Minus (-)
Confi guration
1 Rear right +
2 Rear right -
3 Front right +
ISO B
4 Front right -
5 Front left +
6 Front left -
7 Rear left +
8 Rear left -
Bluetooth Car Radio KH 2376
Installation
