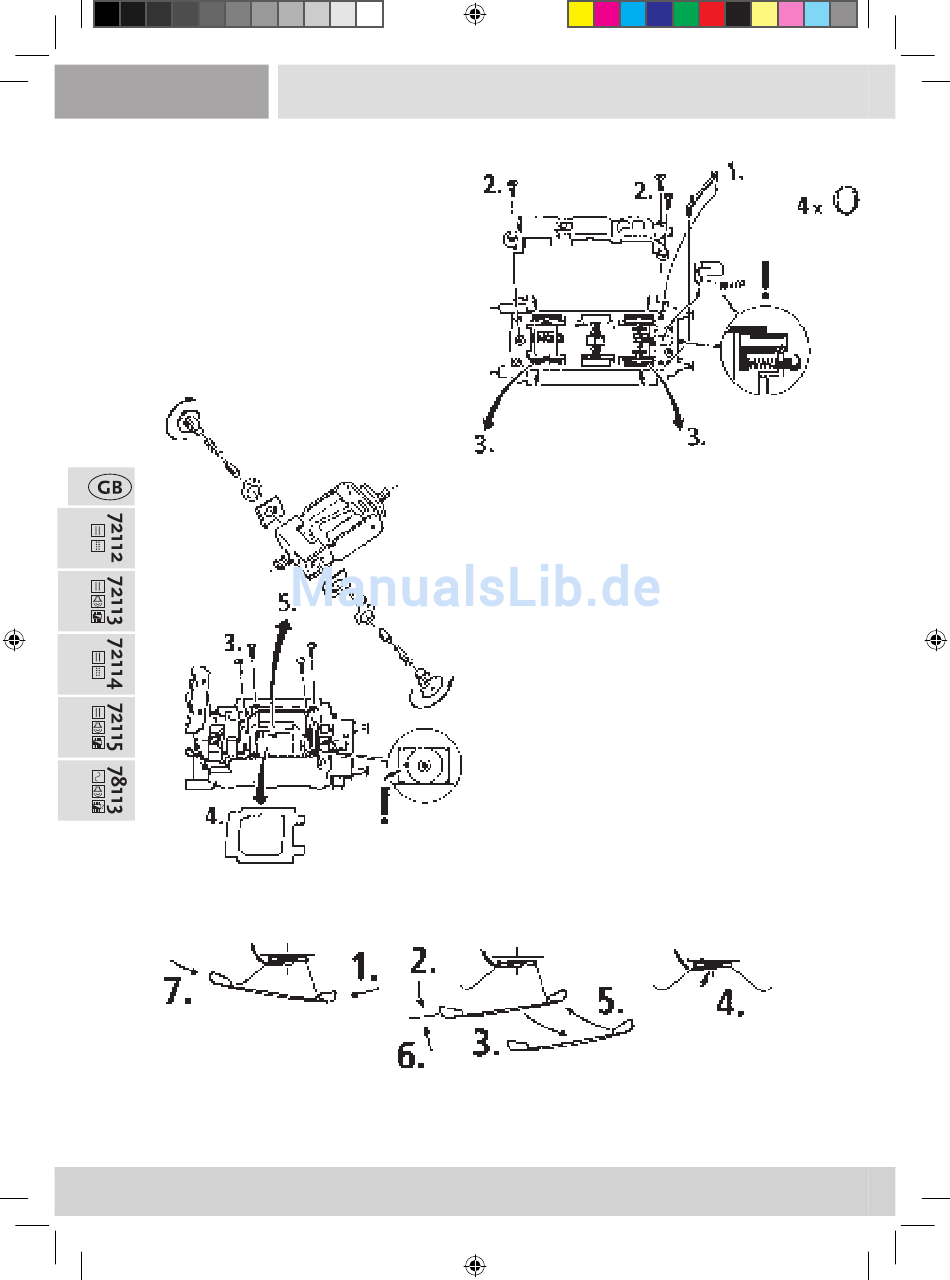

▪ Replacement of traction tyres

Remove boogie blind. Remove the traction tyres
using a needle or a thin screwdriver. When app-
lying the new traction tyres, please ensure that
they do not rotate.

▪ AC pick up (only for 78113)

▪ Assembly

Pay attention to the correct position of the contacts during assembly.
24
24
8072112920.indd 24
▪ Carbon Brush Changing
First remove tender body see chapter: Lubrication
