• Please ensure the fans and heatsinks are
clear from dust and debris otherwise the
risk of overheating may occur. If the unit
and airways appear to be blocked then
please contact a qualified service engi-
neer to maintain and service the product.

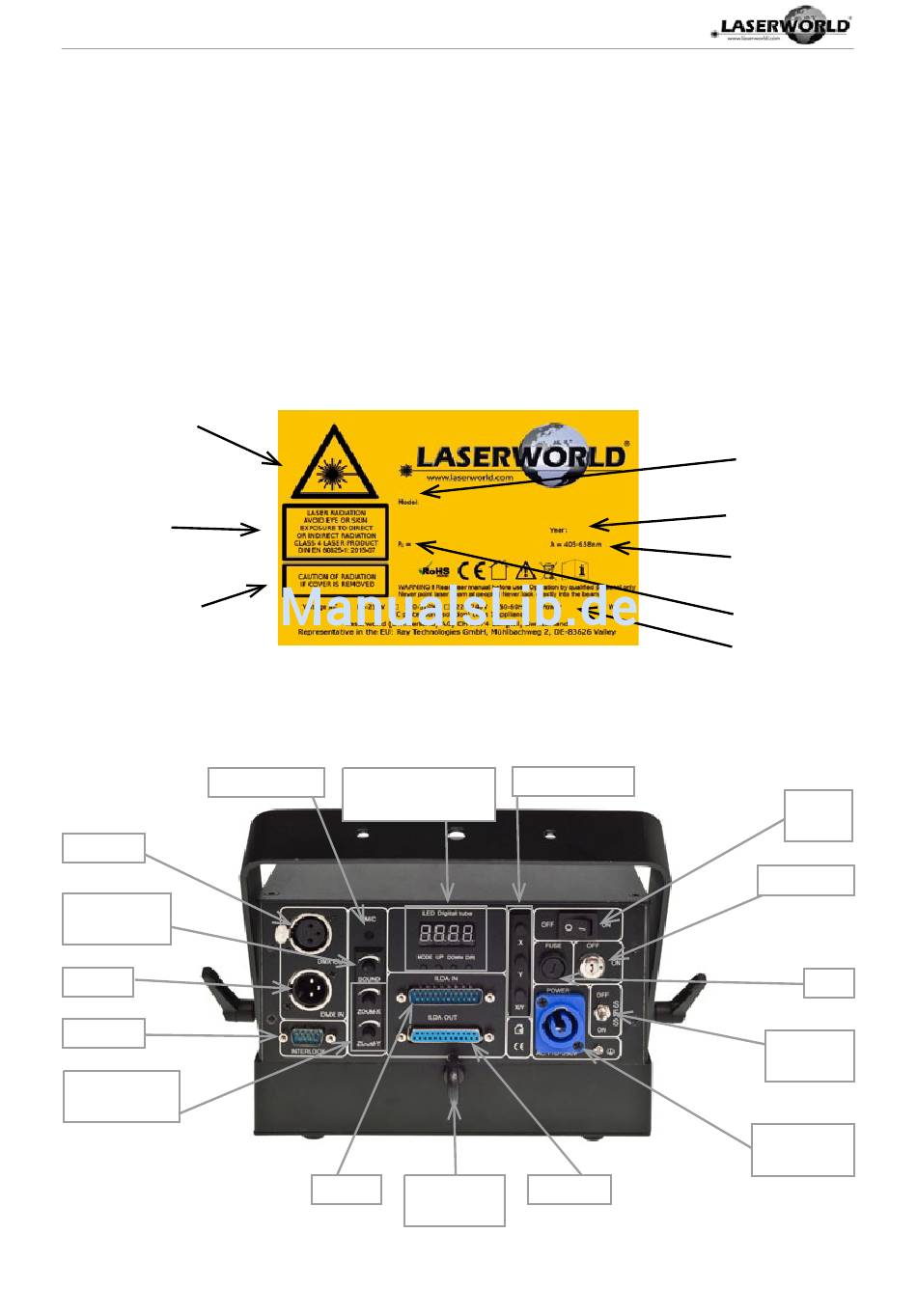

6. Warnings and other notices on the device

Laser radiation!
Avoid exposure
to beam.
Laser class 4
Caution of
radiation if cover
is removed

7. Device connections

microphone
DMX out
microphone
sensitivity
DMX in
Interlock
pattern size
zoom control
page 6 / 36
• Removal of the warranty label as well
Please read manual before operation
Use in enclosed spaces only!
Mode selection,
DMX settings, etc.
ILDA in loop for
safety cord
as damages to the device caused by
improper handling, neglect of the sa-
fety instructions and service notes will
void the warranty.
X / Y inversion
ILDA out
Model type
Production
year
Wavelength
Output power
Power supply
& consumption
On/Off
switch
key switch
Fuse
Scan Fail
Safety
power
connection
