Manual: TARM Beamtable
•
operation, the device should cool down
for about 15 minutes.
•
As for troubleshooting, please check the
FAQ on our website www.laserworld.com

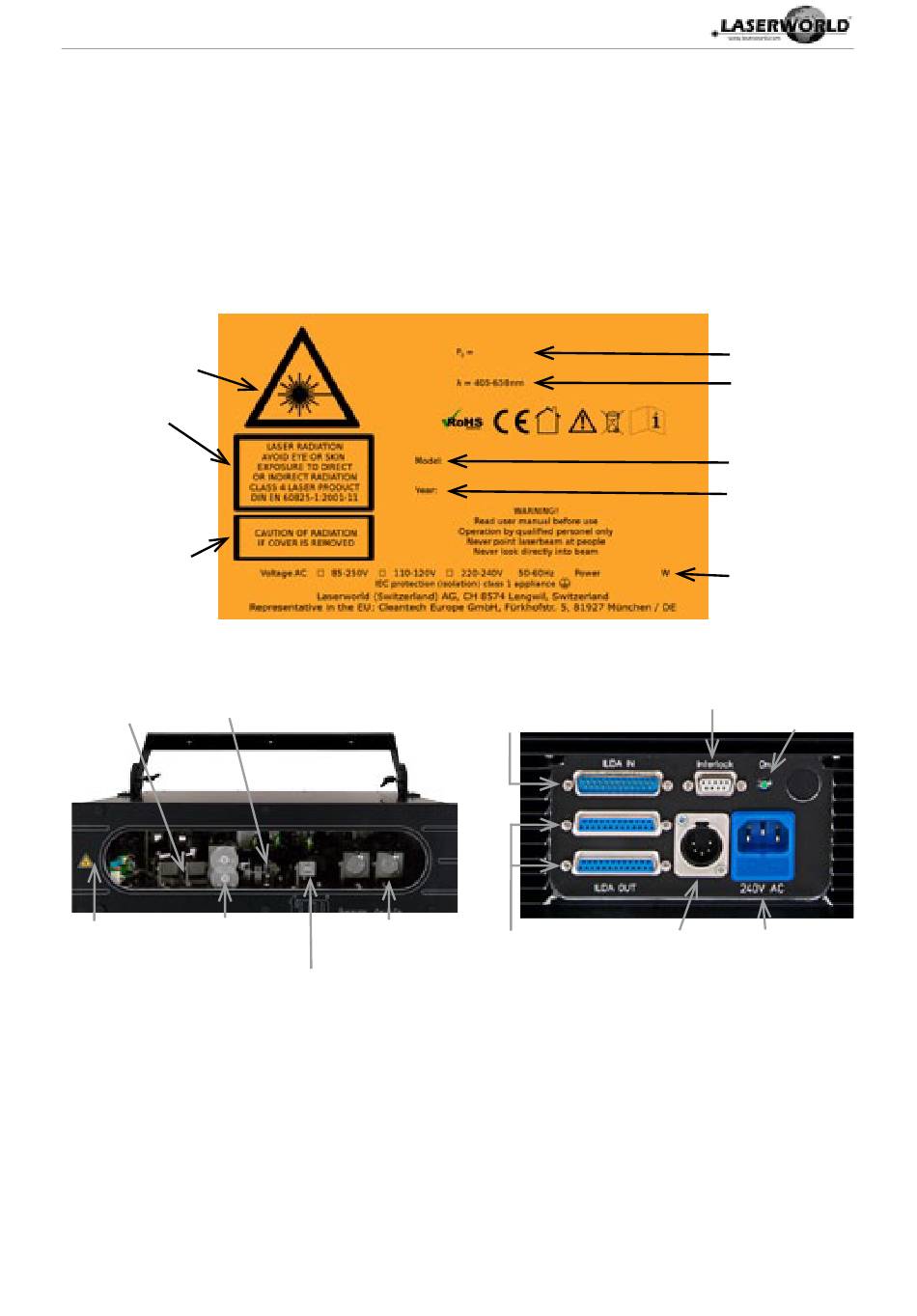

6. Warnings and other notices on the device
Laser radiation!
Avoid exposure
to beam.
Laser class 4
Caution of
radiation if cover
is removed
7. Device connections
Shot-beam effect
Scanner system
Emission
rotating diffraction
LED
grating
8. Operation
a. ILDA in / ILDA out
The Tarm Beamtable can be controlled over standard ILDA control signal. The connectors for
ILDA in and ILDA out are located at the general connection panel (see picture on left page).
Caution: The ILDA out interface does not provide a signal output for normal daisy-chain opera-
tion, but it provides additional contol data that comes through the main ILDA line for satellite
projectors.
For operation of the Beamtable, connect the ILDA interface at the projector to the ILDA inter-
page 6 / 18
Please read manual before operation
Use in enclosed spaces only!
Optical tun-
nel effect
line grating
• Removal of the warranty label as well
as damages to the device caused by
improper handling, neglect of the sa-
fety instructions and service notes will
void the warranty.
ILDA
Input
ILDA output,
no through
Output power
wavelength
model type
production
year
power supply
& consumption
Interlock
interface Operation-LED
DMX
Power
Input
connection
