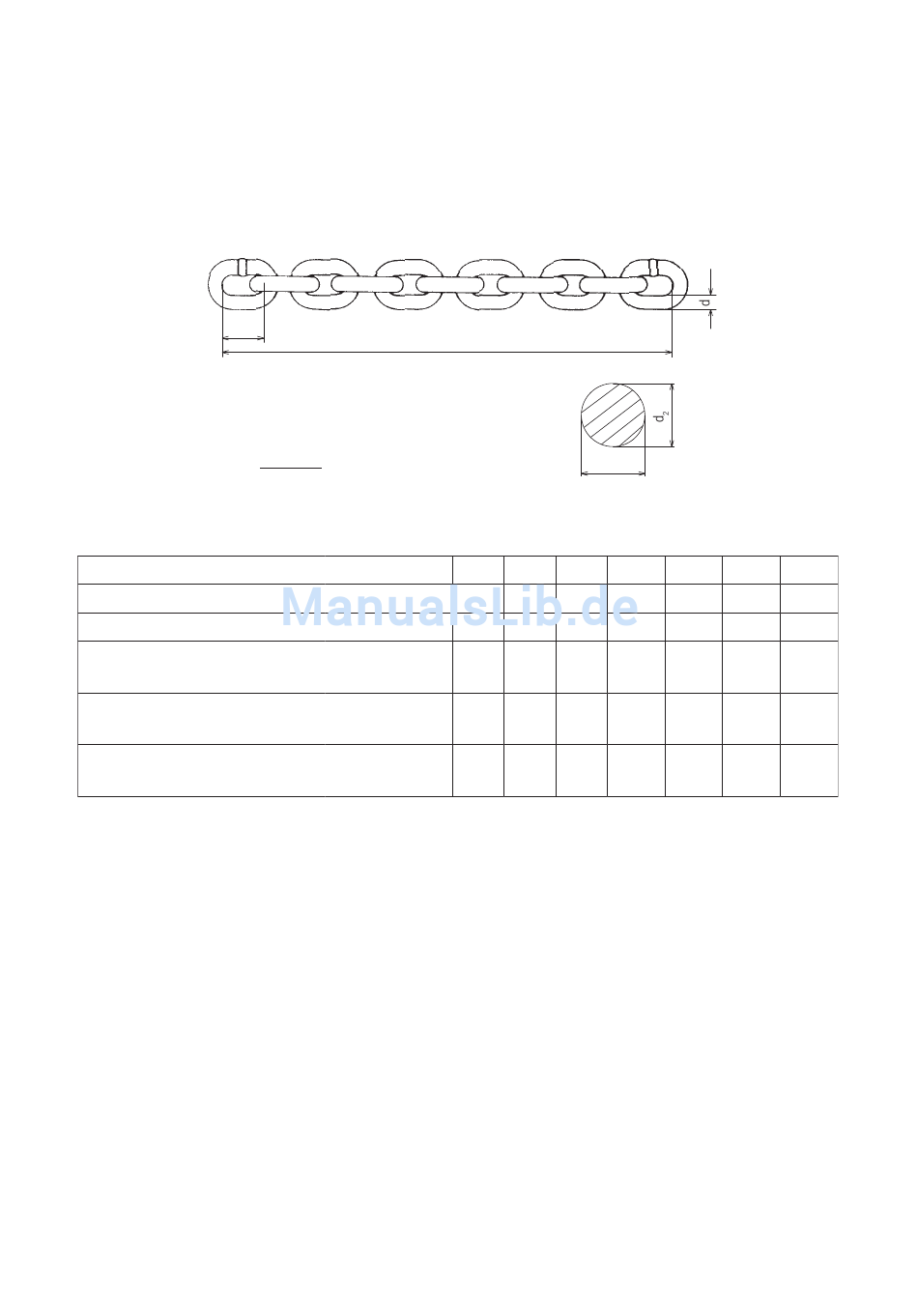

Round-section steel chains must be replaced when the original nominal thickness ´d´ on the
chain link with the worst wear has been reduced by more than 10% or when the chain has
elongated over one pitch ´pn´ by 5% or over 11 pitches (11 x pn) by 3 %.
Nominal dimensions and wear limits are shown in table 2. If one of the limit values is reached,
the load chain must be replaced.
p
n
d = Nenndicke der Kette / Nominal thickness of chain
Epaisseur nominale de la chaîne
d , d
1 2
d =
min.
Nominalwerte und Verschleißgrenzen / Nominal values and wear limitation
Valeurs nominales et limites d'usure
Yalelift 360
Rundstahlkette / Round link chain / Chaîne à maillons [mm] 5 x 15 6 x 18 8 x 24 10 x 30 10 x 30 10 x 30 10 x 30
Güteklasse / Grade / Grade
Durchmesser / Diameter / Diamètre
Teilung / Pitch / Division
Meßlänge / Length / Longueur
*Bei Lastketten aus Edelstahl ggf. Traglastreduzierung beachten!
*Please be aware of a possible capacity reduction if using stainless steel load chains
*Avec chaîne inox, les appareils sont livrés avec une capacité inférieure. Ils sont déclassés.
Maintenance of the load chain
In most cases, chain wear in the link points is caused by insufficient care of the chain. In order
to ensure optimal lubrication of the link contact points, lubricate the chain at regular intervals
adapted to the application with creep-type lubricant (e.g. gear oil). A dry film lubricant, e.g.
PTFE spray, should be used in environments where abrasives like sand, etc., occur. The
service life of the load chain can be increased by careful lubrication to 20 - 30 times compared
with a chain that is not serviced.
• When lubricating the chain, make sure the chain is in no-load condition so that the oil can
reach the contact points of the chain links which are subject to wear. Chain link parts
contacting each other must always be coated with lubricant, otherwise increased wear on the
chain results.
• It is not sufficient to lubricate the chains on the outside as this does not ensure that a
lubricant film can build up in the contact points.
• With a constant lifting path of the chain, the change-over area from lifting to lowering
movement must be checked in particular.
= Istwert / Actual value / Valeur réelle
d + d
1 2
≤ 0,9 d
2
d
[mm]
nom.
d
[mm]
min.
p
[mm]
n nom.
p
[mm]
n max.
11 x p
[mm]
n nom.
11 x p
[mm]
n max.
©
2016 Columbus McKinnon Industrial Products GmbH
11 x
p
n
0,5/1 1/1 2/1
T / (S*) T / (S*) T / (P*) T / (P*) T / (P*) V / (P*) V / (P*)
5,0 6,0 8,0
4,5 5,4 7,2
15,0 18,0 24,0
15,8 18,9 25,2
165,0 198,0 264,0
170,0 203,9 271,9
Tab. 2
d
1
3/1 5/2 10/3
10,0 10,0 10,0
9,0 9,0 9,0
30,0 30,0 30,0
31,5 31,5 31,5
330,0 330,0 330,0
339,9 339,9 339,9
27
20/6
10,0
9,0
30,0
31,5
330,0
339,9
