NOTICE! Adjust the door properly. The seal must close properly.

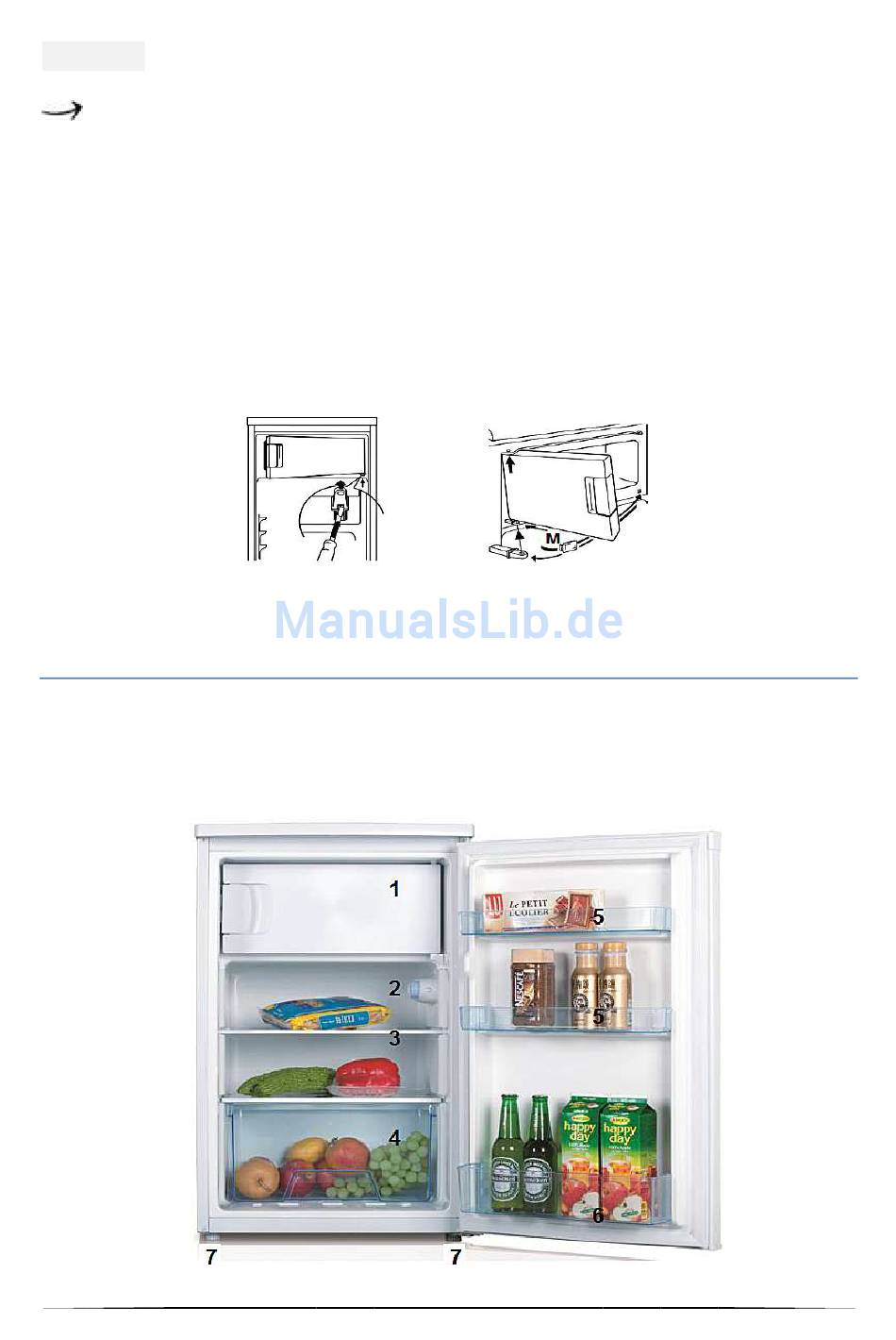

Changing of the freezer compartment door
1. Open the door of the freezer compartment slightly.
2. Carefully press the spring of the recess with a suitable screwdriver und remove
the pin of the door and the door.
3. Install sealing plug (M) on the opposite side.
4. Turn the door by 180
5. Lift the door slightly and insert it in the top pin while inserting the bottom pin
in the square opening. Moving the door up and down simplifies the installation.
6. Clean the appliance before you connect it to the mains.

4. Operation

4.1 Main components

0
und insert the pin in the recess on the bottom.
