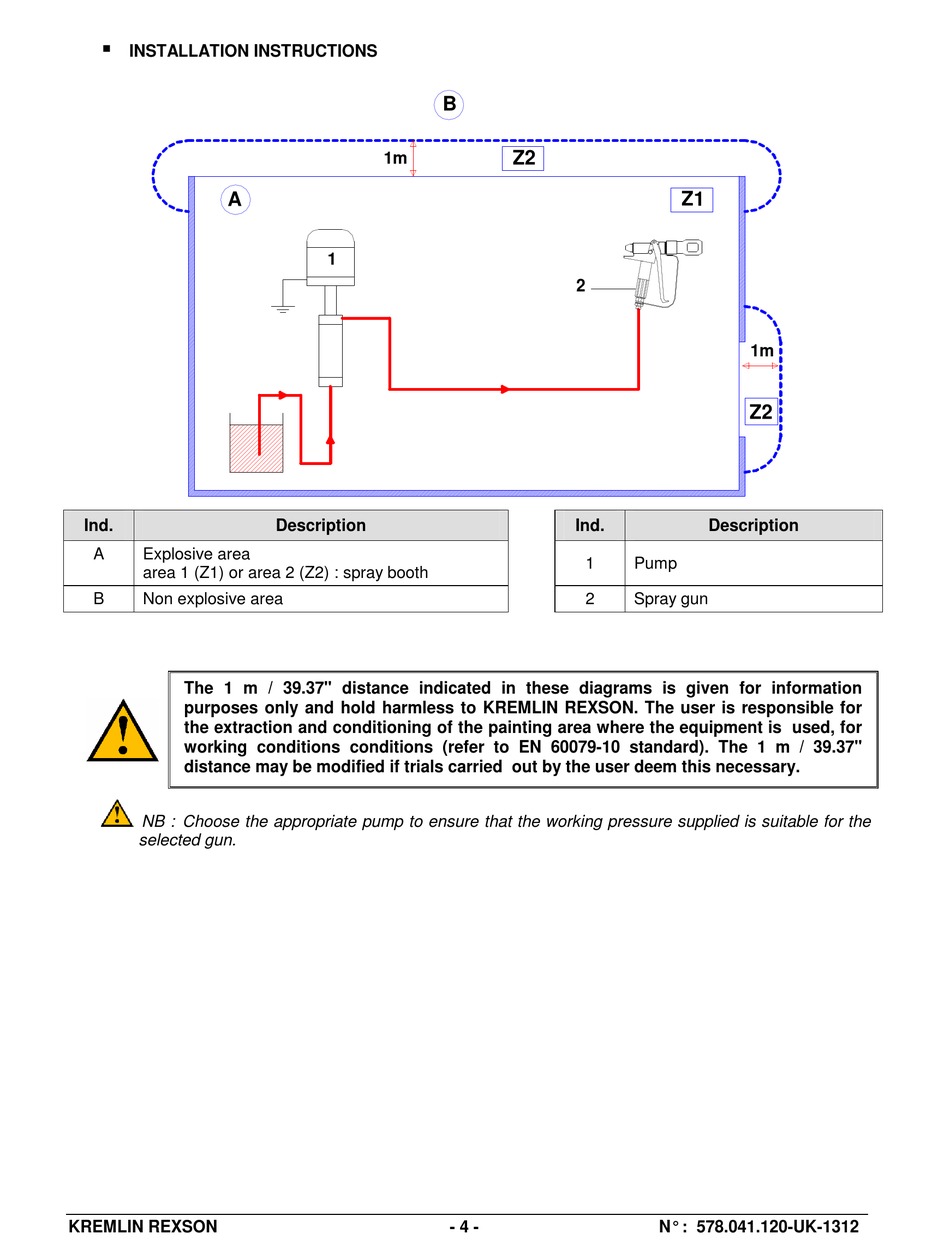

INSTALLATION INSTRUCTIONS
A
Ind.
A
Explosive area
area 1 (Z1) or area 2 (Z2) : spray booth
B
Non explosive area
The 1 m / 39.37" distance indicated in these diagrams is given for information
purposes only and hold harmless to KREMLIN REXSON. The user is responsible for
the extraction and conditioning of the painting area where the equipment is used, for
working conditions conditions (refer to EN 60079-10 standard). The 1 m / 39.37"
distance may be modified if trials carried out by the user deem this necessary.
NB : Choose the appropriate pump to ensure that the working pressure supplied is suitable for the
selected gun.
KREMLIN REXSON
B
1m
1
Description
- 4 -
Z2
Z1
2
Ind.
1
Pump
2
Spray gun
N° : 578.041.120-UK-1312
1m
Z2
Description
