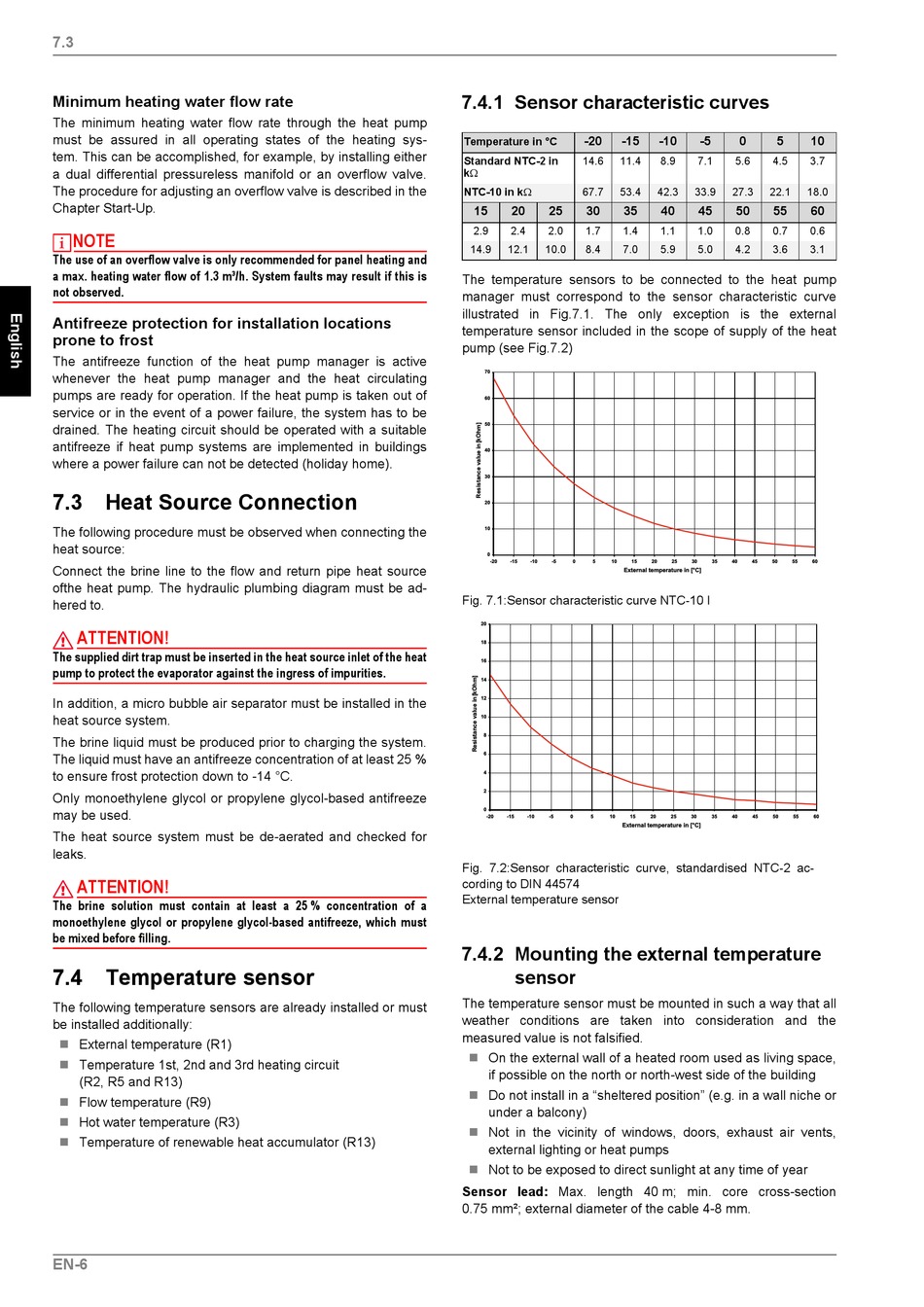

7.3
Minimum heating water flow rate
The minimum heating water flow rate through the heat pump
must be assured in all operating states of the heating sys-
tem. This can be accomplished, for example, by installing either
a dual differential pressureless manifold or an overflow valve.
The procedure for adjusting an overflow valve is described in the
Chapter Start-Up.
NOTE
The use of an overflow valve is only recommended for panel heating and
a max. heating water flow of 1.3 m³/h. System faults may result if this is
not observed.
Antifreeze protection for installation locations
prone to frost
The antifreeze function of the heat pump manager is active
whenever the heat pump manager and the heat circulating
pumps are ready for operation. If the heat pump is taken out of
service or in the event of a power failure, the system has to be
drained. The heating circuit should be operated with a suitable
antifreeze if heat pump systems are implemented in buildings
where a power failure can not be detected (holiday home).

7.3 Heat Source Connection

The following procedure must be observed when connecting the
heat source:
Connect the brine line to the flow and return pipe heat source
ofthe heat pump. The hydraulic plumbing diagram must be ad-
hered to.
ATTENTION!
The supplied dirt trap must be inserted in the heat source inlet of the heat
pump to protect the evaporator against the ingress of impurities.
In addition, a micro bubble air separator must be installed in the
heat source system.
The brine liquid must be produced prior to charging the system.
The liquid must have an antifreeze concentration of at least 25 %
to ensure frost protection down to -14 °C.
Only monoethylene glycol or propylene glycol-based antifreeze
may be used.
The heat source system must be de-aerated and checked for
leaks.
ATTENTION!
The brine solution must contain at least a 25 % concentration of a
monoethylene glycol or propylene glycol-based antifreeze, which must
be mixed before filling.

7.4 Temperature sensor

The following temperature sensors are already installed or must
be installed additionally:
 External temperature (R1)
 Temperature 1st, 2nd and 3rd heating circuit
(R2, R5 and R13)
 Flow temperature (R9)
 Hot water temperature (R3)
 Temperature of renewable heat accumulator (R13)
EN-6
7.4.1 Sensor characteristic curves
-20 -15
Temperature in °C
Standard NTC-2 in 14.6 11.4
k
NTC-10 in k 67.7 53.4
15 20 25 30 35
2.9 2.4 2.0 1.7 1.4
14.9 12.1 10.0 8.4 7.0
The temperature sensors to be connected to the heat pump
manager must correspond to the sensor characteristic curve
illustrated in Fig.7.1. The only exception is the external
temperature sensor included in the scope of supply of the heat
pump (see Fig.7.2)
Fig. 7.1:Sensor characteristic curve NTC-10 l
Fig. 7.2:Sensor characteristic curve, standardised NTC-2 ac-
cording to DIN 44574
External temperature sensor
7.4.2 Mounting the external temperature
sensor
The temperature sensor must be mounted in such a way that all
weather conditions are taken into consideration and the
measured value is not falsified.
 On the external wall of a heated room used as living space,
if possible on the north or north-west side of the building
 Do not install in a "sheltered position" (e.g. in a wall niche or
under a balcony)
 Not in the vicinity of windows, doors, exhaust air vents,
external lighting or heat pumps
 Not to be exposed to direct sunlight at any time of year
Sensor lead: Max. length 40 m; min. core cross-section
0.75 mm²; external diameter of the cable 4-8 mm.
-10 -5 0 5 10
8.9 7.1 5.6 4.5 3.7
42.3 33.9 27.3 22.1 18.0
40 45 50 55 60
1.1 1.0 0.8 0.7 0.6
5.9 5.0 4.2 3.6 3.1
