4. DESCRIPTION

4.1 Features

Practical 16A distributor in 19" housing
Designed for mounting in 19" racks • 2U necessary for installation • 16A three-phase-current input plug and
output socket • Control lamps indicate each phase • 3 safety sockets on the housing front (1 per phase) • 6
safety sockets on the housing rear (2 per phase)

4.2 Description of the device

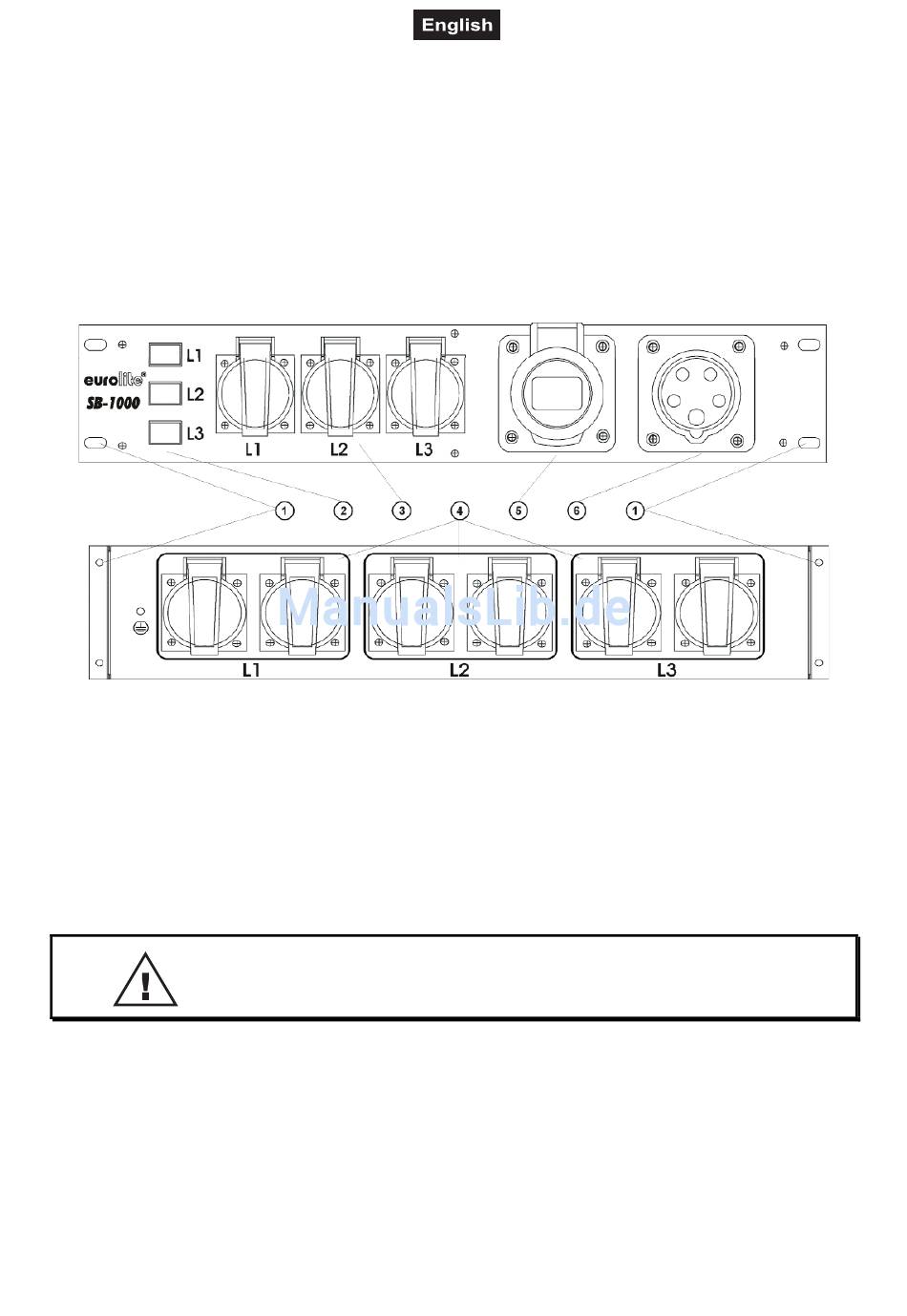

(1) 19" rack mounting holes
(2) Control lamps
(3) Power distribution sockets (front)
(4) Power distribution sockets (rear)
(5) 16A three-phase-current output socket (Bypass)
(6) 16A three-phase-current input plug

5. INSTALLATION

Please consider the DIN 15560 and the respective national norms during the
installation! The installation must only be carried out by an authorized dealer!
The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert before taking into operation for the first time and after changes before taking into operation another
time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a
skilled person once a year.
DANGER TO LIFE!
12/14 00026555.DOC, Version 2.0
