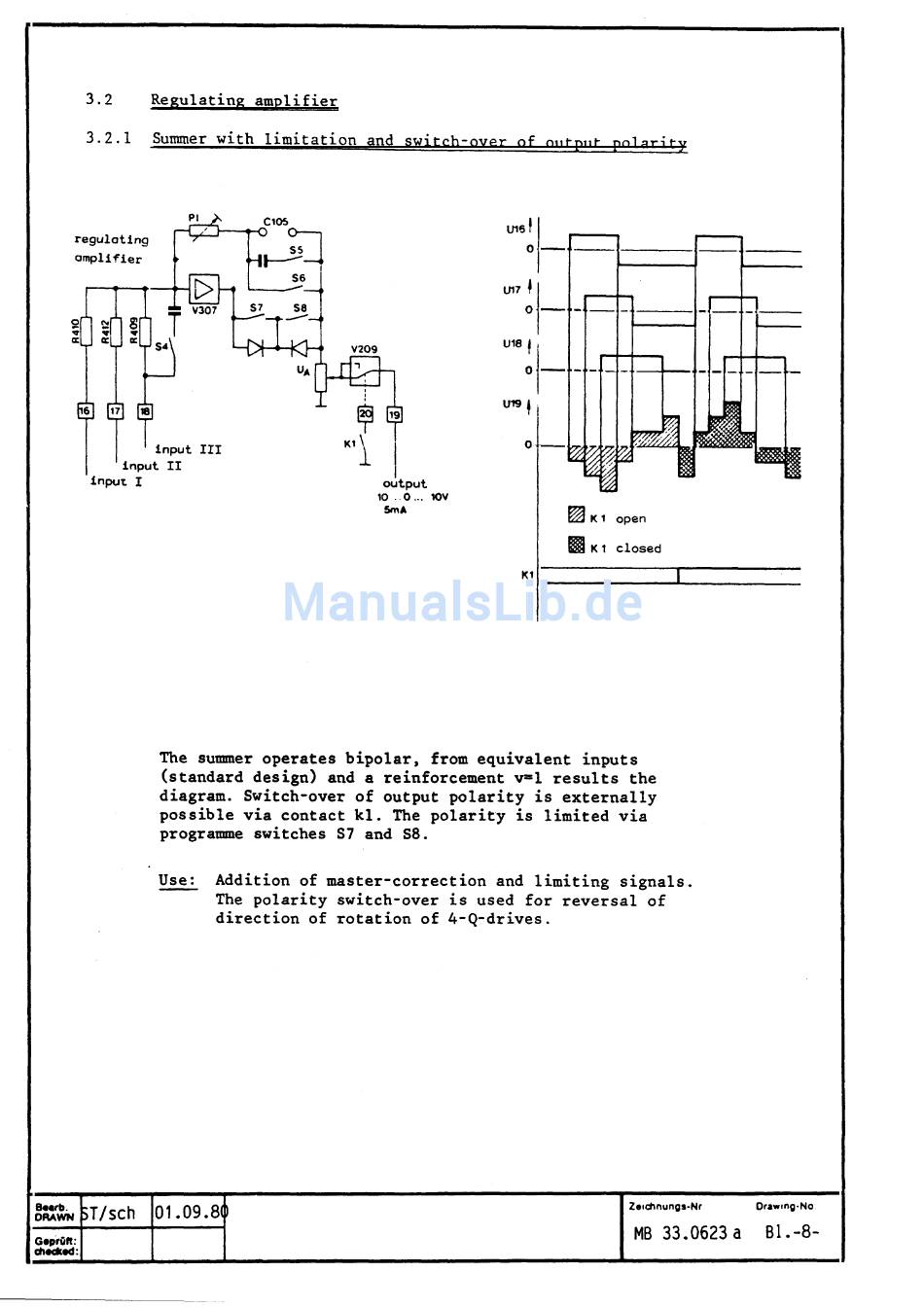

3.2 Regulating amplifier
3.2.1 Summer with limitation and switch-over of output polarity
regulati.ng
ornplifier
III
input
II
input
input 1
The summer operates bipolar, from equivalent inputs
(standard design) and a reinforcement v1 results the
diagram. Switch-over of output polarity is externally
possible via contact kl. The polarity is limited via
programme switches S7 and 58.
Use:
T/sch 01 .09.8
GeprOft:
~ie~ed:
V209
UA
K1~
output
10 .0
SmA
Addition of master-correction and limiting signals.
The polarity switch-over is used for reversal of
direction of rotation of 4-Q-drives.
Lenze Service GmbH,
Lenze QnbH & Co KG
Postfach 10 13 52, 31763 Hameln
+49 (0)51 54 / 82-0
0
U17#
U18
1.119
¶0V
...
Aerzen, 3250 Hameln
Z.d~nungs.Nr
1
B1.-8-
MB 33.0623a
0
