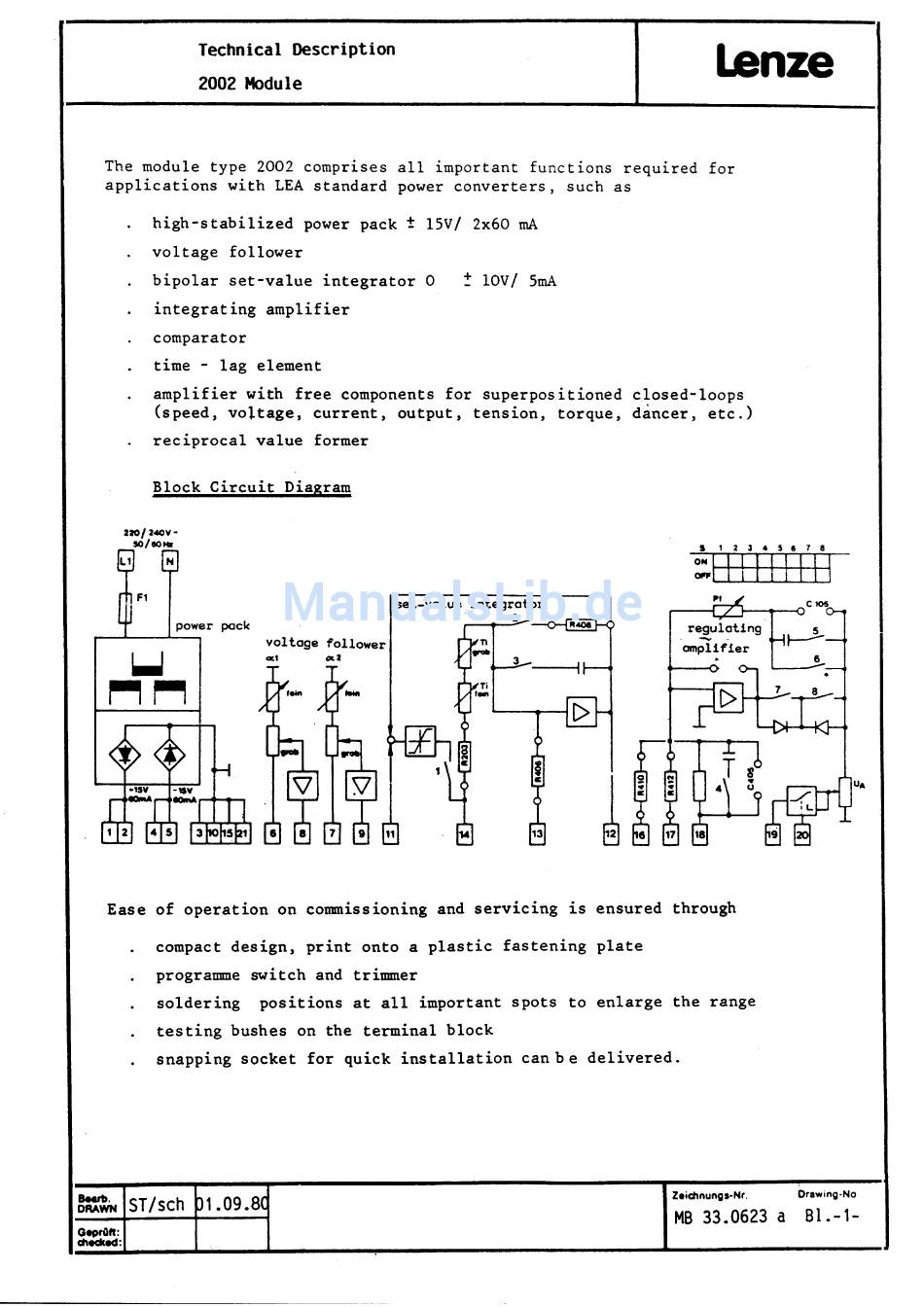

Lenze Funktionsbaugruppe 2002 Betriebsanleitung Seite 12

Technical
2002 Module
The module type 2002 comprises all important functions required for
applications with LEA standard power converters, such as
high-stabilized power pack ±15V! 2x60 mA
voltage follower
-
• bipolar set-value integrator 0
integrating amplifier
comparator
-
time lag element
-
amplifier with free components for superpositioned
(speed, vol.tage, current, output, tension, torque, dancer, etc.)
reciprocal value former
Block Circuit Diagram
voltage
Ease of Operation on conimissioning and servicing is ensured through
compact design, print onto a plastic fastening plate
programme switch and trimmer
-
soldering positions at all important spots to enlarge the range
-
testing bushes on the terminal block
snapping socket for quick installation canbe delivered.
-
