DVB 168 S (GB)-19 050908
Enter the TP information, such as Frequency, Polarization (H / V), Symbol Rate, etc., and
then press the OK button. (Use the Numeric buttons to enter Frequency and Symbol Rate
information, and use the
To cancel the entries you have made, press the BACK button or the EXIT button.
Delete a Satellite
Use this to delete the selected satellite. However, you won't be able to delete any of the
satellites, which were set as factory defaults.
Use the CH UP and CH DOWN buttons to select the satellite you want to delete.
Press the button. A message appears, asking for your confirmation.
If you want to delete, press the OK button.
Otherwise, press the "Back" button or the EXIT button.
Modify Satellite TP Information
To modify the TP information, move to the satellite you want and then press the OK button.
The satellite TP information appears on the right side of the screen.
Select the TP information you want to modify and then press the OK button.
Modify the TP information, such as Frequency, Polarization, Symbol Rate, etc., and then
press the OK button. (Use the Numeric buttons to enter Frequency and Symbol Rate
information, and use the
After the changes are made, press the OK button to update the TP information.
To cancel the TP information modification process, press the BACK button.
Add Satellite TP Information
Move to the bottom of the screen where the satellite TP information is displayed and then
press the OK button.
Enter the TP information you want to add, such as Frequency, Polarization (H / V), Symbol
Rate, etc. (Use the Numeric buttons to enter Frequency and Symbol Rate information, and
use the buttons to enter H / V information).
Press the OK button to register the TP information.
To cancel the TP information addition process, press the BACK button.
Remove Satellite TP Information
Move to the TP information you want to delete.
Press the LEFT button. A message asking for your confirmation asking for your
confirmation appears.
If you want to delete, press the OK button. Otherwise, press the BACK button or the EXIT
button.

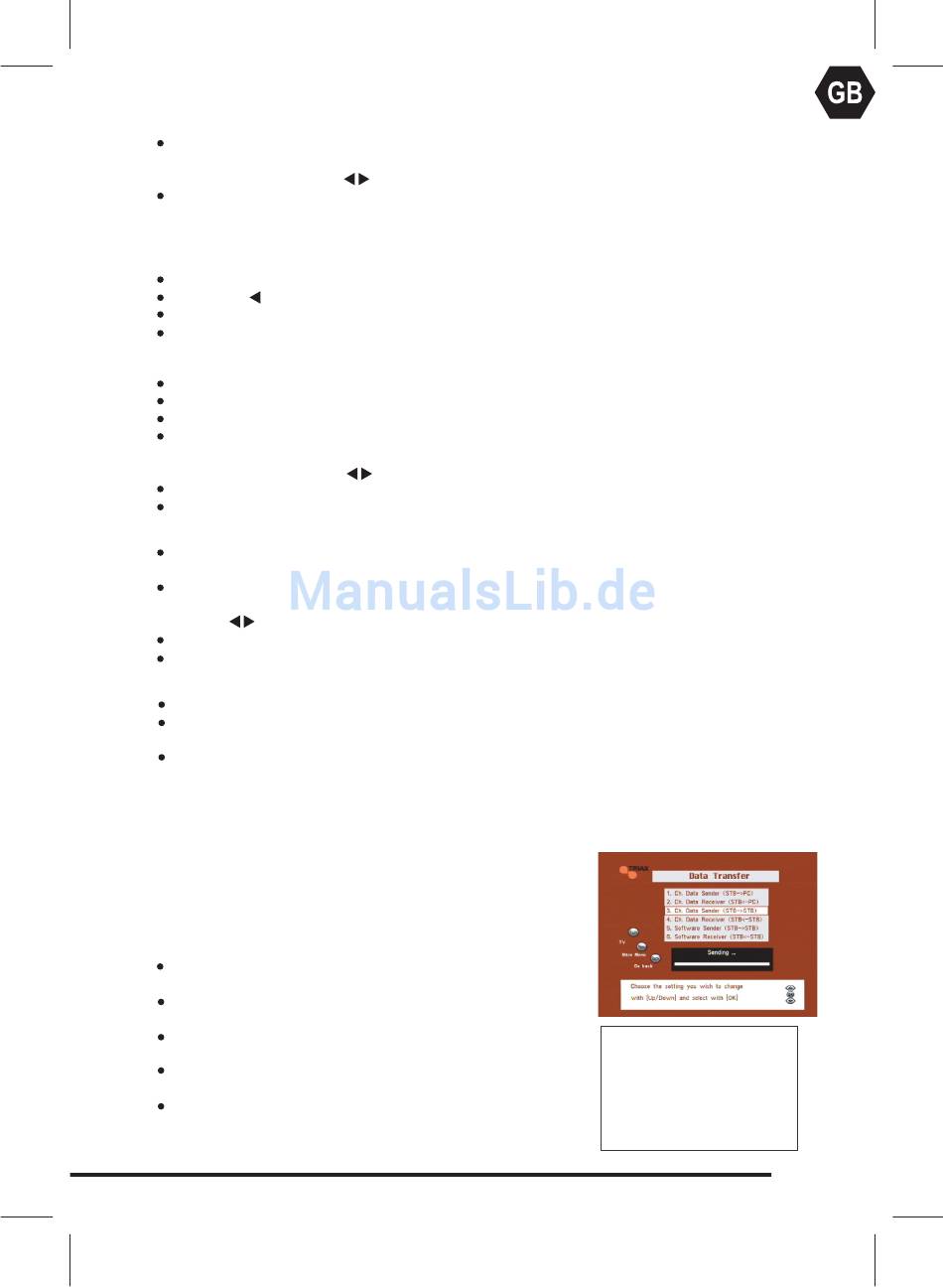

9.9 Data Transfer

This is intended to transfer the channel information on one
receiver to another receiver of the same model / version.
You can also transfer channel information from your PC to
a receiver.
Receiver to Receiver (STB - STB)
Use a RS232C cable (cross type, "0-modem") to connect
both receivers.
Go the Main Menu, select "Installation" and then select
menu option "Data Transfer".
Select "3.Ch.Data Sender (STB->STB)" for the receiver
that will send the channel data.
Select "4.Ch.Data Receiver (STB<-STB)" for the receiver
that will receive the channel data.
Press the OK button on both receivers to start the transfer.
buttons to enter H / V information).
buttons to enter H / V information).
www.triax.com
Cable Pin Configuration
(1) o --------- o (4)
(2) o --------- o (3)
(3) o --------- o (2)
(4) o --------- o (1)
(5) o --------- o (5)
