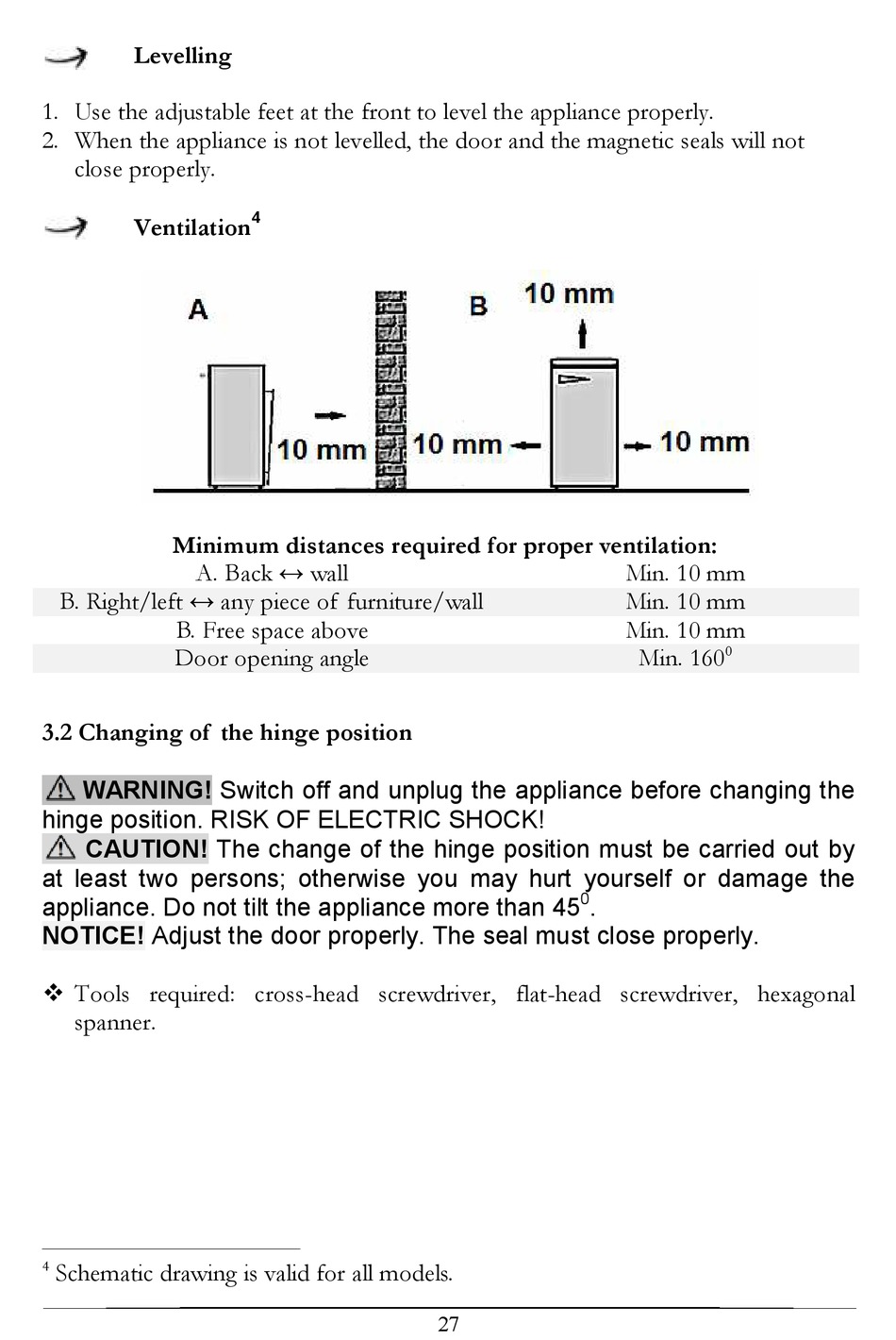

Levelling
1. Use the adjustable feet at the front to level the appliance properly.
2. When the appliance is not levelled, the door and the magnetic seals will not
close properly.
Ventilation
Minimum distances required for proper ventilation:
A. Back ↔ wall
B. Right/left ↔ any piece of furniture/wall
B. Free space above
Door opening angle

3.2 Changing of the hinge position

WARNING! Switch off and unplug the appliance before changing the
hinge position. RISK OF ELECTRIC SHOCK!
CAUTION! The change of the hinge position must be carried out by
at least two persons; otherwise you may hurt yourself or damage the
appliance. Do not tilt the appliance more than 45
NOTICE! Adjust the door properly. The seal must close properly.
 Tools required: cross-head screwdriver, flat-head screwdriver, hexagonal
spanner.
4
Schematic drawing is valid for all models.
4
0
.
27
Min. 10 mm
Min. 10 mm
Min. 10 mm
0
Min. 160
