To connect the video signal, connect using a 75 Ω/ohms video signal cable cord. Using an improper cable can
result in a drop in sound quality.
Video game
OUTPUT
R L OPTICAL
R L
L R
Video camera
OUTPUT
R L VIDEO OUT
R L
LINE OUT
VIDEO OUT

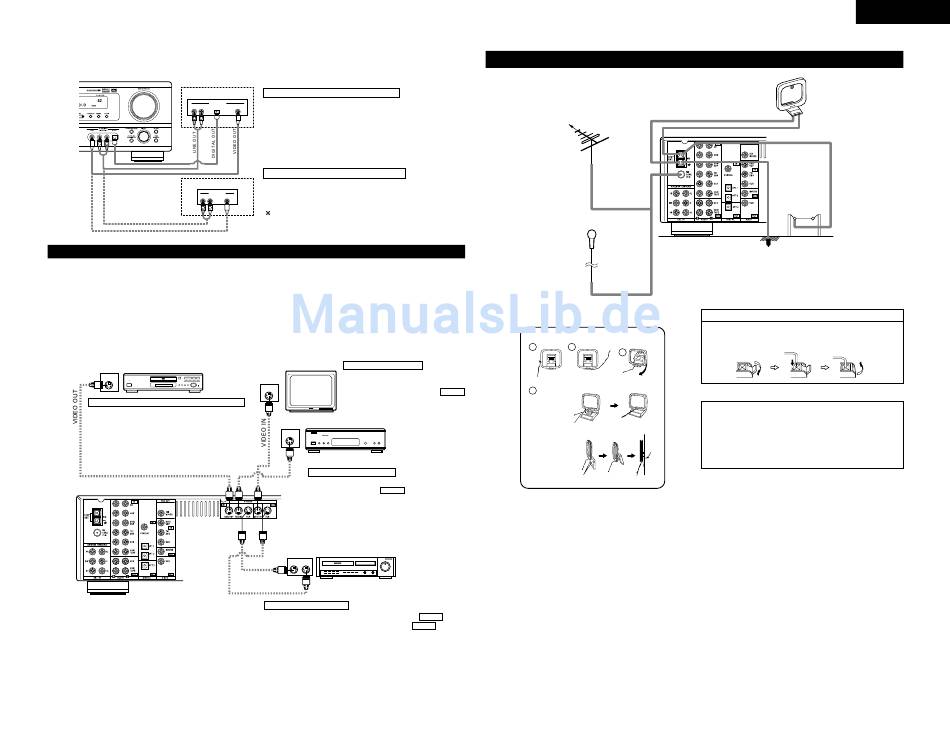

Connecting a video component equipped with S-Video jacks
• When making connections, also refer to the operating instructions of the other components.
• A note on the S input jacks
The input selectors for the S inputs and pin jack inputs work in conjunction with each other.
• Precaution when using S-jacks
This unit's S-jacks (input and output) and video pin jacks (input and output) have independent circuit structures, so that video
signals input from the S-jacks are only output from the S-jack outputs and video signals input from the pin jacks are only output
from the pin jack outputs.
When connecting this unit with equipment that is equipped with S-jacks, keep the above point in mind and make connections
according to the equipment's instruction manuals.
DVD player, VDP, etc.
S-VIDEO
B
OUT
Connecting a DVD player or video disc player (VDP)
DVD/VDP
• Connect the DVD player's or video disc player's S-
Video output jack to the S-VIDEO DVD/VDP IN jack
using an S-Video connection cord.
Connecting a Video game equipment
• Connect the Video game equipment's output jacks
VIDEO OUT
to this unit's V. AUX INPUT lacks.
Connecting a Video camera equipment
• Connect the Video camera equipment's output
jacks to this unit's V. AUX INPUT lacks.
The V. AUX terminal is covered with a cap.
Remove this cap in order to use the terminal. (See
page 3 for instructions on removing the cap.)
Monitor TV
Connecting a monitor TV
MONITOR OUT
• Connect the TV's or DBS tuner's S video
S-VIDEO
IN
input (S-VIDEO INPUT) to the
MONITOR OUT jack using a S jack
connection cord.
S-VIDEO
B
OUT
TV or satellite broadcast tuner
Connecting a TV/DBS tuner
VIDEO OUT • Connect the TV's or DBS tuner's S video output jack
(S-VIDEO OUTPUT) to the S-VIDEO TV/DBS IN jack
using an S jack connection cord.
Video deck
S-VIDEO
OUT IN
VIDEO OUT
VIDEO IN
Connecting the video decks
• Connect the video deck's S output jack (S-OUT) to the
jack and the video deck's S input jack (S-IN) to the
jack using S jack connection cords.
Connecting the antenna terminals
DIRECTION OF
BROADCASTING
STATION
75 Ω/ohms
COAXIAL
CABLE
FM INDOOR ANTENNA
(An Accessory)
AM loop antenna assembly
1 2
Remove the vinyl tie
and take out the
connection line.
4
S-VIDEO
a. With the antenna
on top any stable
surface.
Mount
b. With the antenna
attached to a wall.
Installation hole Mount on wall, etc.
S-VIDEO VCR IN
S-VIDEO VCR OUT
AM LOOP
ANTENNA
(An Accessory)
FM ANTENNA
GROUND
Connection of AM antennas
1. Push the lever.
Connect to the AM
antenna terminals.
3
Bend in the reverse
direction.
NOTES:
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not
disconnect the AM loop antenna.
• Make sure AM loop antenna lead terminals do
not touch metal parts of the panel.
ENGLISH
AM OUTDOOR
ANTENNA
2. Insert the 3. Return the lever.
conductor.
