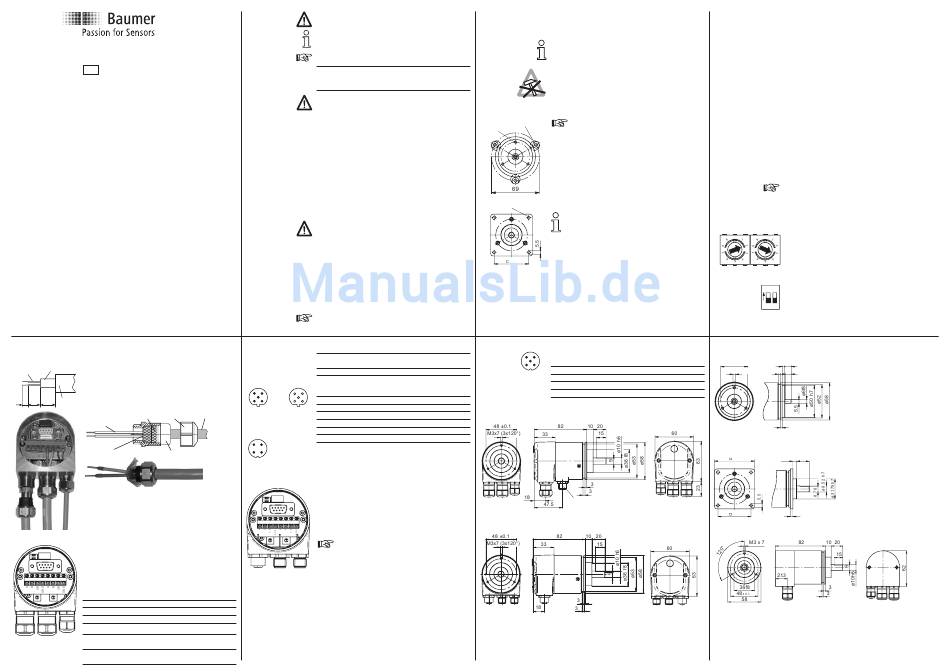

Baumer GBAMW Montageanleitung Seite 2

GB Assembly Instructions
GBAMW, GBLMW, GBMMW
GCAMW, GCMMW
GXAMW, GXLMW, GXMMW
GEMMW
Absolute Encoder – Profibus-DP
9
Assignment – cable gland (bus cover)
- Unscrew cap nut of cable gland. Push cap nut and seal
insertion onto the cable coat.
Screen
- Strip isolation of cable coat and cores and cut shielding
Wire
foil, if any (picture).
- Bend the braided shield for about 90°.
- Push seal insertion to the braided shield. Insert seal
and cable flush into the cable gland. Secure by carefully
5 18 12 Cable
tightening the cap nut.
screen cap nut
wire
screen film seal
- Terminals of the same designation are internally con-
nected to each other.
- Use cable gland no. 3 for supply only. Cable glands no.
1 and 2 are for optional use as bus lines. Consider the
permitted cable cross-section.
1 2 3
- Use the shortest way to insert the cores into the ter-
minals and mind the maximum core cross-section. Use
core tip sleeves with flexible cores.
- There must not be any crossing of data lines with lines
for power supply.
- Any cable gland not used has to be sealed by blind
plug (included into delivery). The cap nut must be firmly
tightened.
Core cross-section
Single wire (rigid) Max. 1.5 mm 2
Fine wire (flexible) Max. 1.0 mm
2
Fine wire (flexible) With ferrule max. 0.75 mm
Cable diameter
Cable gland 1, 2 ø8...10 mm (-40...+85 °C)
ø5...9 mm (-25...+85 °C)
Cable gland 3 ø4.5...6 mm (-40...+85 °C)
13
ø3...6 mm (-25...+85 °C)
Danger
Warnings of possible danger.
General instructions
Information on appropriate product handling.
General remarks
Additional information
The assembly instruction is supplementary to further
existing documentation (e.g. catalog, data sheet, manual).
It is imperative to read the manual carefully prior to star-
ting the device.
9-16 Appropriate use
- The encoder is a precision measuring device. It is ex-
plicitly designed for registration of angular positions
and revolutions as well as evaluation and supply of
measuring values as electric output signals for the sub-
sequently connected device. The encoder must not be
used for any other purpose.
Start up
- Installation and assembly of the encoder only by electri-
cally skilled and qualified personnel.
- Consider also the operation manual of the machine
manufacturer.
Safety instructions
- All electrical connections are to be revised prior to star-
ting the system.
- Incorrect assembly and electrical connections or any
other inappropriate work at encoder and system may
lead to malfunction or failure of the encoder.
- Any risk of personal injury, damage of the system or
company equipment due to failure or malfunction of the
encoder has to be eliminated by corresponding safety
measures.
- Do not operate encoder beyond the limit values stated
in the data sheet.
Any disregard may lead to malfunctions, material damage
and personal injury.
10
Locking torque
Terminal strip/screwing terminal max. 0.4 Nm
(recommended locking torque 0.3 Nm)
Connection bus cover max. 0.9 Nm
Terminal assignment (bus cover)
5 5
5-pin connector (data line)
3 3 4
4
Pin 2 A Negative serial data line
Pin 4 B Positive serial data line
2 2 1
1
M12 connector (male/
cable
female) for serial data
4-pin connector (supply voltage)
line
Pin 1 UB Supply voltage 10...30 VDC
Pin 3 GND Ground connection relating to UB
4 3
Terminals of the same significance are internally con-
nected and identical in their functions. Max. load on the
1 2
M12 connector (male) internal terminal connections UB-UB and GND-GND is
for supply voltage 1 A each.
Assignment – M12 connector
Follow also the instructions of the respective supplier.
- Press mating connector softly into the plug.
- Turn mating connector carefully until the code mark is
interlocking the corresponding space provided by the
plug. Insert bushing completely. Tighten the nut as far
as possible.
An optimized connection between encoder case
and the braided shield of the connection cable is
only achieved by the braided shield being placed
generously onto the connector and the nut being
secured firmly.
- Plug the bus cover carefully onto the D-SUB plug of the
basic encoder, then push it over the rubber seal. Avoid
the case getting wedged. The bus cover has to fit tightly
the basic encoder.
- Tighten both fixing screws firmly and conformable.
2
- An optimized connection between encoder case and
the braiding shield of the supply cable is only achieved
by a complete and close fit of the bus cover onto the
basic encoder (interlock).
14
Disposal
Encoder components are to be disposed of according to
the regulations prevailing in the respective country.
Transport and storing
- In original packing only.
- Do not drop or expose encoder to major shocks.
Assembly
- Avoid punches or shocks on case and shaft.
- Avoid case distortion.
- Do not use any rigid links between encoder shaft and
drive shaft.
- Do not open or modify encoder in any mechanical way.
Shaft, bearing, glass disc or electronic componen-
Eccentric
Fixing bore
ts might be damaged and a secure operation is no
fixing
longer guaranteed.
Mechanical assembly
- Mount encoder using three screws using the three
fixing bores of the flange. Consider the depth and dia-
meter of the thread.
- Alternative mounting in any angular position is possible
by means of three eccentric fixings (accessories).
- Use appropriate coupling to link drive shaft and encoder
shaft. For appropriate links please refer to accessories.
Fixing bore
The ends of the shafts must not touch each
other. Any displacements due to temperature or
mechanical tolerances have to be equalized by the
coupling. Mind the maximum permitted axial or
radial shaft load. Tighten fixing screws firmly.
52.4
11
Terminal assignment for models with additional
5
incremental connector
4 3
Pin 1 A
Pin 2 B
1 2
Pin 3 A inv.
Pin 4 B inv.
Pin 5 GND
Dimensions
clamping flange
Model with additional
incremental connector
clamping flange and M12 connector
15
Electrical installation
- Do not modify encoder in any electrical way and carry
out any wiring work under power supply.
- Any electrical connection and plugging-on whilst under
power supply is not permitted.
- A separate encoder supply has to be provided with con-
sumers with high interference emission.
- Installation of the whole system has to be according
to EMC standards. Installation environment as well as
wiring have an impact on the encoder's EMC. Encoder
and supplying lines are to be in separated locations or
remote from lines with high interference emission (fre-
quency transformers, protections, etc.).
- Encoder case and supply cable have to be completely
screened.
- Ground (PE) encoder by using screened cables. The brai-
ded shield has to be connected to cable gland or plug.
Grounding (PE) on both sides is recommended.Ground
the case by the mechanical assembly, if latter is electri-
cally isolated a second connection has to be provided.
Ground cable screen by the subsequently connected
devices. In case of ground loop problems at least groun-
ding on one side is imperative.
Any disregard may lead to malfunctions, material damage
and personal injury.
Electrical connection
The bus cover is to be stored and transported whilst in
the ESD bag only. The bus cover has to fit the case tightly
and has to be firmly secured by screws.
- Unscrew both fixing screws of the bus cover.
0 0
- Loosen bus cover carefully and remove it in axial direc-
tion.
- Adjust participant address at the two decimal rotary
switches. The participant's address for example 23.
- For the last participant the terminators are to be swit-
ched "ON" by means of the 2-pin Dip switch (default
OFF).
ON
ON = final user
OFF = user X
1 2
12
Dimensions
synchro flange
42 ±0.1 4 10
M4x7 (3x120°) 3 9
3
square flange
93 6 20
63.5
52.4 4
GEMMW
