Magnify
User manual / Bedienungsanleitung
Magnify

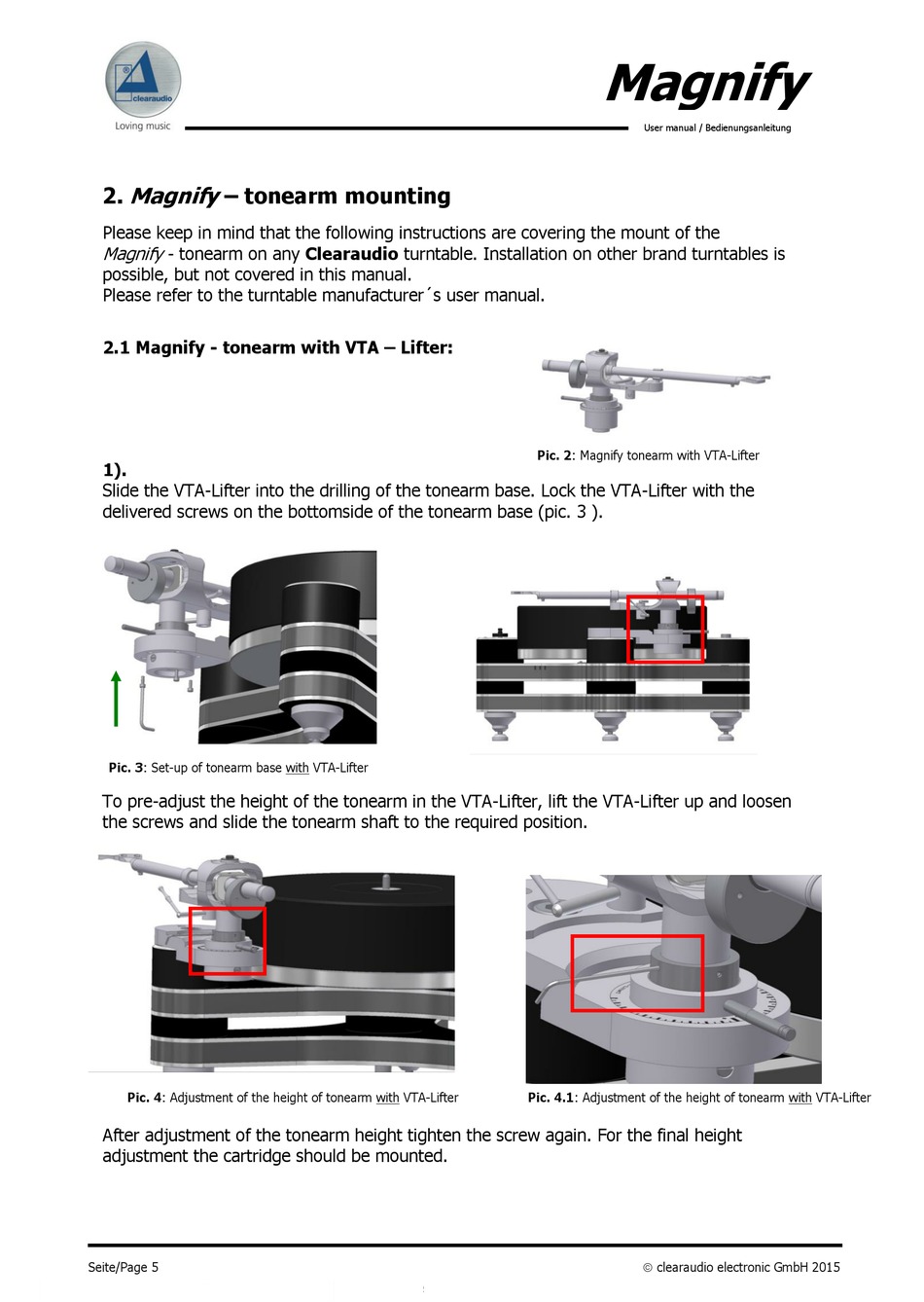

2. – tonearm mounting
Please keep in mind that the following instructions are covering the mount of the
Magnify
- tonearm on any Clearaudio turntable. Installation on other brand turntables is
possible, but not covered in this manual.
Please refer to the turntable manufacturer´s user manual.
2.1 Magnify - tonearm with VTA – Lifter:
Pic. 2: Magnify tonearm with VTA-Lifter
1).
Slide the VTA-Lifter into the drilling of the tonearm base. Lock the VTA-Lifter with the
delivered screws on the bottomside of the tonearm base (pic. 3 ).
Pic. 3: Set-up of tonearm base with VTA-Lifter
To pre-adjust the height of the tonearm in the VTA-Lifter, lift the VTA-Lifter up and loosen
the screws and slide the tonearm shaft to the required position.
Pic. 4: Adjustment of the height of tonearm with VTA-Lifter Pic. 4.1: Adjustment of the height of tonearm with VTA-Lifter
After adjustment of the tonearm height tighten the screw again. For the final height
adjustment the cartridge should be mounted.
Seite/Page 5  clearaudio electronic GmbH 2015
