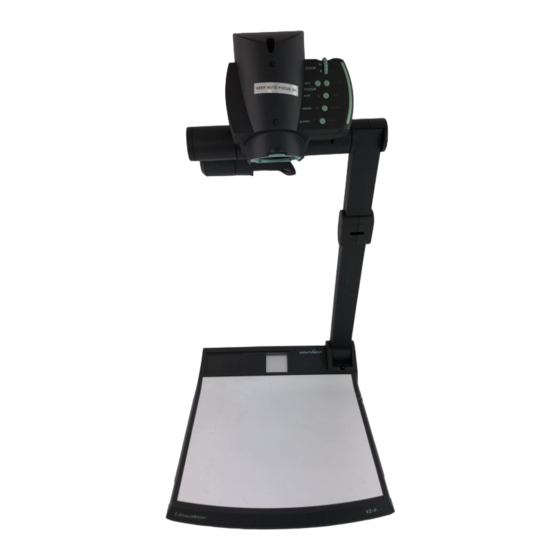

WolfVision VZ-9 Montageanleitung

1
• Before mounting the Anti-glare Shield read the instruction manual and these instructions carefully.
• Before starting, switch off the unit and disconnect mains.
• Wait unitl the lamp has cooled before mounting the Anti-glare Shield. A hot lamp can lead to burns.
Mounting the Anti-glare Shield:
1) Disconnect the unit from mains and allow the unit to cool down.

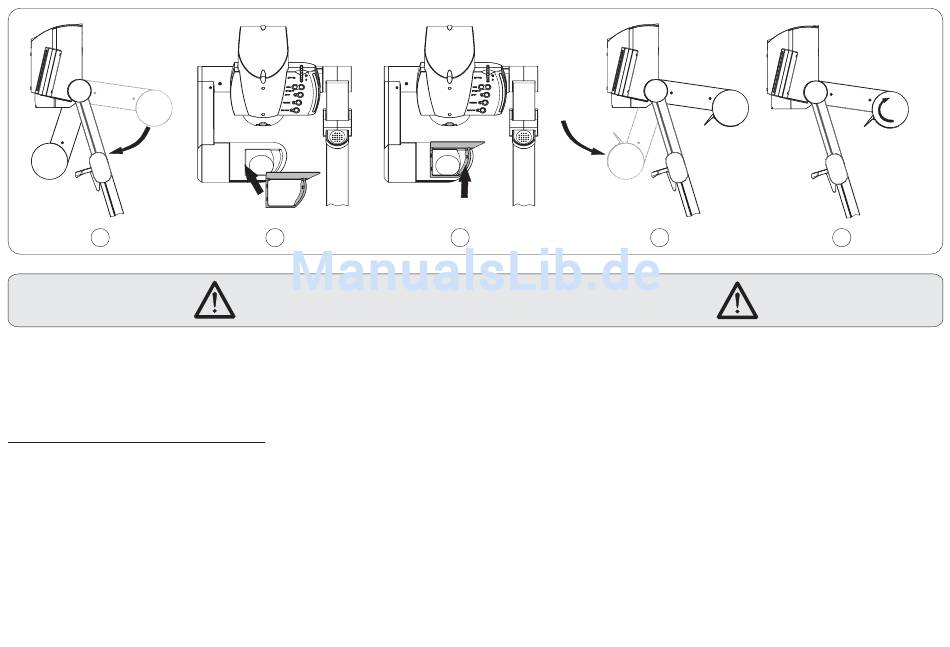

2) Gently turn the lamp assembly down (figure 1).
3) Place the Anti-glare Shield on the left side (figure 2) and snap-in on the right side (figure 3).
4) Turn lamp assembly into working position (click-stop position) (figure 4).
5) Check if lamp cover sits firmly by turning the cover in in the direction of the arrow (figure 5).
6) Reconnect the Visualizer to mains.
Note: The Anti-glare Shield is free of charge for all VZ-9 with serial number 091001 to 093296.
From serial number 093297 on in series ex works.
