Post-OP evolution
D D
DE
Taking Measurements
Circumference:
Both length and circumference are
adjusted individually, on the patient.
Side:
The orthosis can be worn on the left
leg or the right leg.
Scope of Delivery
Post-OP evolution Orthosis, including
pads, straps and removable telescopic
uprights, user manual.
Application/Adjustment

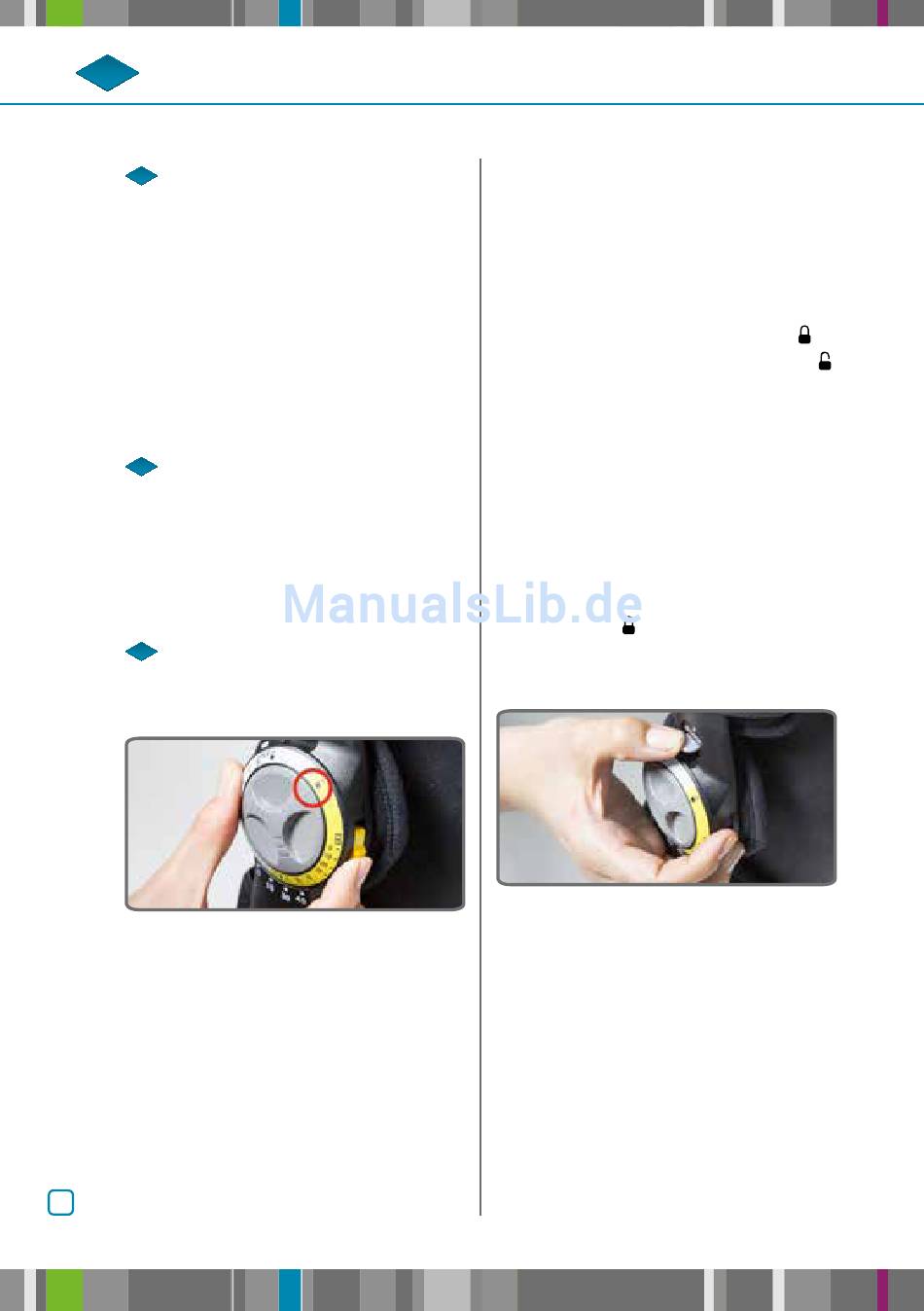

1. Adjusting the Joints
1
Before putting the orthosis on the
patient, adjust the extension and
flexion limitation of the hinges
according to the doctor's orders.
Possible Settings:
Flexion can be gradually limited within a ran-
ge of 0° to 120°, extension from 0° to 90°.
The orthosis can be locked at 0°, 15°,
10
30° and 45°.
User Manual
Adjusting the Flexion and
Extension Limitation
To adjust flexion and extension, first
turn the center knob on the joint from
the symbol showing a „closed lock "
to the symbol showing an „open lock "
(fig. 1). The white button on the side of
the joint can be used to set the joint to
the maximum flexion angle. The yellow
button on the side of the joint can be
used to set the joint to the maximum
extension angle (fig. 1). Once you have
adjusted the joint settings as desired,
secure the settings by turning the cen-
ter knob back to the symbol showing a
„closed lock ".
Setting a Fixed Flexion Angle
2
The orthosis can be locked at 0°, 15°,
30° and 45°. The knee joint is then
secured in the desired position. If
necessary, open the locking button
marked "Q-Lock". Bend the joint of
the orthosis and set it to the desired
flexion angle at which you wish to lock
the joint, within the range of 0° to 45°.
The arrow on the yellow section of the
labelling on the joint has to point to 0°,
15°, 30° or 45°. Now close the locking
button marked "Q-Lock" again (fig. 2).
