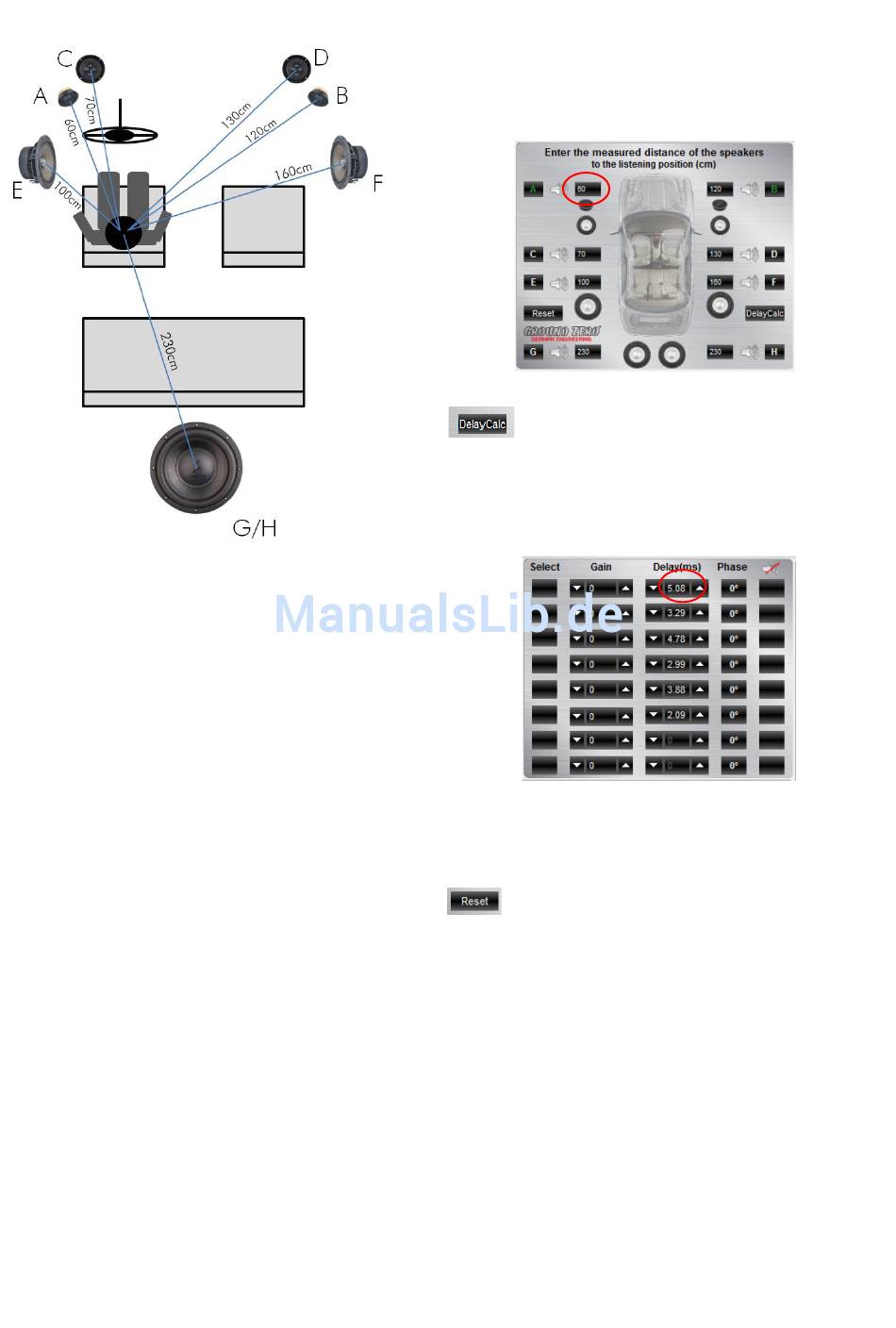

Application example (time alignment)

All measured distances (cm) must be added to the
graphic.
Clicking the button will cause the calculation of the
respective time alignment and transfer the data to the
Delay(ms) list.
Further adjustments can be edited to either the time
alignment list or to the distance window.
The Reset button will delete all settings of the time
alignment. Other DSP settings remain.
- 15 -
