Ground Zero GZDSP 6-8X Anleitung Seite 30

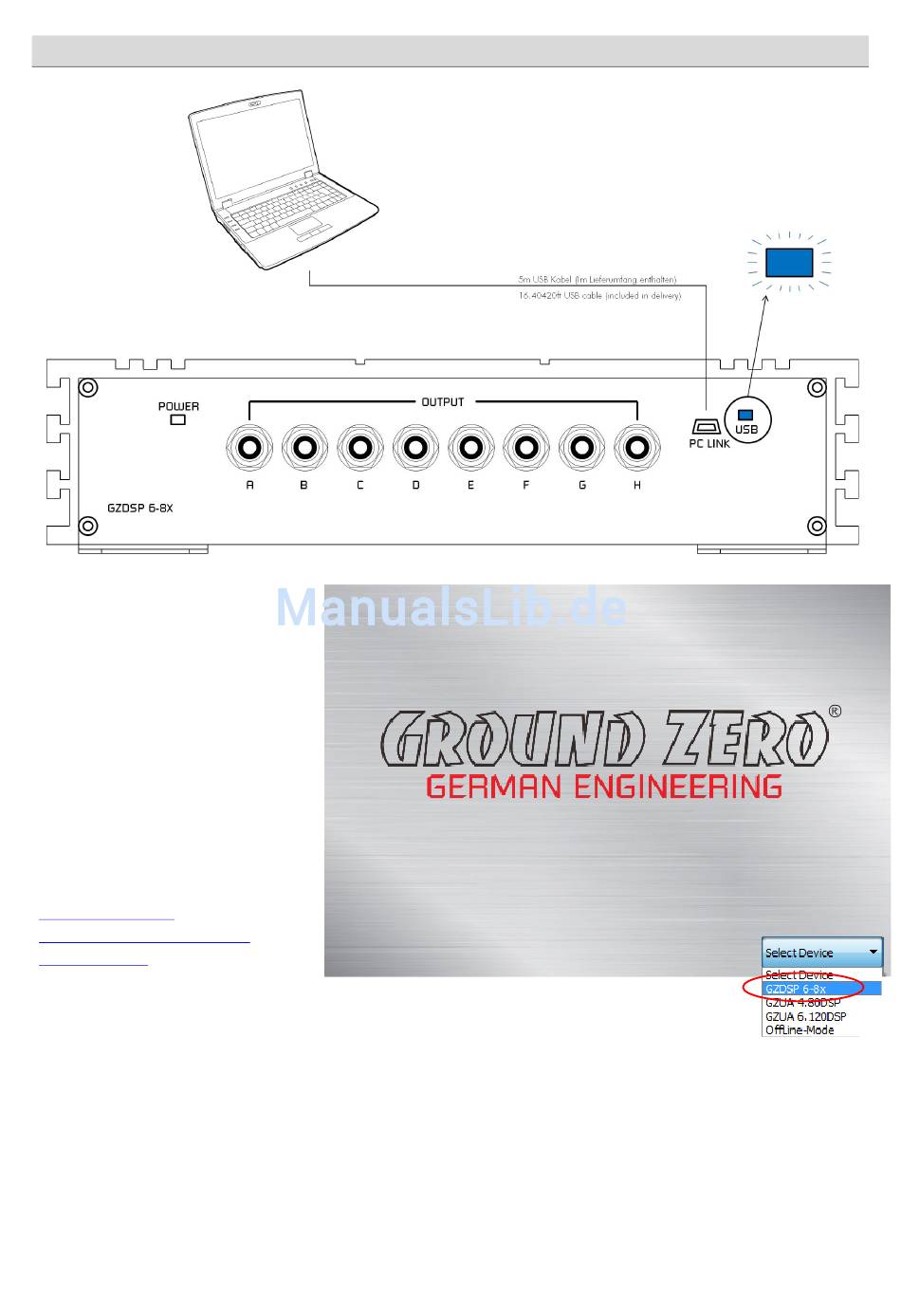

In order to configure the DSP,
the GZDSP 6-8X must be connected
to a PC with the DSP software installed
using the included USB wire.
The head unit and the DSP unit must
be turned on before opening the
software.
The software starts by double-click the
desktop icon.
The start screen appears and
GZDSP 6-8X should be selected as
device (Select Device).
The latest software version can be
downloaded from this page:
http://ground-zero-
audio.com/en/download/dsp-
softwareen.html
Demo Mode (Offline Mode):
It´s possible to use the software in offline mode without having the GZDSP 6-8X connected to the PC to become
familiar with most of the features and to create sample setups.
Important Note:
We don´t recommend usinge any passive extension cord with the supplied USB wire, as proper function can´t be ensured.
Connecting the DSP to the PC
