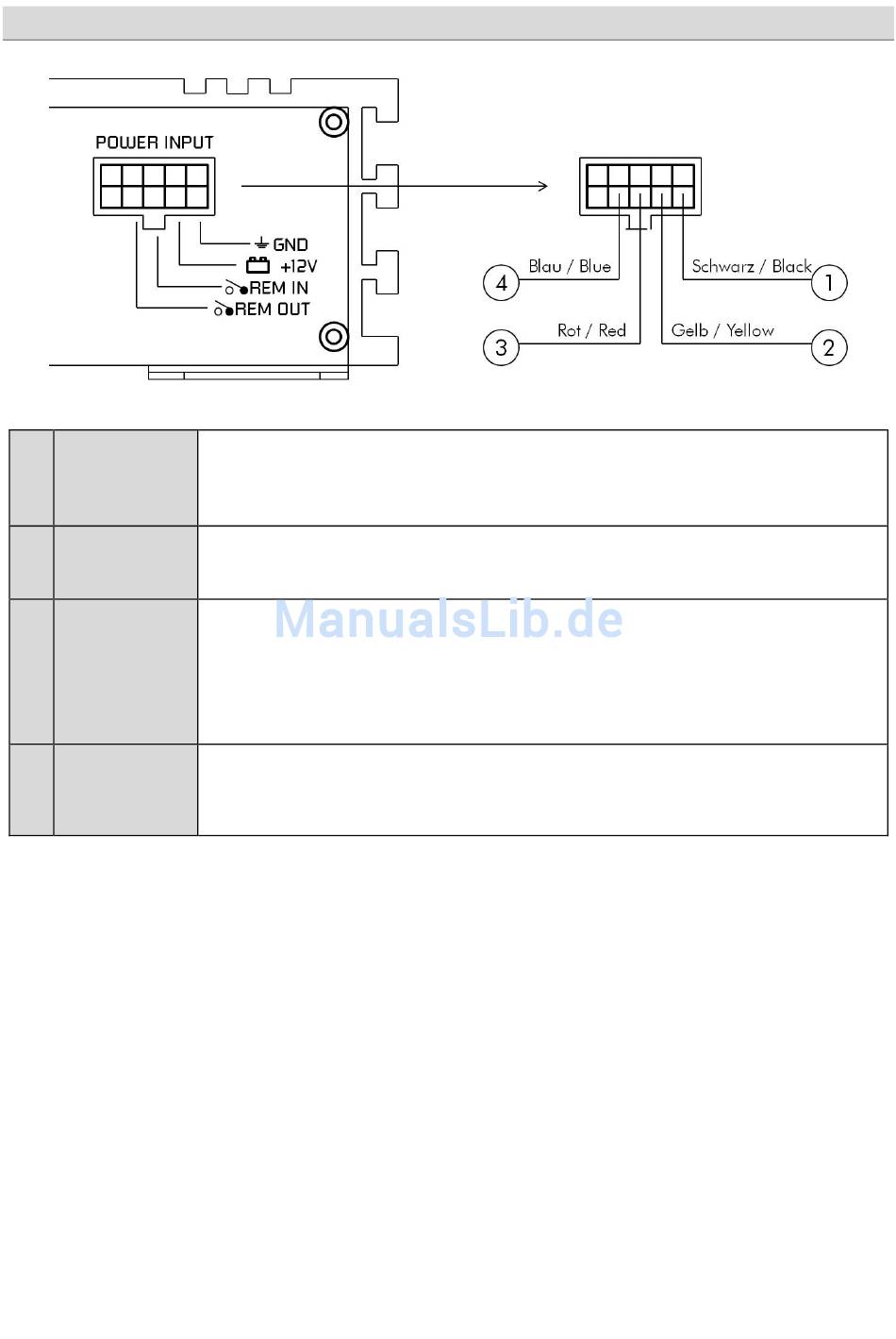

Power Input - Ground Zero GZDSP 6-8X Anleitung

1 GND
2 + 12 V
3 REM IN
4 REM OUT

POWER INPUT

Connect the unit to a suitable ground terminal on the vehicles body. The ground wire should be as short
as possible and be mounted to an unvarnished metal part. Ensure that this part has an unlimited
electrical connection to the ground pole of the battery (negative earth). Use adequate wiring (not less
than 1.0 mm² / 17 AWG). The ground wire (-) and power wire (+) should have an identical diameter.
Connect the unit to the positive pole (+) of the vehicles battery. Use adequate wiring gauge (not less
than 1.0 mm² / 17 AWG) with an additional fuse holder (2 A fuse) not further than 30 cm / 12" away
from the terminal of the battery. Plug in the fuse at the end of the installation.
Remote turn-on signal. Connect the head-unit´s remote out wire (REM) or the electric if the RCA input
(MAIN) or the optical connector (TOSLINK) is used. Use adequate wiring gauge (not less than 0.5 mm² /
20 AWG
Please note: Auto Turn-On (activates the DSP unit)
Using the high-level input, the DSP unit turns on automatically when DC-On voltage is recognized. In
this case, it´s not necessary to connect a remote wire. Some head-units may not be capable to send the
DC-On signal. In that case the remote wire connection is necessary.
To be used with additional system equipment like amplifiers. If connected to the amplifiers remote input
terminal, the amplifier turns on or off together with the DSP unit. Use adequate wiring gauge (not less
than 0.5 mm² / 20 AW). The current should not exceed 130 mA - higher demands require the
installation of a relay.
- 5 -
