Handling the device
4.
Handling
4.1
Control and display panel
4.1.1

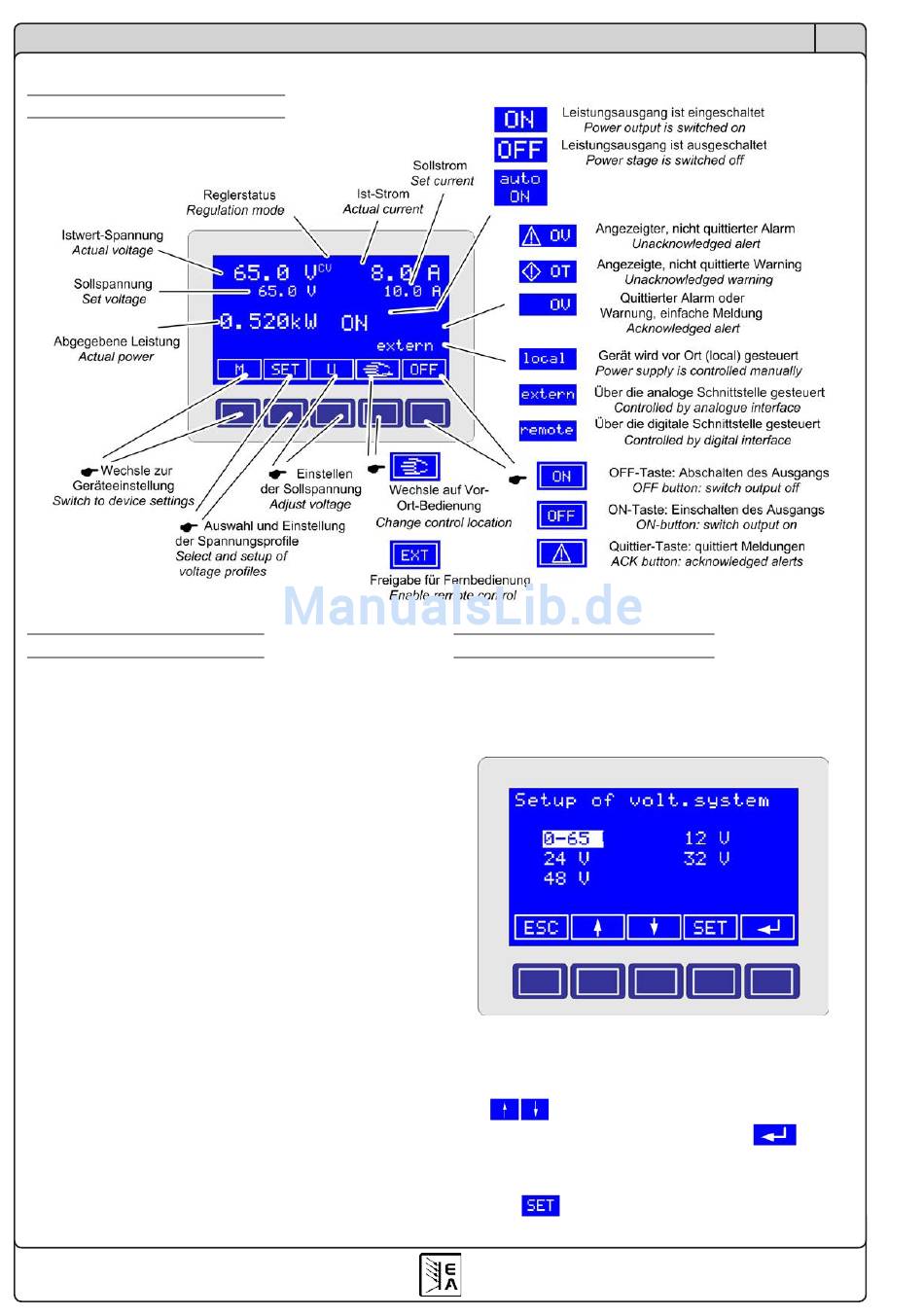

Layout of the display
The display and control panel is seperated into areas
for set values, actual values, the output state, de-
vice status, the button assignments and the buttons
themselves.
The button assigment strip changes interactively
according to the user's selection and is indicated by
text or symbols which are dedicated to the buttons
beneath.
The upper left half of the display shows output volt-
age relevant values in big font. Directly beneath is
the related set value. While the output is off, the text
„CV" right next to the voltage actual value indicates
constant voltage operation.
The upper right half of the display shows output cur-
rent relevant values in big font. Directly beneath is
the related set value. While the output is off, the text
„CC" right next to the current actual value indicates
constant current operation.
Beneath the voltage value area the actual output pow-
er is indicated. There is no adjustable power set value.
The output state, status (alarms, warnings) and the
control location are indicated in the lower right area
of the display.
24
Date: 09-29-2014
4.2
Selecting a voltage profile
Note: Switching voltage profiles is only possible during
output = off.
The voltage profile selection menu is accessed by the
button „SET" in the main display.
Note: Only the first voltage profile (here: 0..65V) offers
© 2006, Elektro-Automatik GmbH & Co. KG
full output value adjustment. The other profiles allow
Irrtümer und Änderungen vorbehalten
adjustment, but for the voltage only within certain limit.
The
buttons are used to select the desired
profile, which is then submitted with the
The display will return to normal and the output values
are changed to the ones as adjusted in the profile.
If button
is pushed instead, the selected profile
is opened for adjustment.
EN
button.
Instruction Manual
PSI 800 R Series
