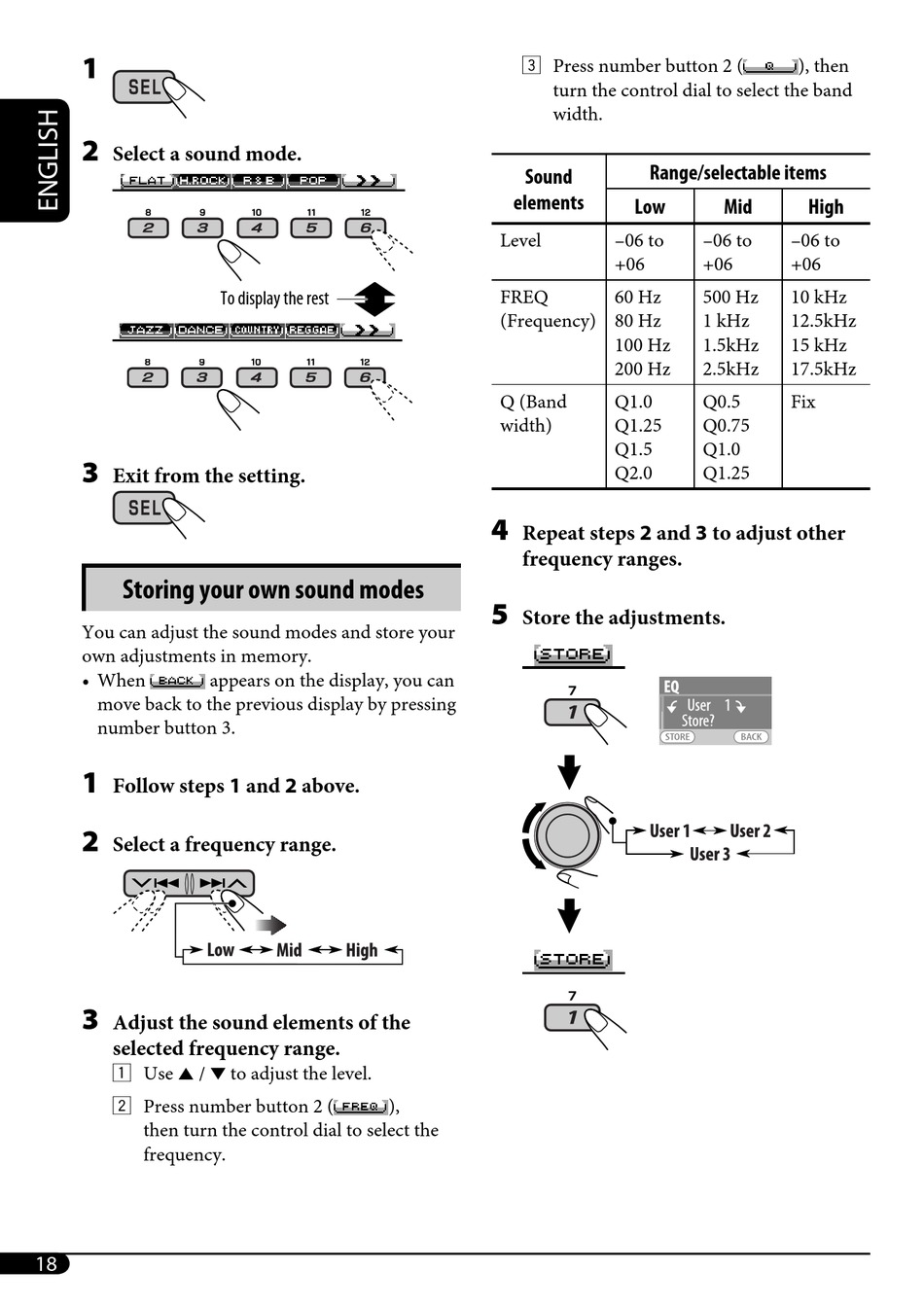

JVC KD-G821 Bedienungsanleitung Seite 18

1
2
Select a sound mode.
3
Exit from the setting.
Storing your own sound modes
You can adjust the sound modes and store your
own adjustments in memory.
• When appears on the display, you can
move back to the previous display by pressing
number button 3.
1
Follow steps 1 and 2 above.
2
Select a frequency range.
3
Adjust the sound elements of the
selected frequency range.
1 Use 5 / ∞ to adjust the level.
2 Press number button 2 (
then turn the control dial to select the
frequency.
18
To display the rest
),
3 Press number button 2 (
turn the control dial to select the band
width.
Range/selectable items
Sound
elements
Low
Level –06 to
+06
FREQ 60 Hz
(Frequency) 80 Hz
100 Hz
200 Hz
Q (Band Q1.0
width) Q1.25
Q1.5
Q2.0
4
Repeat steps 2 and 3 to adjust other
frequency ranges.
5
Store the adjustments.
), then
Mid High
–06 to –06 to
+06 +06
500 Hz 10 kHz
1 kHz 12.5kHz
1.5kHz 15 kHz
2.5kHz 17.5kHz
Q0.5 Fix
Q0.75
Q1.0
Q1.25
