Example:
Failure of the luminaire in the
ZB/US 96-01 panel, address 3
in circuit 1 of the SKU3/BGT2.
18
Information about Information about Information about
Information about Information about
6.1.2
panels panels panels panels panels

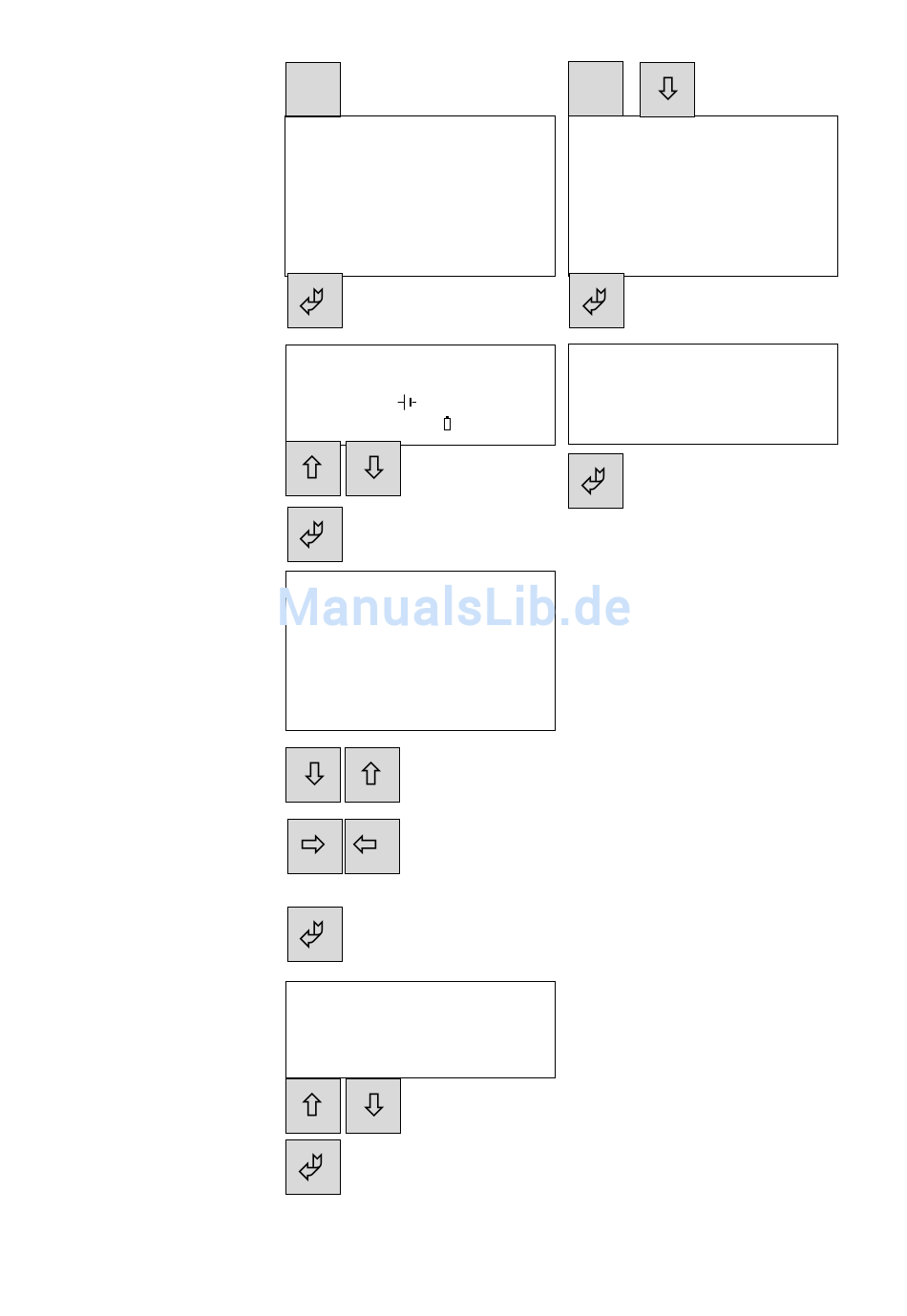

M e n u
Info Device
Manual Test
Block & Reset Alarms
Controller Setup
Logbook
Selects the information
mode
ZB/US96 01↑↓
Operation
U=243,0V I=+ 0,5A
T=+ 28,5°C = 95%
Selects the
panel No.
indicates the time of the
last duration test.
ZB/US96 01,SKU1/1→←↵
BGT1:_ _ _ _ _ _ _ _
BGT2: X
BGT3:
BGT4:_ _ _ _ _ _ _ _
BGT5:_ _ _ _ _ _ _ _
= SKU inst. X= Fail
selects rack (1-
5).
selects circuit
change-over
module (SKU)
within the rack.
inquires information
about circuit change-
over module (SKU)
from the system.
Circuit1↑↓
- - x - - - - - - - - - - - - - - - - -
. . . . 5 . . . .10. . . .15. . . . 20
Selects circuit
No. (1-4) of the
SKU
Enter jumps back to
the SKU selection .

Manual test runs

Manual test runs Manual test runs
Manual test runs Manual test runs
6.1.3
M e n u
<
Info Device
Manual Test
Block & Reset Alarms
Controller Setup
Logbook
End
Selects the test mode
Start Function test <
↵
Start Duration test
Cancel Duration test
initiates the function
test, duration test or
aborts the duration test
on all panels connected.
During the test, the LED and
the display indicate the test
run. After termination,
possible sum failures will
immediately be indicated either
in the display or by a flashing
LED. The type of failures can
be shown following the steps
described in 6.1.2.
<
End
Return
