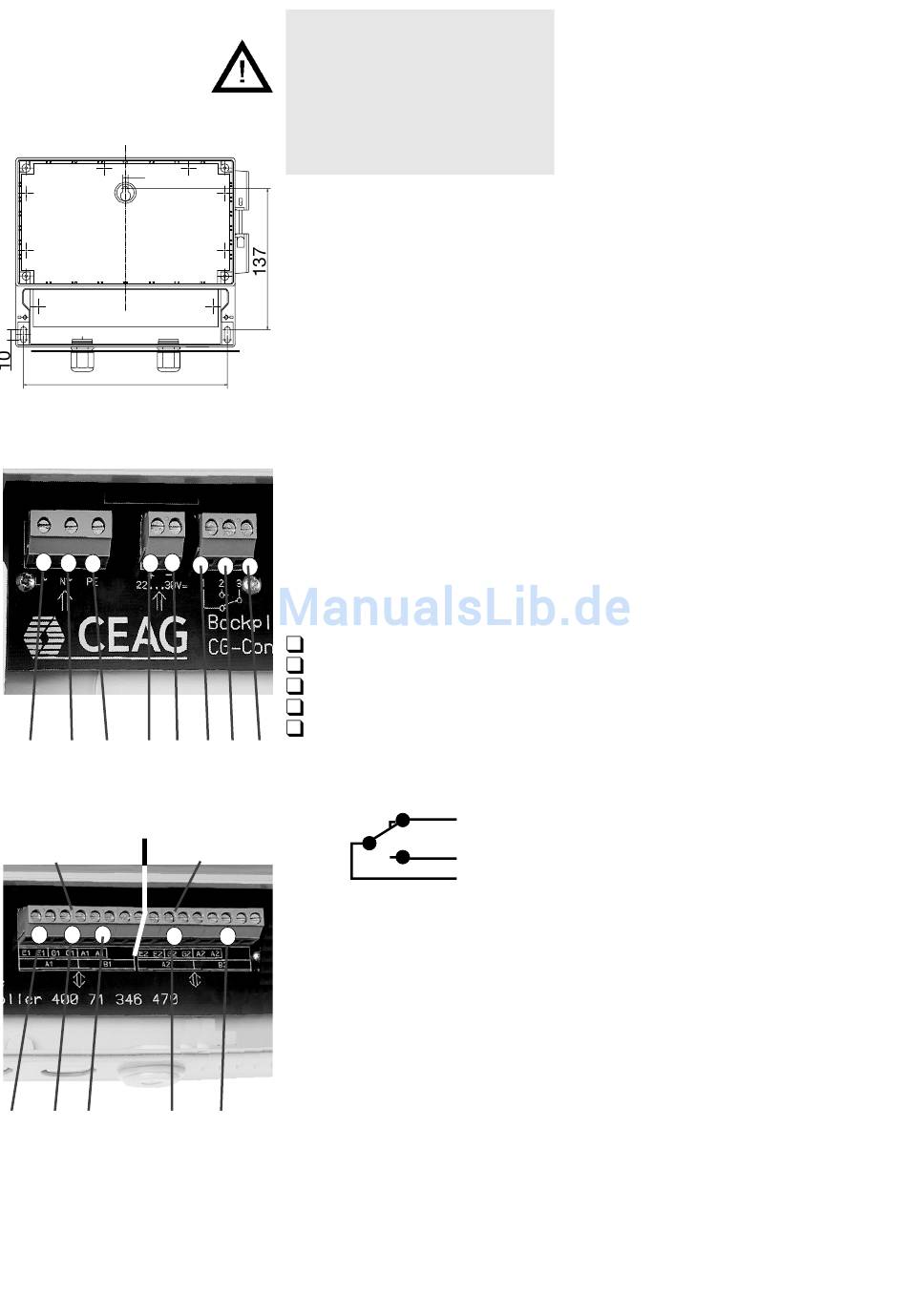

Fig. 1: Fastening points
L N PE +
230 V AC 24 V DC relay
Fig. 2: Mains connection
Slot 1
E(1) G(1) A(1) A(2) B(2)
EGA 1-card LON-Bus (2)
Bild 3: Bus connection
14
5. Installation 5. Installation 5. Installation
5. Installation 5. Installation
! Observe the national regula-
tions and the equipment safety
law applicable to the installation
and operation of electrical
equipment as well as the gen-
eral rules of engineering!
5.1 Mounting 5.1 Mounting 5.1 Mounting
5.1 Mounting 5.1 Mounting
Drill the holes acc. to fig. 1. Fix
the device with suitable screws.
Fasten the screws only
fingertight!

5.2 Electrical connection

Mains connection
The facility has been designed
for operation on 230 V AC or
24 V DC. The connecting leads
are to be connected acc. to
fig.2.
Potentialfree contact
The controller provides a freely
programmable switching con-
tact (1 - 2 - 3, fig. 2). The fol-
lowing functions can be as-
signed:
Charge failure
Battery operation
Mains failure
Insulation fault
Luminaire failure
- 1 2 3
All events can be programmed
to attract the relay:
Slot 2
Bus lines Bus lines Bus lines Bus lines Bus lines
The bus line (EGA) from the
connected CEAG ZB 96 panels
is to be connected to the termi-
nals E - G - A (fig. 3). In case a
LON interface is installed in the
second slot, the bus lines will
have to be connected to termi-
nals A2-B2 acc. to fig. 3. Each
4 terminals per input are avail-
able.
