6 Maintenance plan

Tyco Electronics recommends that operators of the tool are made aware of and responsible for the
following steps of daily maintenance:
•
Remove dust, moisture, and any other contaminants from the tool with a clean, soft brush, or a
clean, soft, lint-free cloth. Do NOT use hard or abrasive objects that could damage the tool.
•
Make sure that the pivot pins are in place and that they are secured with the retaining plates.
•
All pins, pivot points, and bearing surfaces should be protected with a thin coat of any good SAE
No. 20 motor oil. Do not oil excessively.
•
When the tool is not in use, keep handles closed to prevent objects from being lodged in the
crimping jaws. Store the tool in a clean and dry area.
Regular inspections of the tool should be performed by quality control personnel.

7 Replacement of worn parts

The spare parts of the repair kit P/N 539 635-2 for the ERGOCRIMP Hand Tool P/N 539 635-1 are listed
in the following table. Instruction Sheet 411-18087; PN 5-744001-2.
1. Die retaining screw M4x11 ISO 7380
2. Die retaining screw M4x10 ISO 7380
3. Adjustment wheel
4. Retaining plate 4 DIN 6799
5. Screwed stop pin M3x5 DIN 427
6. Tension spring DIN 17223 C
7. Screw M4x6 ISO 7380

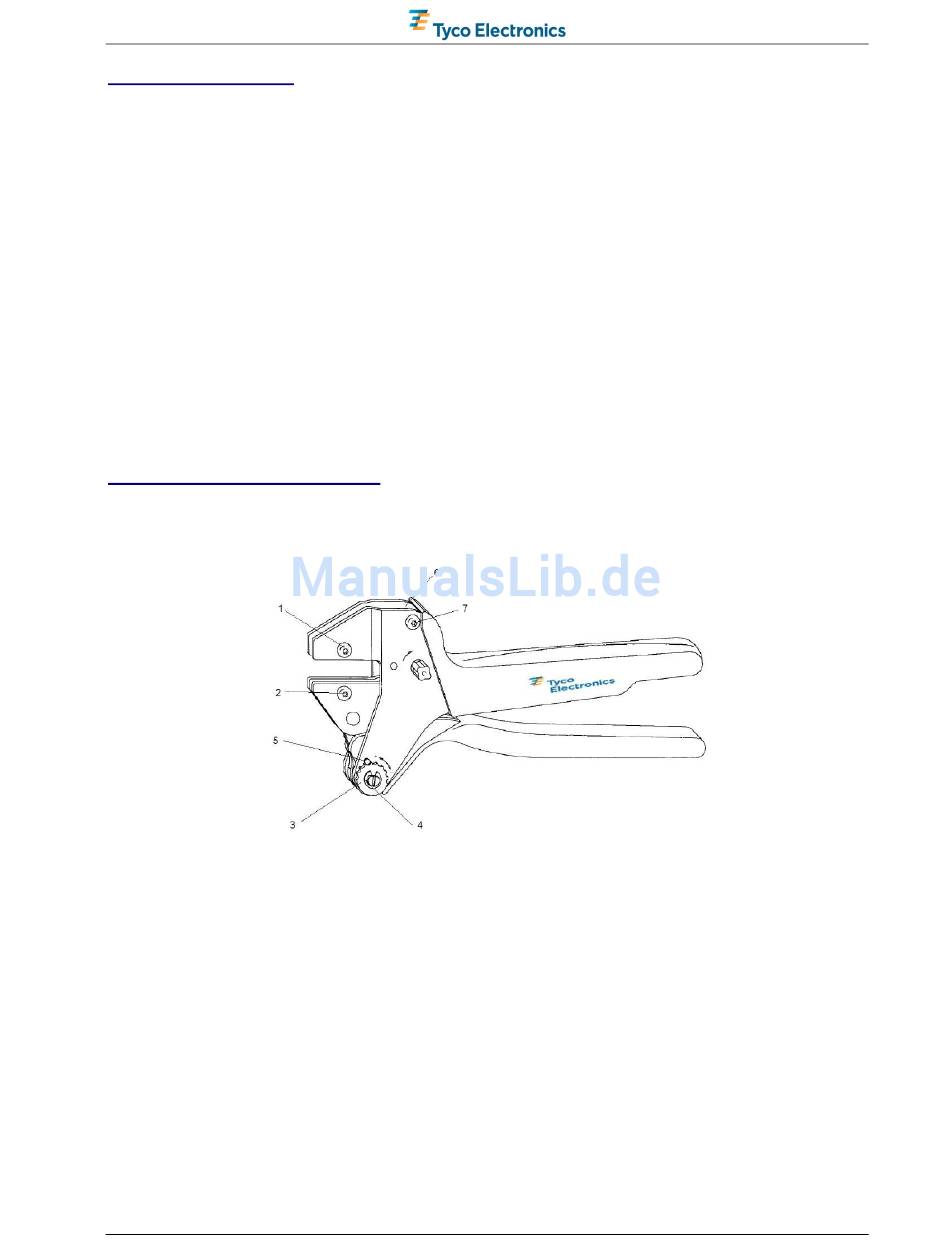

Figure 3
quantity 1
quantity 1
quantity 1
quantity 2
quantity 1
quantity 1
quantity 2
