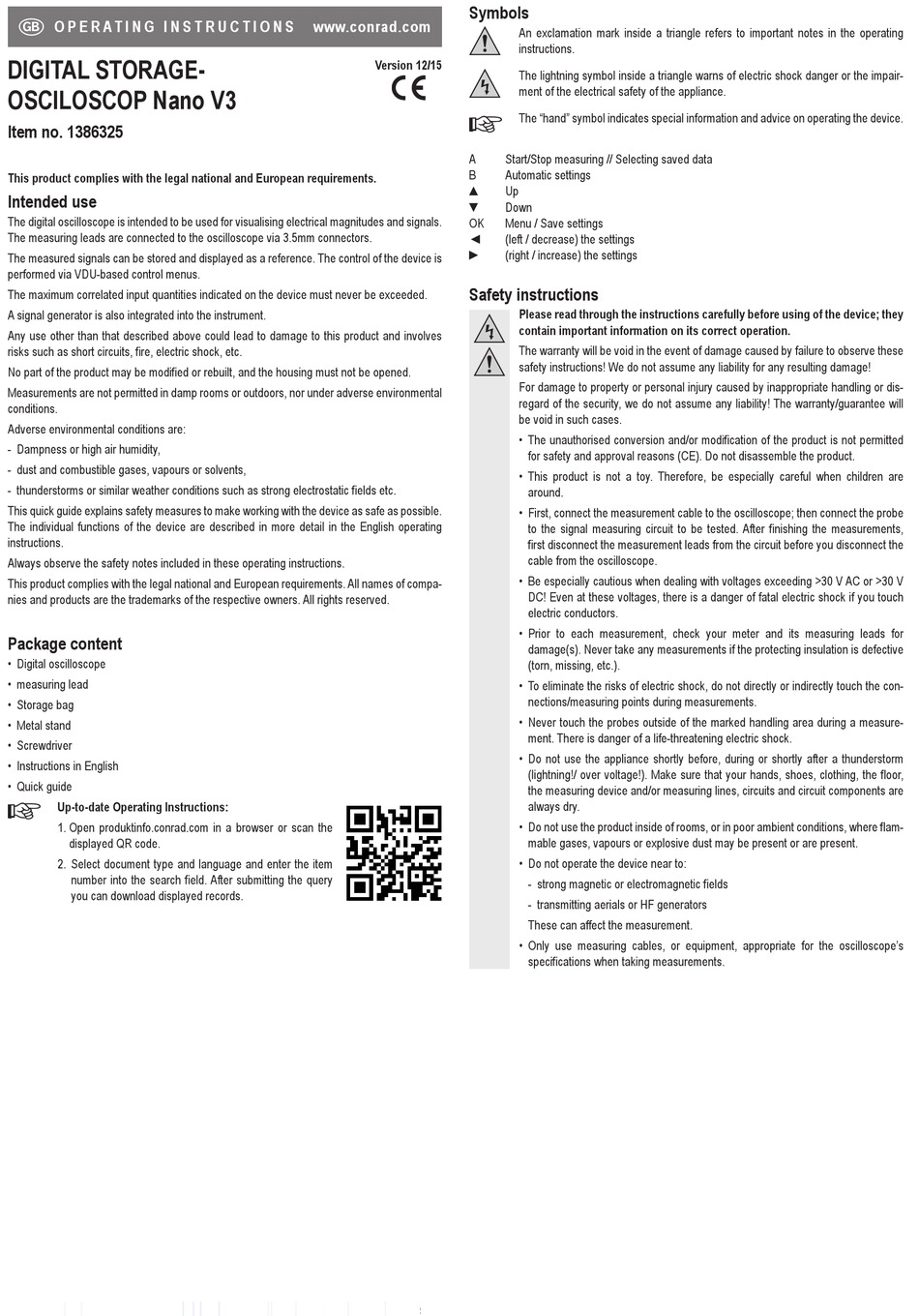

O P E R A T I N G I N S T R U C T I O N S
DIGITAL STORAGE-
OSCILOSCOP Nano V3
Item no. 1386325
This product complies with the legal national and European requirements.
Intended use
The digital oscilloscope is intended to be used for visualising electrical magnitudes and signals.
The measuring leads are connected to the oscilloscope via 3.5mm connectors.
The measured signals can be stored and displayed as a reference. The control of the device is
performed via VDU-based control menus.
The maximum correlated input quantities indicated on the device must never be exceeded.
A signal generator is also integrated into the instrument.
Any use other than that described above could lead to damage to this product and involves
risks such as short circuits, fire, electric shock, etc.
No part of the product may be modified or rebuilt, and the housing must not be opened.
Measurements are not permitted in damp rooms or outdoors, nor under adverse environmental
conditions.
Adverse environmental conditions are:
- Dampness or high air humidity,
- dust and combustible gases, vapours or solvents,
- thunderstorms or similar weather conditions such as strong electrostatic fields etc.
This quick guide explains safety measures to make working with the device as safe as possible.
The individual functions of the device are described in more detail in the English operating
instructions.
Always observe the safety notes included in these operating instructions.
This product complies with the legal national and European requirements. All names of compa-
nies and products are the trademarks of the respective owners. All rights reserved.
Package content
• Digital oscilloscope
• measuring lead
• Storage bag
• Metal stand
• Screwdriver
• Instructions in English
• Quick guide
Up-to-date Operating Instructions:
1. Open produktinfo.conrad.com in a browser or scan the
displayed QR code.
2. Select document type and language and enter the item
number into the search field. After submitting the query
you can download displayed records.
Symbols
www.conrad.com
Version 12/15
A
B
▲
▼
OK
◄
►
Safety instructions
An exclamation mark inside a triangle refers to important notes in the operating
instructions.
T he lightning symbol inside a triangle warns of electric shock danger or the impair-
ment of the electrical safety of the appliance.
T he "hand" symbol indicates special information and advice on operating the device.
Start/Stop measuring // Selecting saved data
Automatic settings
Up
Down
Menu / Save settings
(left / decrease) the settings
(right / increase) the settings
Please read through the instructions carefully before using of the device; they
contain important information on its correct operation.
T he warranty will be void in the event of damage caused by failure to observe these
safety instructions! We do not assume any liability for any resulting damage!
For damage to property or personal injury caused by inappropriate handling or dis-
regard of the security, we do not assume any liability! The warranty/guarantee will
be void in such cases.
• T he unauthorised conversion and/or modification of the product is not permitted
for safety and approval reasons (CE). Do not disassemble the product.
• T his product is not a toy. Therefore, be especially careful when children are
around.
• First, connect the measurement cable to the oscilloscope; then connect the probe
to the signal measuring circuit to be tested. After finishing the measurements,
first disconnect the measurement leads from the circuit before you disconnect the
cable from the oscilloscope.
• Be especially cautious when dealing with voltages exceeding >30 V AC or >30 V
DC! Even at these voltages, there is a danger of fatal electric shock if you touch
electric conductors.
• Prior to each measurement, check your meter and its measuring leads for
damage(s). Never take any measurements if the protecting insulation is defective
(torn, missing, etc.).
• T o eliminate the risks of electric shock, do not directly or indirectly touch the con-
nections/measuring points during measurements.
• Never touch the probes outside of the marked handling area during a measure-
ment. There is danger of a life-threatening electric shock.
• Do not use the appliance shortly before, during or shortly after a thunderstorm
(lightning!/ over voltage!). Make sure that your hands, shoes, clothing, the floor,
the measuring device and/or measuring lines, circuits and circuit components are
always dry.
• D o not use the product inside of rooms, or in poor ambient conditions, where flam-
mable gases, vapours or explosive dust may be present or are present.
• Do not operate the device near to:
- strong magnetic or electromagnetic fields
- transmitting aerials or HF generators
T hese can affect the measurement.
• O nly use measuring cables, or equipment, appropriate for the oscilloscope's
specifications when taking measurements.
