Installing Invert-
ers with Fronius
Datamanager in
Fronius Solar Net
*
**
1
2
3
4

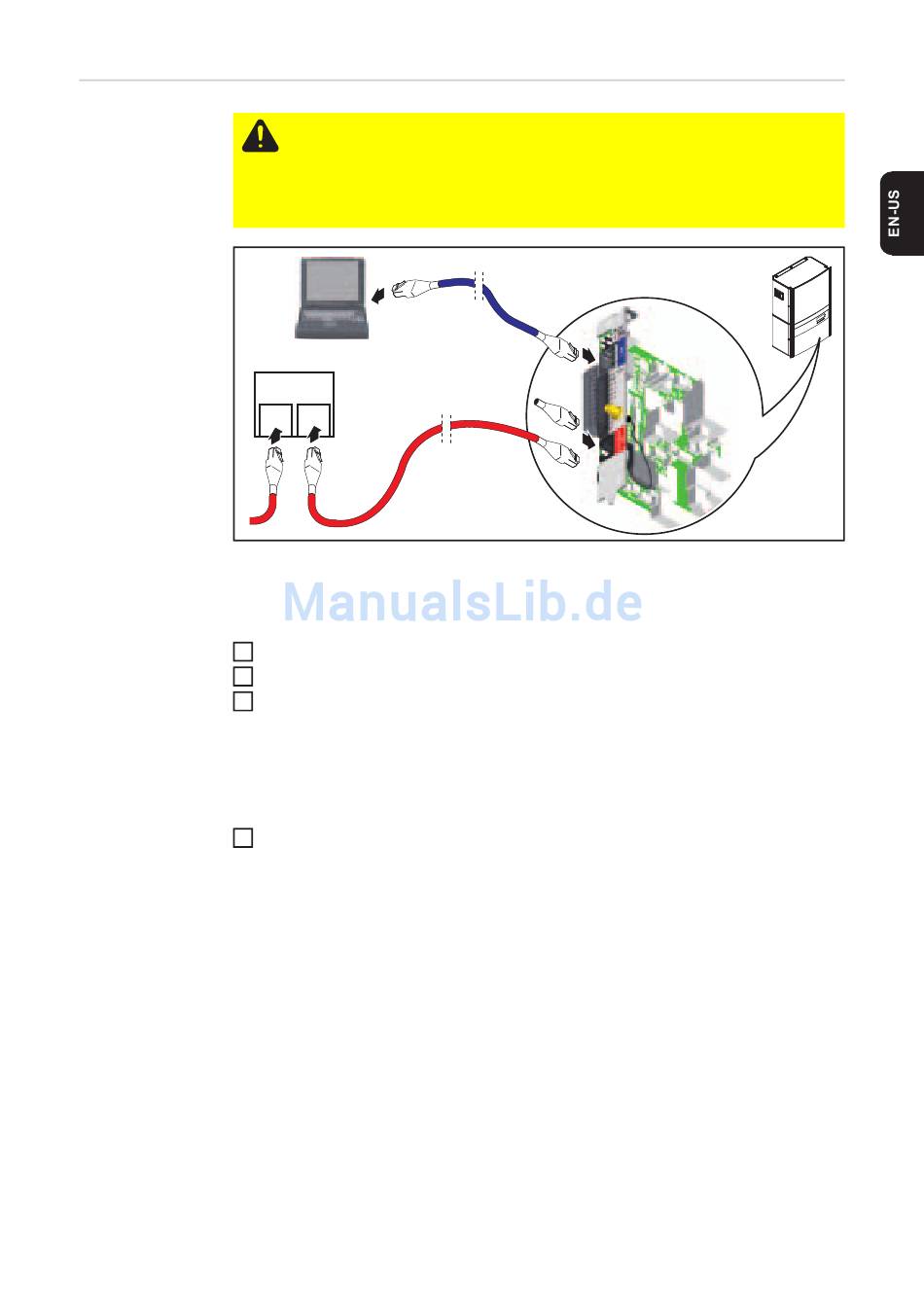

CAUTION! DATCOM components and/or the PC/laptop will be damaged if the
Ethernet or Solar Net cables are connected incorrectly to Fronius Datamanager.
- The Ethernet cable should only be inserted into the LAN connection (colored
blue)
- The Solar Net cable should only be inserted into the Solar Net In connection
(colored red)
2
DATCOM
IN OUT
4
5
Terminating plug, if only one inverter with Fronius Datamanager is linked to a PC
Solar Net Cable, if an inverter with Fronius Datamanager is linked to a PC and oth-
er DATCOM components
Insert the Ethernet cable into the LAN connection
Insert the Ethernet cable into the PC/laptop or into a suitable network connection
If only one inverter with Fronius Datamanager is being linked to a PC:
Insert the terminating plug into the Solar Net IN connection
If other DATCOM components are connected to the network, besides the inverter with
Fronius Datamanager:
Insert the Solar Net cable into the Solar Net IN connection of Fronius Datamanager
Connect the other DATCOM components
IMPORTANT! A terminating terminal must be inserted into the empty IN terminal of
the last DATCOM component.
1
LAN
*
IN
3
**
91
