Cabling

Fronius Solar Net Inverters with Fronius Datamanager or Fronius Com Card, DATCOM components with ex-
clients ternal housing or other DATCOM components will hereinafter be referred to as Fronius So-
lar Net.
Fronius Solar Net The data connection for the Fronius Solar Net client is a 1:1 connection using 8-pin data
client cabling cables and RJ 45 plugs.
Requirements for Shielded CAT5 (new) and CAT5e (old) cables compliant with ISO 11801 and EN50173
the Solar Net data must be used for the Fronius Solar Net client cabling. Other cables are not permitted.
cables
IMPORTANT! Do not use ISO/IEC-11801 U/UTP cables!
Permitted cables:
-
-
-
The shield must be crimped on to a CAT5-compatible shielded plug.
Due to the fact that the wires in Ethernet cables are twisted, you must make sure the twist-
ed pairs of wires are assigned correctly for cabling in accordance with EIA/TIA-568A:
Fronius Solar Net contact
1
2
3
4
5
6
7
8
Cabling compliant with EIA/TIA-568A
-
-
The following structured cabling standards must generally be observed:
-
-
-
S/STP
F/STP
S/FTP
+12 V
GND
TX- IN, RX- OUT
RX- IN, TX- OUT
RX+ IN, TX+ OUT
TX+ IN, RX+ OUT
GND
+12 V
Make sure that the wires are assigned correctly.
When setting up an independent ground connection (e.g. in patch panels), make sure
that the shield is grounded on one side of the cable only.
EN50173-1 for Europe
ISO/IEC 11801:2002 internationally
TIA/EIA 568 for North America
- F/FTP
- SF/FTP
- S/UTP

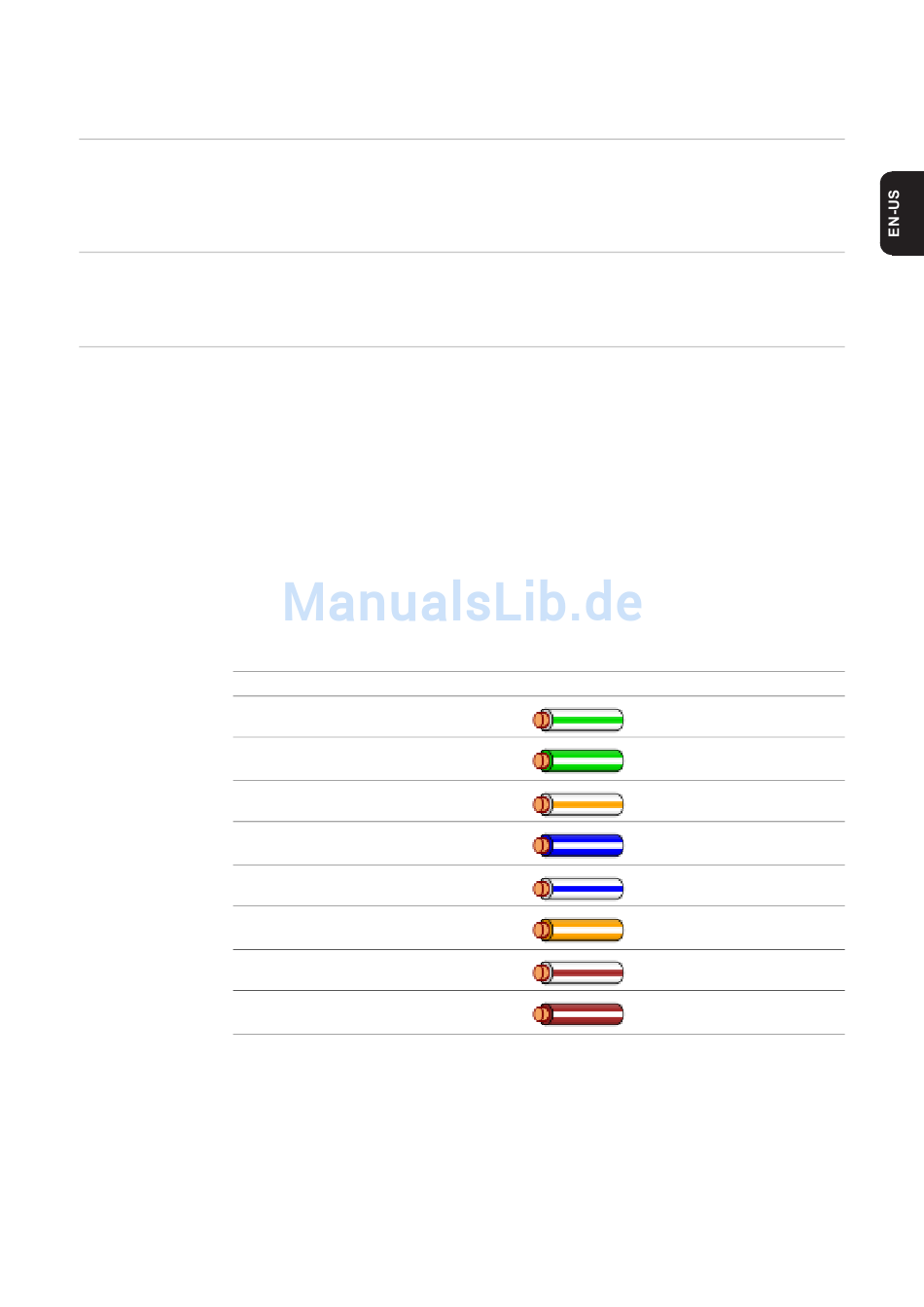

Pair no. Color
3
3
2
1
1
2
4
4
- F/UTP
- U/FTP
- U/STP
white/green line
green/white line
or green
white/orange line
blue/white line
or blue
white/blue line
orange/white line
or orange
white/brown line
brown/white line
or brown
