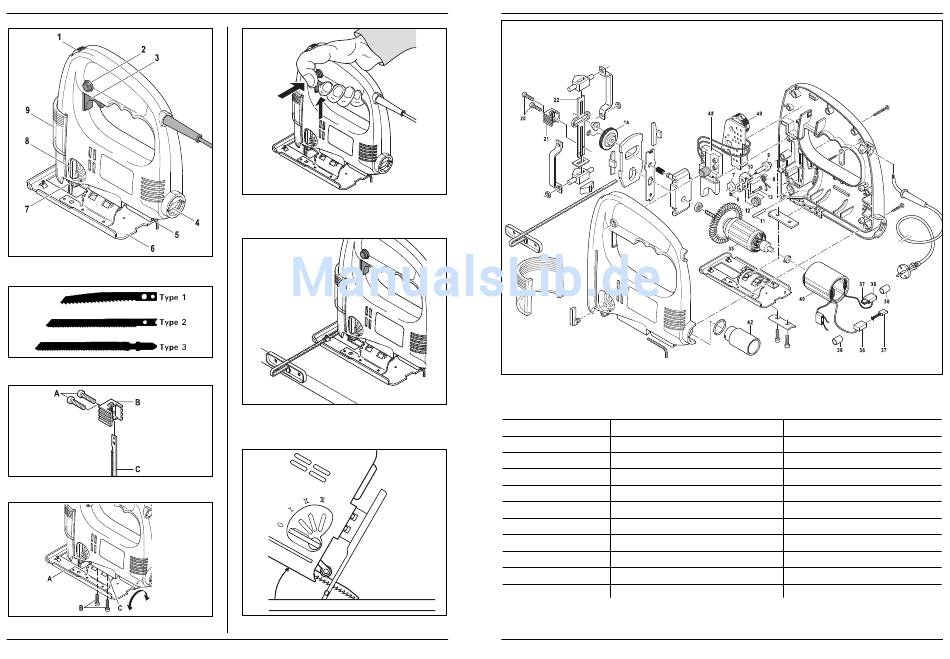

Fig. 1 - Description
Fig. 2 - Types of saw blades
Fig. 3 - Assembling saw
Fig. 4 - Adjusting angle of bottom plate
2
Fig. 5 - Switch interlocking
Fig. 6 - Positioning parallel saw guide
Fig. 7 - Cutting in
EXPLODED VIEW
POSITION
6+10+12+13
14
20+21+22
35
36
37+38
40
42
48
49
50
Ferm
Ferm
SPARE PARTS
DESCRIPTION
FERM NR.
GUIDE WHEEL COMPLETE
407808
GEAR
407806
SAW MECHANISM COMPLETE
407807
ROTOR
407805
CARBON BRUSH HOLDER
407800
CARBON BRUSH (SET)
407801
STATOR
407804
ADAPTER FOR VACUUM CLEANER
407809
SWITCH
407802
SPEED CONTROL PLATE
407803
SIDE GUIDE
407810
11
