3.4

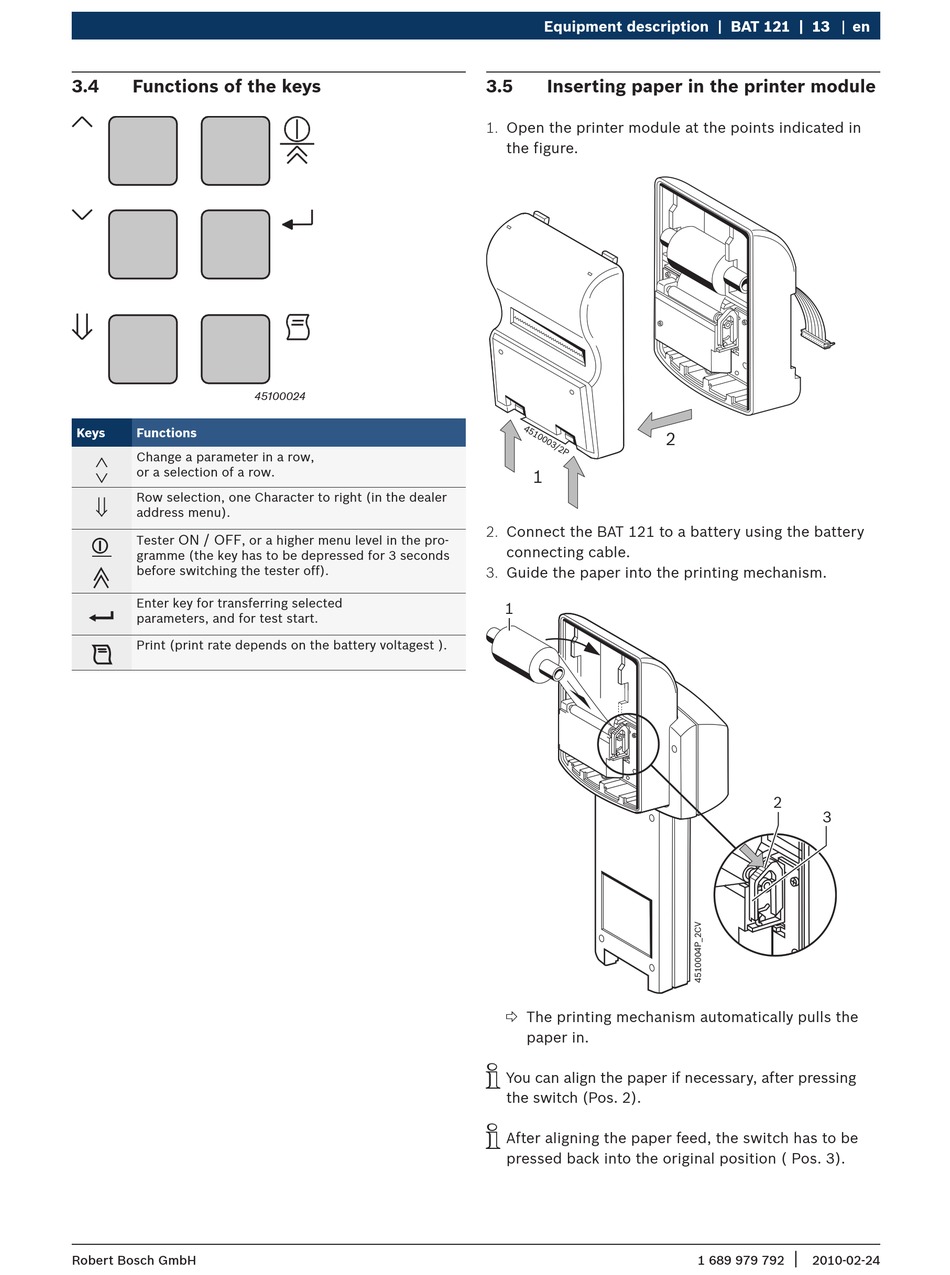

Functions of the keys

Keys Functions

Change a parameter in a row,

or a selection of a row.
Row selection, one Character to right (in the dealer

address menu).

ON / OFF
Tester , or a higher menu level in the pro-
gramme (the key has to be depressed for 3 seconds
O
before switching the tester off).
Enter key for transferring selected
E
parameters, and for test start.
D
Print (print rate depends on the battery voltagest ).
Robert Bosch GmbH
45100024
Equipment description | BAT 121 | 13
3.5

Inserting paper in the printer module

1. Open the printer module at the points indicated in
the figure.
1
2. Connect the BAT 121 to a battery using the battery
connecting cable.
3. Guide the paper into the printing mechanism.
1
? The printing mechanism automatically pulls the
paper in.
i
You can align the paper if necessary, after pressing
the switch (Pos. 2).
i
After aligning the paper feed, the switch has to be
pressed back into the original position ( Pos. 3).

BAT 121 | 13

| 13
2
2
3
|
