6. Corner connection for
screens of different
heights

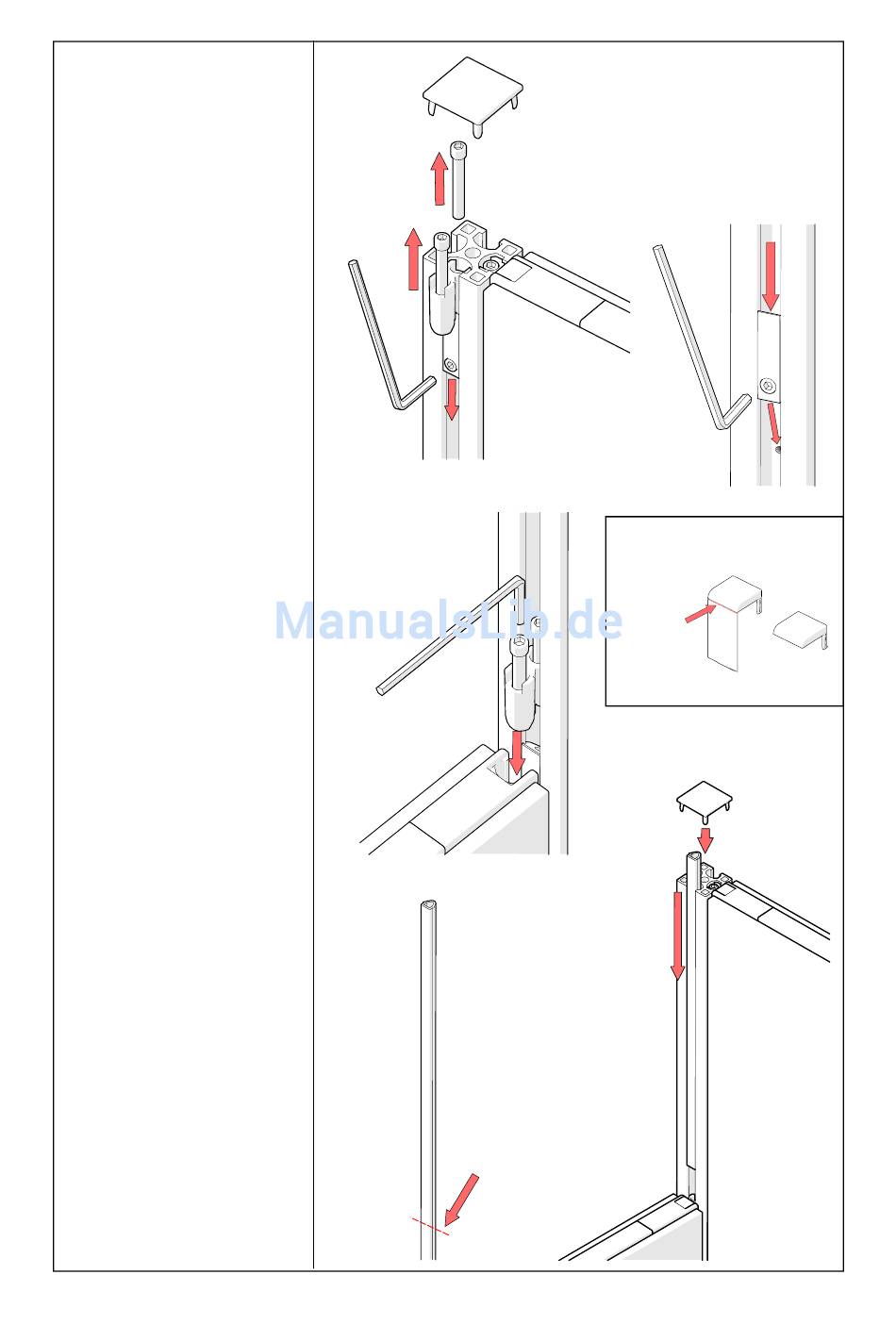

(a) Take the protective cover
off the corner post. Dismantle
linear connector, then unscrew
slot nut (SW 2,5).
(b) Slide the slot nut down and
bolt in place in the pre-marked
position on the corner post.
(c) Position the low screen on
the bottom linear connector of
the corner post, as described
for Fig. 2 - 5. Guide the top
linear connector into the corner
post groove onto the relocated
slot nut and into the gap on the
low screen, fix in place with
connecting bolts (SW 3).
(d) Snap off the lugs on the
protective caps (predetermined
breaking point). Put the
protective caps on the gap on
the low screen (not shown).
(e) Trim the slot cover to size
and slide it into the corner post
slot. Put the cover on the
corner post.
(a)
(c)
(e)
trim
22
(b)
(d)
snap
off!
