d. Input Key Function
S/N Identification
1 Throttle/tail rotor stick
2 Nick/roll stick
3 Roll trim
4 Nick trim
5 Tail rotor trim
6 Throttle trim
7 On/Off power switch
8 Antenna

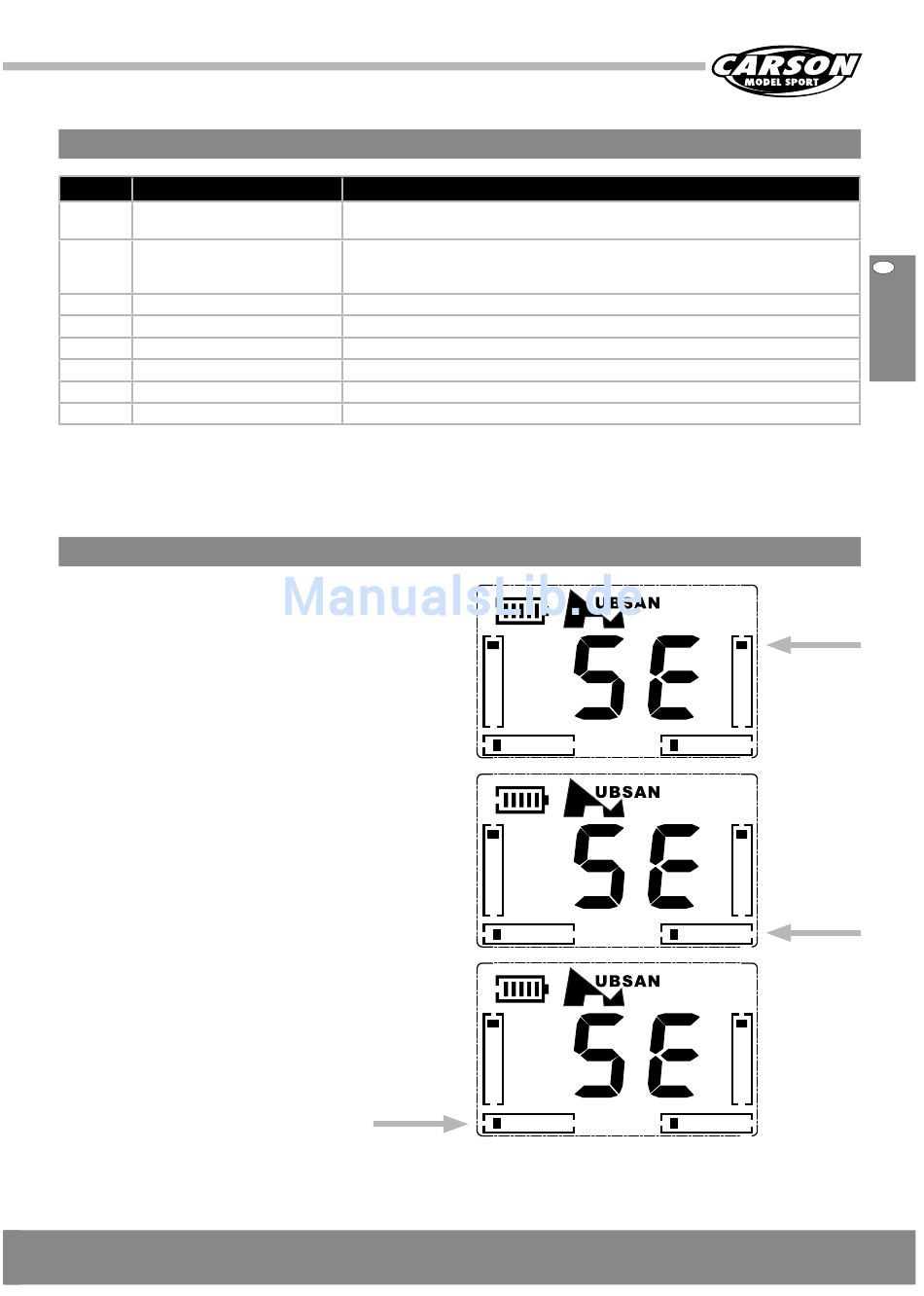

e. Reversing Channel Setup
1. Nick reverse setup
Hold down the nick/roll stick for 1 second to enter the setting status.
Press the nick trim key up or down to choose reverse. And then hold
down the nick/roll stick for 1 second to confirm and exit.
2. Roll reverse setup
Hold down the nick/roll stick for 1 second to enter the setting status.
Press the roll trim key left or right to choose reverse. And then hold
down the nick/roll stick for 1 second to confirm and exit.
3. Rudder (tail rotor) setup
Hold down the nick/roll stick for 1 second to enter the setting status.
Press rudder trim key left or right to choose reverse. And then hold
down the nick/roll stick for 1 second to confirm and exit.
Function
Forward and backward movement of the stick makes the quadcopter ascend and descend
respectively. When the control lever is moved left or right, the copter will turn left or right.
Forward and backward movement of the stick makes the quadcopter move forward and
backward respectively. Left and right movement of the stick makes the quadcopter drift
sideways left/right respectively.
Aileron trim subsidiary adjusts left and right drift.
Elevator trim subsidiary adjusts forward and backward movement.
Rudder trim subsidiary adjusts left and right rotation.
Throttle trim subsidiary adjusts ascent and descent.
Pushing up switches on the power transmitter, pulling down switches it off.
Transmits wireless signal
T
X
M1
T
X
M1
T
X
M1
CARSON x4 Micro Quadcopter 500507056
M2
M2
M2
