Keys and Displays
The unit is programmed by using three keys on the front panel.
The available key functions are listed as following table.

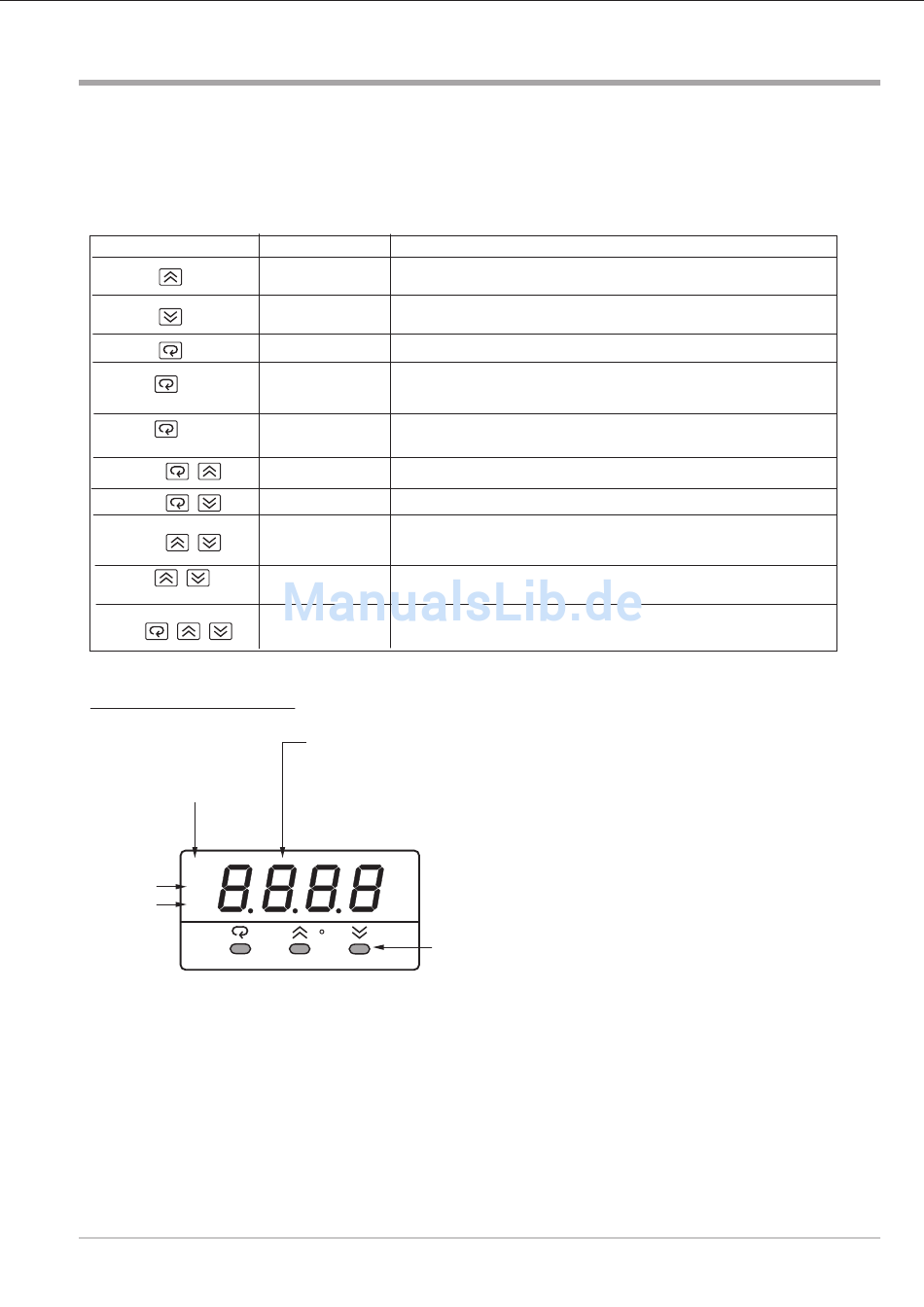

Keypad Operation

TOUCHKEYS
Press
for at least 3 seconds
Press
for at least 6 seconds
Press
Press
Press
Press
for at least 3 seconds
Press

Front Panel Description

Output 1
Indicator
Output 2
O1
Indicator
O2
Alarm 1
A1
Indicator
KS10-I
economy
3
FUNCTION
Press and release quickly to increase the value of the displayed parameter.
Up Key
Press and hold to accelerate increment speed.
Press and release quickly to decrease the value of the displayed parameter.
Down Key
Press and hold to accelerate decrement speed.
Scroll Key Select the parameter in a direct sequence.
Allow access to more parameters in user menu, also used to Enter manual
mode, auto-tune mode, default setting mode and save calibration data
Enter Key
during calibration procedure.
Reset historical values of PVHI and PVLO and start to record the peak
Start Record Key
process value.
Reverse Scroll Key Select the parameter in a reverse sequence during menu scrolling.
Mode Key Select the operation Mode in sequence.
Reset the front panel display to a normal display mode, also used to leave
Reset Key the specific Mode execution and ending the auto-tune and manual control
execution, and quit the sleep mode.
The controller enters the sleep mode if the sleep function ( SLEP ) is enabled
Sleep Key
( select YES ).
By entering correct security code to allow execution of engineering programs.
This function is used only in the factory to manage the diagnostic reports.
Factory Key
The user should never attempt to operate this function.
4-digit Display
to display process value,
set point value, menu symbol,
parameter value, control output
value and error code etc.
C
3 Silicone Rubber Buttons
PMA
for ease of control setup
and set point adjustment.
DESCRIPTION
9499 040 61241
