Dangerous voltages capable of causing death are sometimes present
in this instrument. Before installation or beginning any troubleshooting
procedures the power to all equipment must be switched off and isolated. Units
suspected of being faulty must be disconnected and removed to a properly
equipped workshop for testing and repair. Component replacement and internal
adjustments must be made by a qualified maintenance person only.
To minimize the possibility of fire or shock hazards, do not expose this instrument
to rain or excessive moisture.
Do not use this instrument in areas under hazardous conditions such as excessive
shock, vibration, dirt, moisture, corrosive gases or oil. The ambient temperature of
the areas should not exceed the maximum rating specified.

Unpacking

Upon receipt of the shipment remove the unit from the carton and inspect the
unit for shipping damage.
If any damage due to transit , report and claim with the carrier.
Write down the model number, serial number, and date code for future reference
when corresponding with our service center. The serial number (S/N) and date
code (D/C) are labeled on the box and the housing of control.
Mounting
Make panel cutout to dimension shown in the Figure below.
Take both mounting clamps away and insert the controller into panel cutout.
Install the mounting clamps back. Gently tighten the screws in the clamp till the
controller front panels is fitted snugly in the cutout.

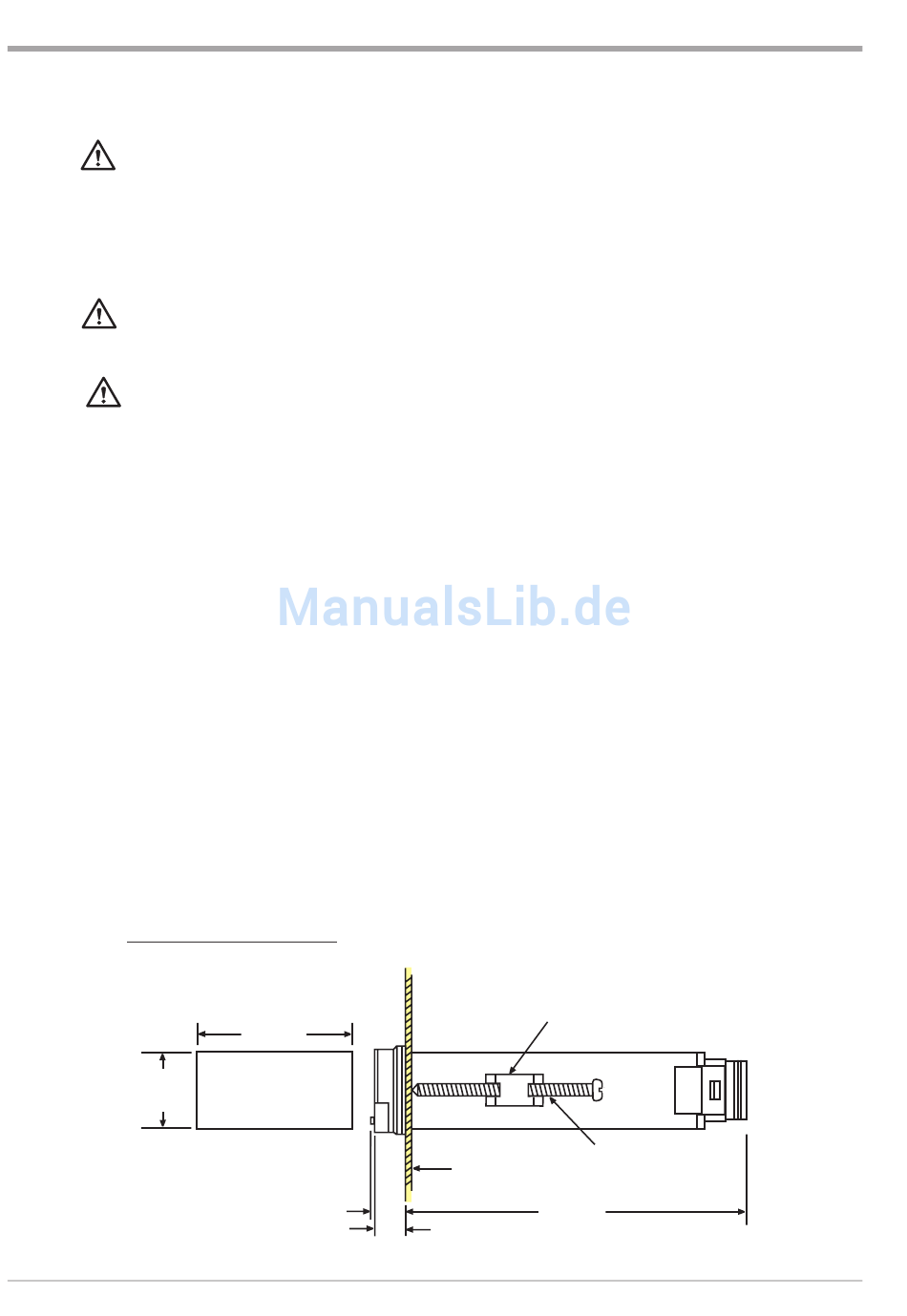

Mounting Dimensions

+0.3
22.2 _
0
9499 040 61241
45 +0.5
_
0
12.5mm
MOUNTING
CLAMP
SCREW
Panel
98.0mm
10.0mm
Installation
12
