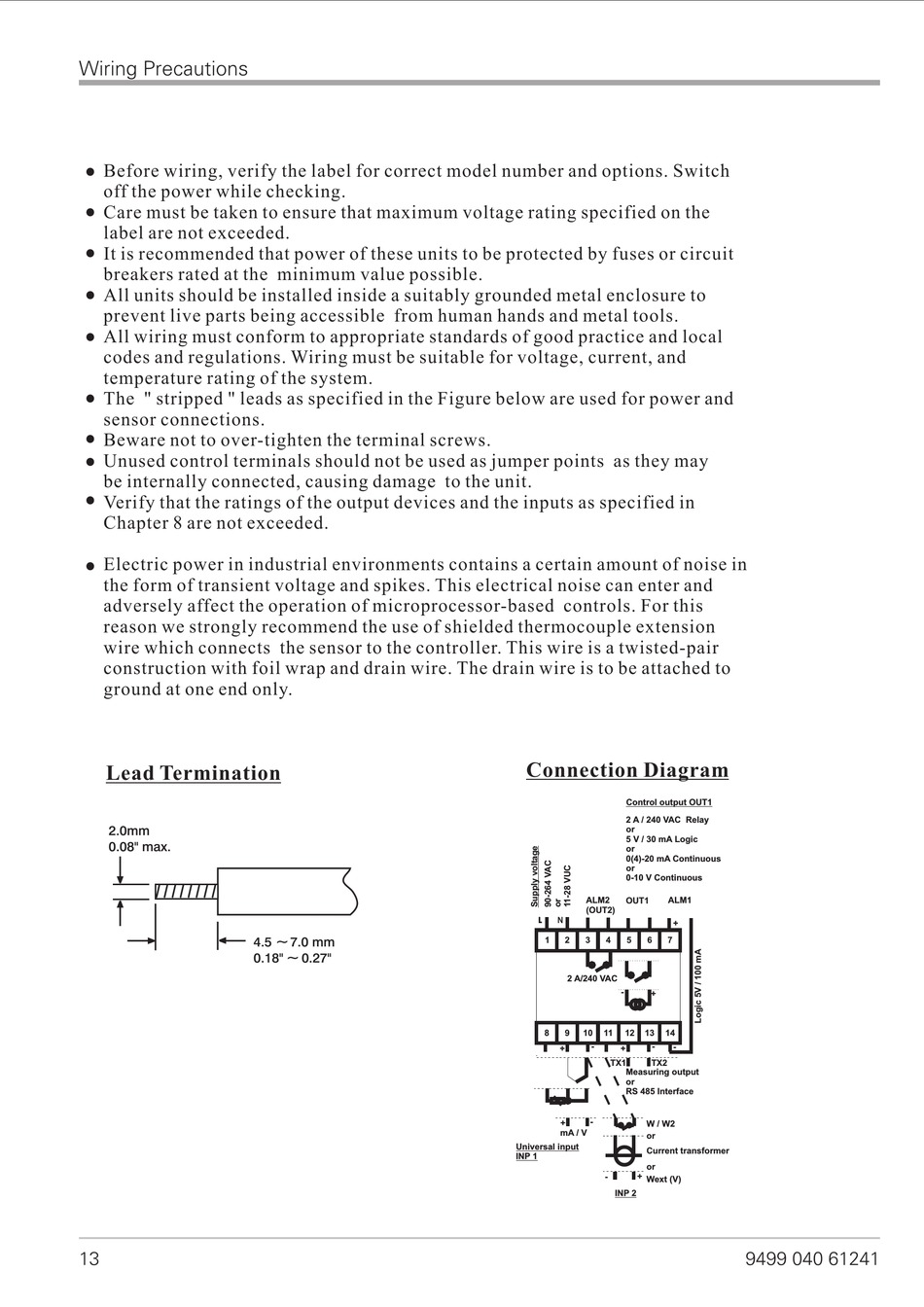

Wiring Precautions
w
Before wiring, verify the label for correct model number and options. Switch
off the power while checking.
w
Care must be taken to ensure that maximum voltage rating specified on the
label are not exceeded.
w
It is recommended that power of these units to be protected by fuses or circuit
breakers rated at the minimum value possible.
w
All units should be installed inside a suitably grounded metal enclosure to
prevent live parts being accessible from human hands and metal tools.
w
All wiring must conform to appropriate standards of good practice and local
codes and regulations. Wiring must be suitable for voltage, current, and
temperature rating of the system.
w
The " stripped " leads as specified in the Figure below are used for power and
sensor connections.
w
Beware not to over-tighten the terminal screws.
w
Unused control terminals should not be used as jumper points as they may
be internally connected, causing damage to the unit.
w
Verify that the ratings of the output devices and the inputs as specified in
Chapter 8 are not exceeded.
w
Electric power in industrial environments contains a certain amount of noise in
the form of transient voltage and spikes. This electrical noise can enter and
adversely affect the operation of microprocessor-based controls. For this
reason we strongly recommend the use of shielded thermocouple extension
wire which connects the sensor to the controller. This wire is a twisted-pair
construction with foil wrap and drain wire. The drain wire is to be attached to
ground at one end only.
Lead Termination
2.0mm
0.08" max.
4.5
0.18"
13
~
7.0 mm
~
0.27"
Connection Diagram
Control output OUT1
2 A / 240 VAC Relay
or
5 V / 30 mA Logic
or
0(4)-20 mA Continuous
or
0-10 V Continuous
ALM2
OUT1
ALM1
(OUT2)
L
N
1
2
3
4
5
6
7
2 A/240 VAC
-
8
9
10
11
12
13
14
-
-
-
TX1
TX2
Measuring output
or
RS 485 Interface
-
W / W2
mA / V
or
Universal input
Current transformer
INP 1
or
-
Wext (V)
INP 2
