PG-A20X

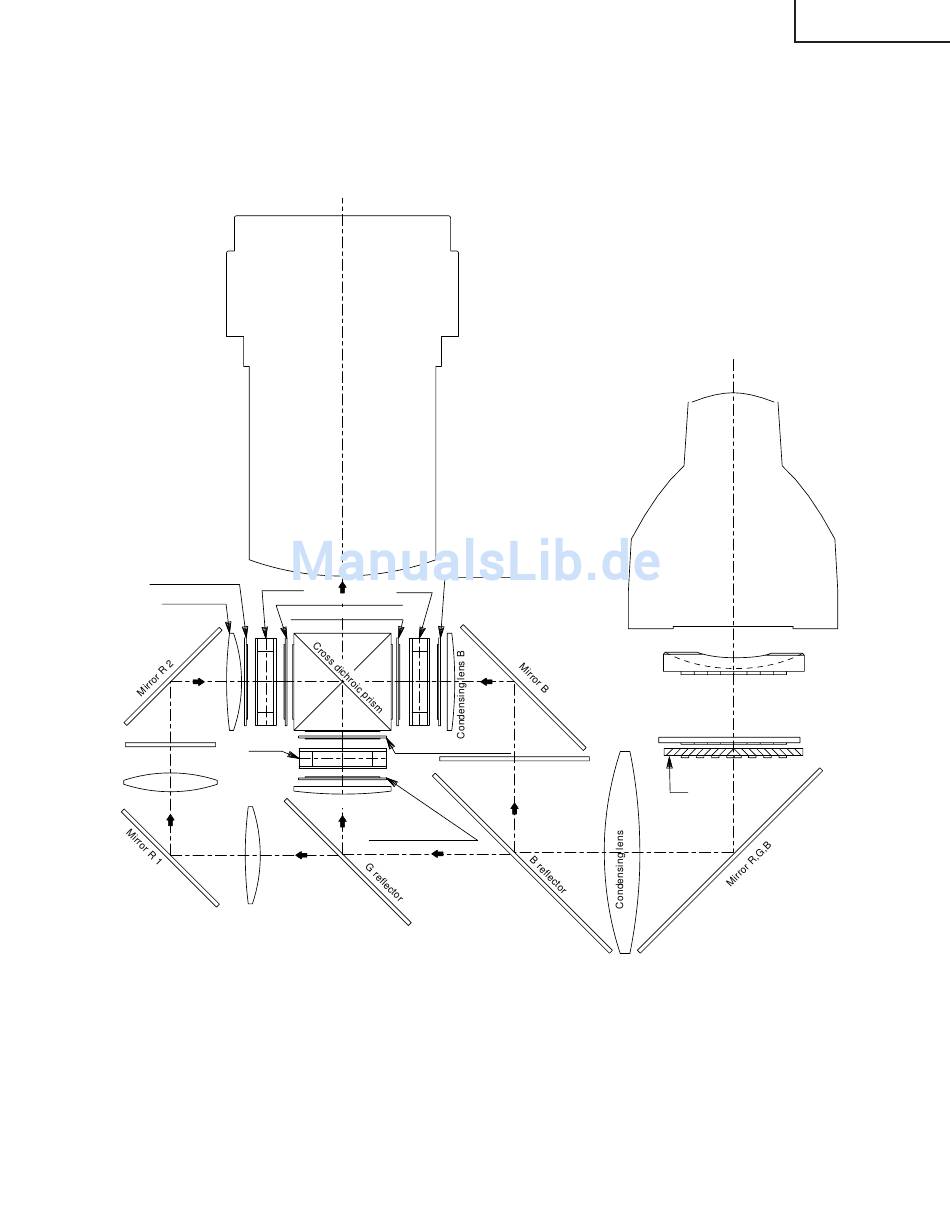

THE OPTICAL UNIT OUTLINE

Layout for proper setup of the optical components and parts (top view)
Projection lens
LIGHT SOURCE
(LAMP)
Input polariser B
Input polariser R
LCD(R)
LCD(B)
Relay lens 3
Output pre-polariser R
Output pre-polariser B
Fly-eye lens(Input)
Fly-eye lens(Output)
LCD(G)
Output pre-polariser G
R dichroic filter
UV reflector
PBS
Relay lens 2
Condensing lens G
Blue
Green
Input polariser G
Red
Green/Red
Relay lens 1
21
