The Optical Unit Outline - Sharp XG-MB50X Serviceanleitung

XG-MB50X
XR-11XC
XR-10X/S
XR-20X/S

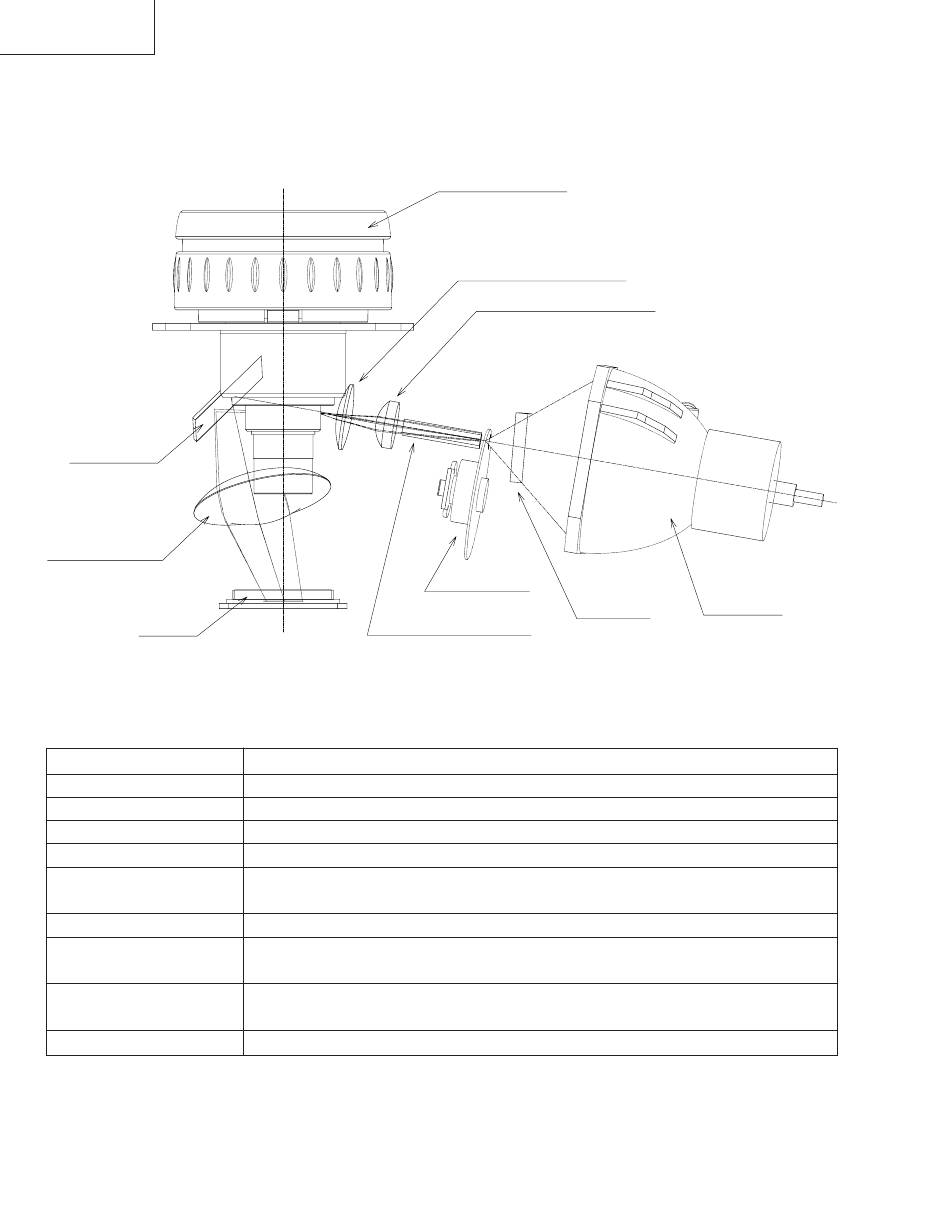

Layout for proper setup of the optical components and parts (top view)
(Schematic diagram)
Reflection
mirror
Plastic Lens
DMD
Item
Lamp
UV/IR cut filter (UV GLASS)
Color wheel
Rod (ROD INTEGRATOR)
Illumination lens
(ILLUMINATION LENS 1, 2)
Reflection mirror
Condencer Lens
(PLASTIC LENS)
DMD
Projection lens

THE OPTICAL UNIT OUTLINE

Rod Integrator
Light source. DC high-pressure mercury lamp.
Filters out harmful UV and IR rays from the lamp.
Splits light from the light source into R, G, B and W through a color filter.
Assures uniform light ray.
Focus light from the rod on DMD.
Reflects light from the illumination lenses toward DMD.
Condenses the light from the reflection mirror to the DMD and the pupil of the
projection lens.
Turns the internal micromirror ON/OFF at the rate of color component of each dot
of the input source to reflect light.
Enlarges light from DMD and projects it on a screen.
Projection lens
Illumination lens 2
Illumination lens 1
Color wheel
UV Glass
Function
22
Lamp
