f. Pressing the right key, the menu item set-
ting will be switched to the next value.
If figures are to be input (e.g. when setting
the scaling factor), select first the digit
using the left key, and then set the value
using the right key.
g. Hold the left key pressed and press the
right key to switch to the next menu item.
h. The last menu title "EndPro" allows, when
selecting "Yes", to exit the programming
menu and to take over (store) the new
values. If "no" is selected, the program-
ming routine is repeated, the latest values
set remaining active. They can now be
checked aain or modified.
4. Programming routine
The programmable parameters of the device
are described below, in succession. The
device is fully programmed after one pass of
the routine.
The first values stated correspond
to the factory settings.

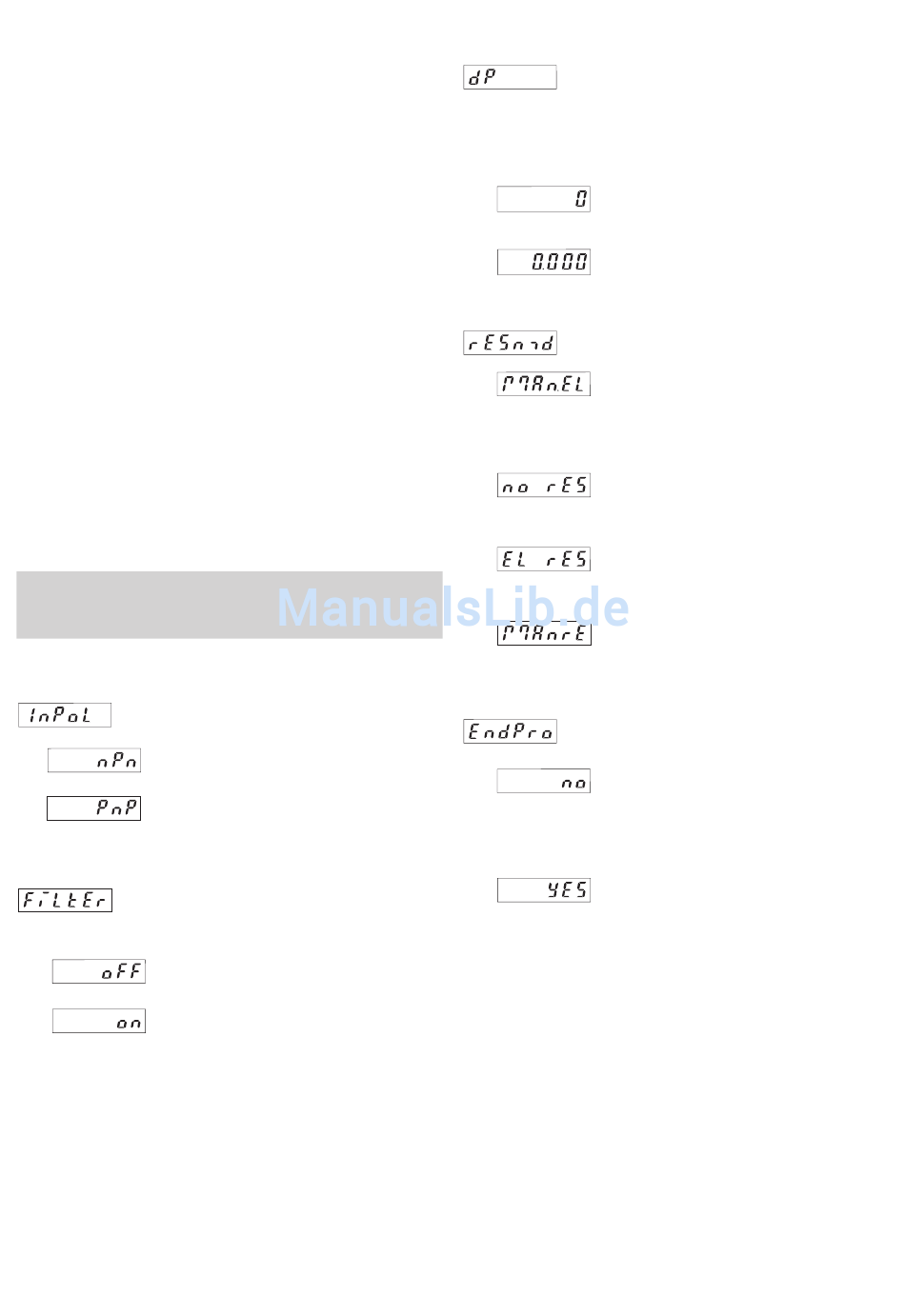

4.1 Polarity of the inputs
npn: switching to 0 V
pnp: switching to +U
4.2 Switching on the 30 Hz filter (INP)
The filter provides input
damping*
30 Hz filter off (f
30 Hzfilter on
Page 2
4.3 Decimal point setting
4.4 RESET Mode
4.5 End of programming
B
)
max
* where bounce occurs, e.g. with contacts
The decimal point determines
the way of displsaing the
count values. It does not
affect counting.
0 no decimal place
0.0 one decimal place
0.00 two decimal places
0.000 three decimal places
manual reset via the red
RESET key and electrical
reset via the RESET input
no reset (red RESET key and
RESET input locked)
only electrical reset via the
RESET input
only manual reset via the red
RESET key
The programming routine is
repeated once more. The
values set until now can be
checked and modified.
The programming routine wil
be left and all values set will
be stored as new parame-
ters. Afterwards the device is
ready for operation.
