Four-indent crimp tool 09 99 000 0888
NOTE
18

Preparing the crimp tool

Protected against unintentional adjustments

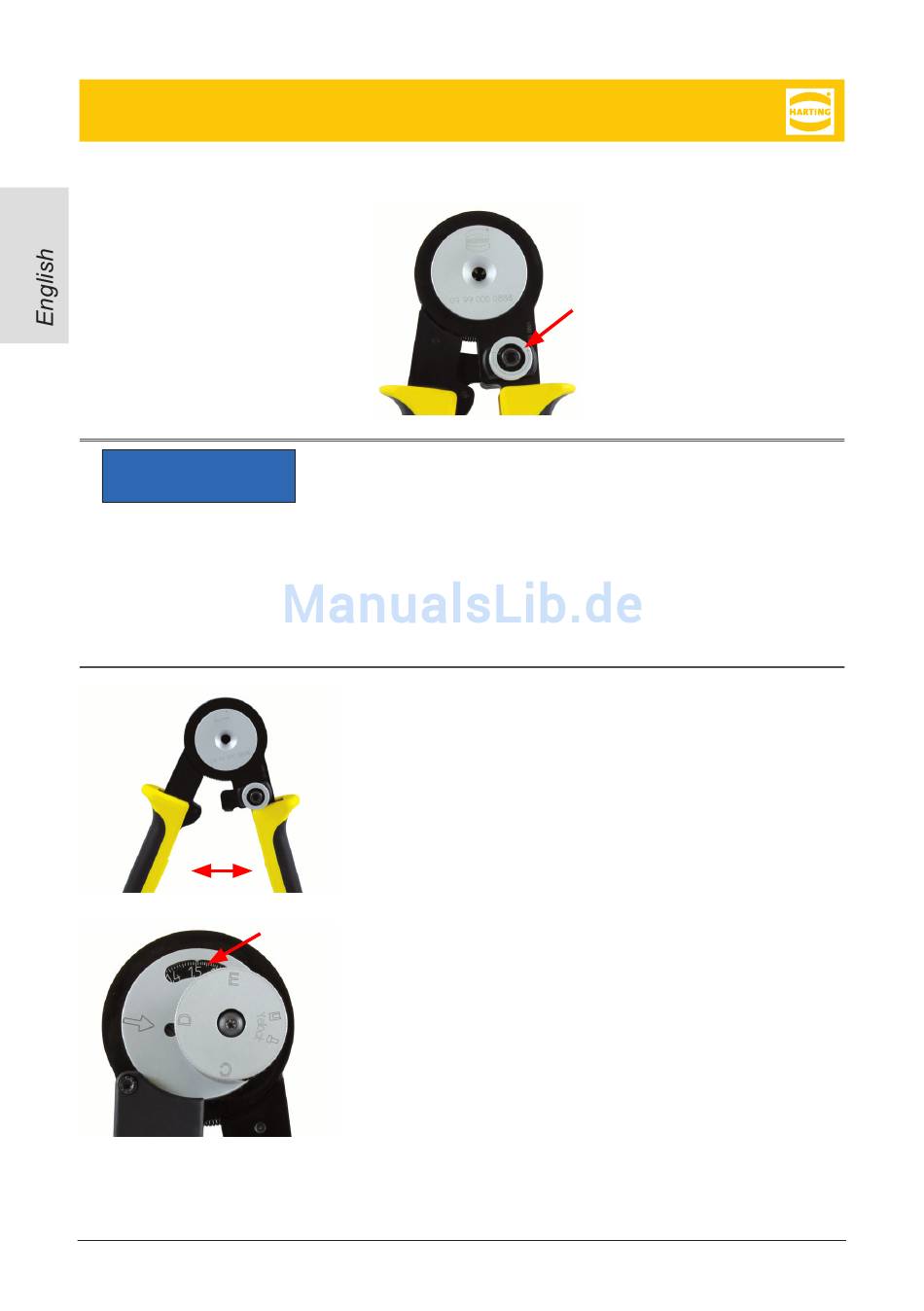

This crimp tool features a settings dial Ⓐ which ensures
that the crimping depth cannot be re-adjusted unintenti-
onally. There is no need to set the crimping depth with a
plug gauge. When necessary, you may use the go /no-go
gauge 09 99 000 0889 to check that the crimp tool is fun-
ctioning properly.
1. Open the crimp tool.
Ⓑ
2. Unlatch the settings dial (pull it out) and then turn it until
the desired number is visible in the scale on the back of
the crimp tool Ⓑ. Release the settings dial; give it a brief
turn so that it latches back into place.
▸ The HARTING four-indent crimp tool has now been
set and is ready for use with the selected contacts and
wires!
Ⓐ
