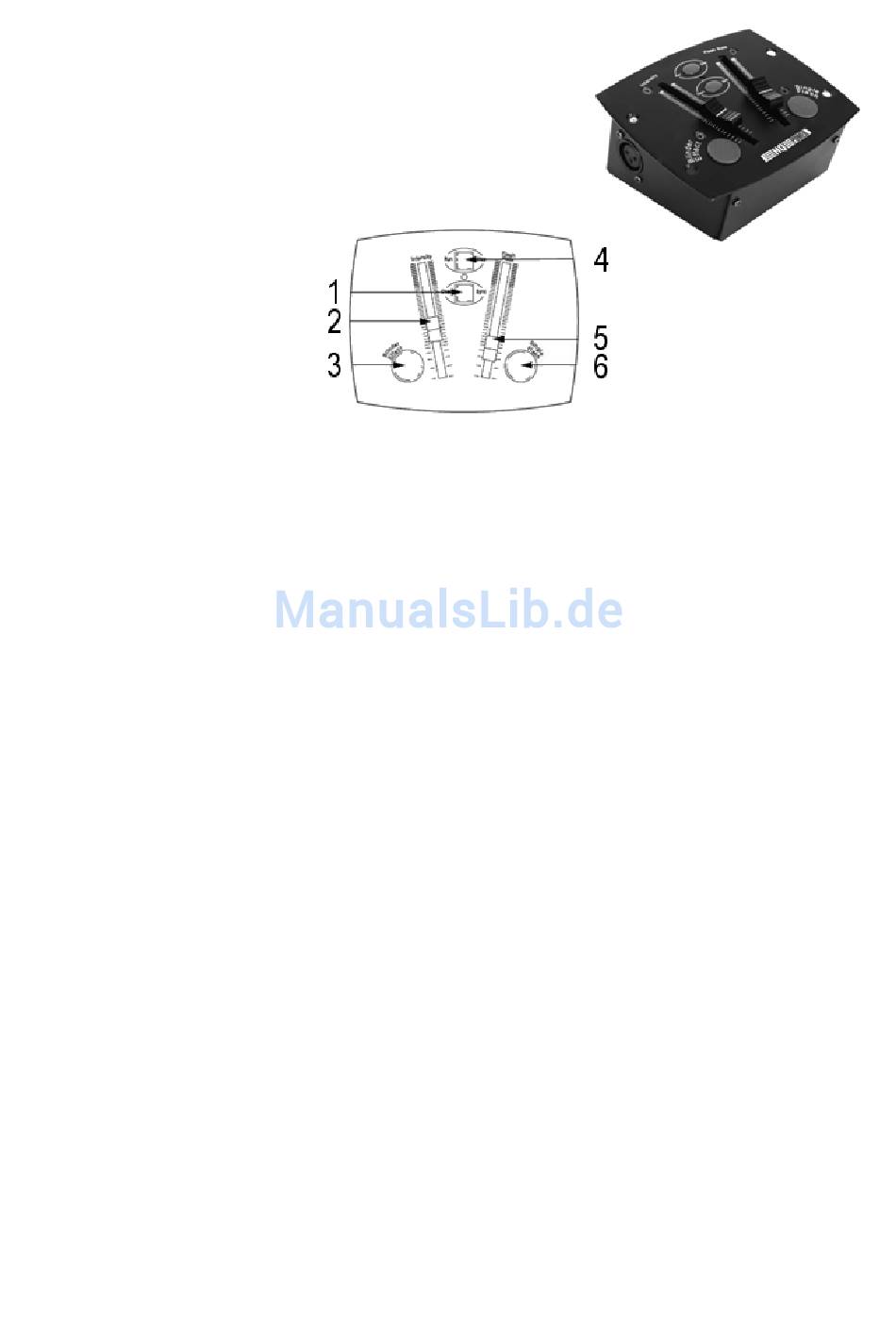

6. Remote Controller (optional)
The controller allows you to control the functions more easily. Connect the
VDP3000RC to the fixtures using a 3-pin XLR cable. The controller is able
to control up to 20 fixtures. Remove the terminator from the last
VDP3000ST in the chain when using the VDP3000RC controller. Install a
signal splitter after the first fixture if necessary.
1. chase/sync toggle switch
2. intensity fader
3. blinder effect button
4. run/stop toggle switch
5. flash rate fader
6. single flash button

7. Cleaning and Maintenance

1. All screws should be tightened and free of corrosion.
2. The housing, visible parts, mounting supports and the installation location (e.g. ceiling, suspension, trussing)
should not be deformed, modified or tampered with e.g. do not drill extra holes in mounting supports, do not
change the location of the connections.
3. Moving mechanic parts must not show any signs of wear and tear.
4. The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
5. Disconnect the device from the mains prior to maintenance activities.
6. Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
7. There are no user-serviceable parts.
8. Contact your dealer for spare parts if necessary.

8. Technical Specifications

Power Supply
Power Consumption
Lamp
Fuse
DMX512
Dimensions
Total Weight
Max. Ambient Temperature
Optional Controller
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of
damage or injury resulted from (incorrect) use of this device. For more info concerning this product, please
visit our website www.hqpower.com. The information in this manual is subject to change without prior
notice.
VDP3000ST
max. 230VAC/50Hz
8A (33A peak)
Philips XOP 15-OF strobe lamp (order code LAMP3000ST)
®
F20A, 250VAC
1, 3 or 4 channels
246 x 425 x 240mm
7.5kg
40°C
VDP3000RC
