8.2 Specifications of Power Supply Connector

This is a power connector from an exclusive AC adapter.

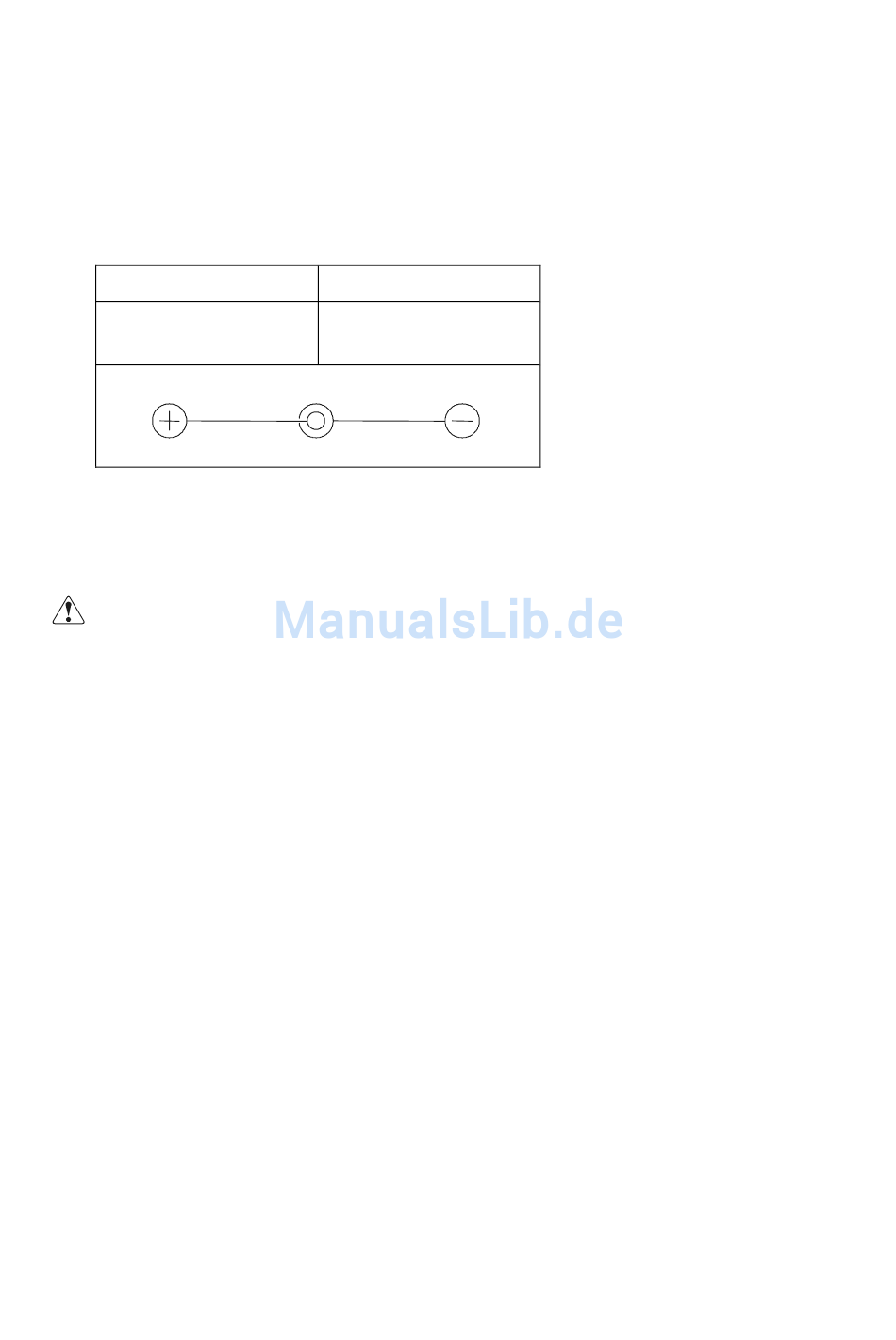

Connector's Pin Configuration
1
Jack used
Applicable plug
CAUTION:
No.
1
2
: HEC0470-01-640(HOSHIDEN) or equivalent
: JXP series Type-A (I.D. 2.45 mm, O.D. 5.5 mm) (HOSHIDEN) or equivalent
• Be sure to use the specified power supply.
trouble or breakage.
• Do not connect the power supply with different polarities.
Function
+24V
GND
2
27
iDP-460 User's Manual
