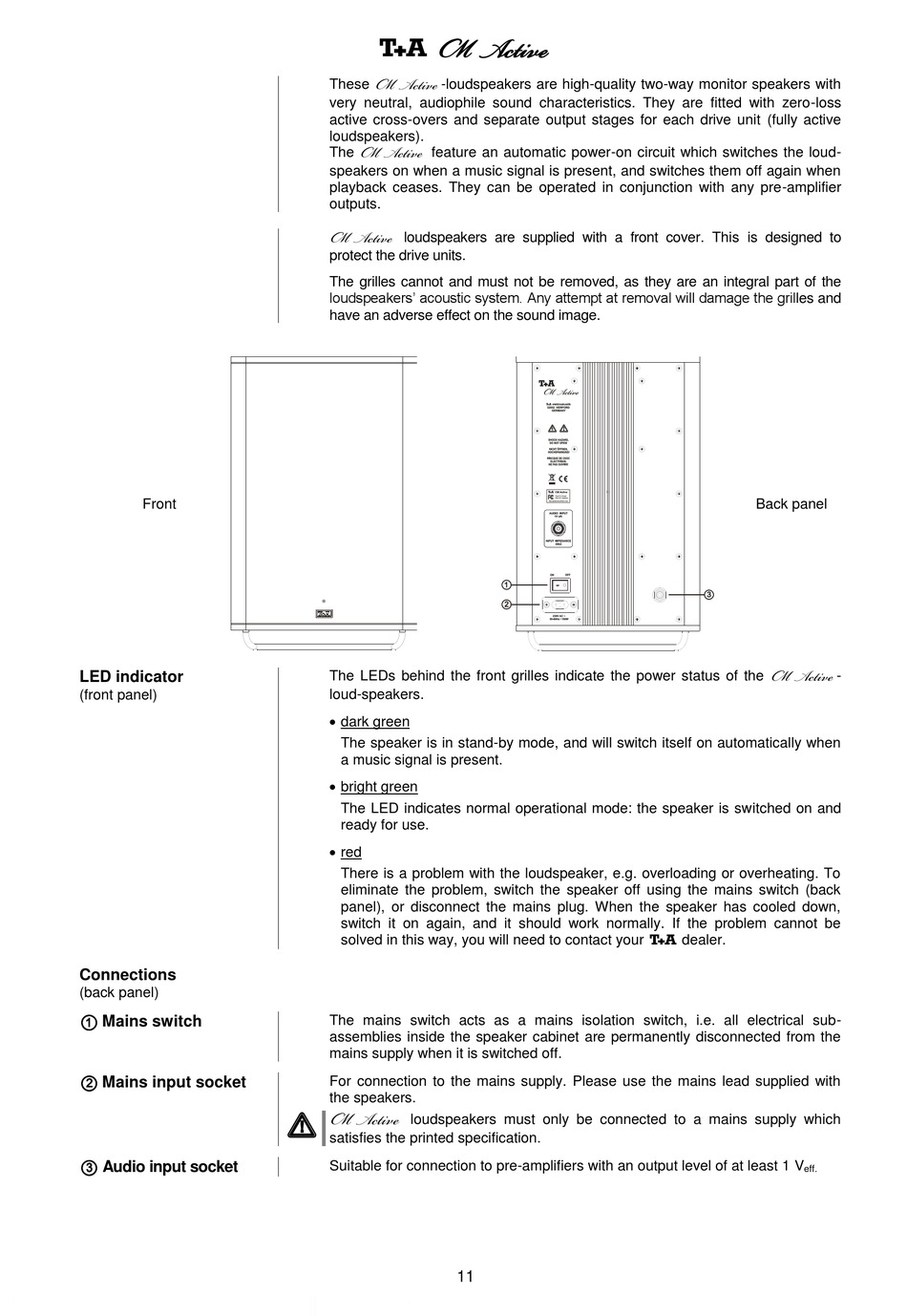

Led Indicator (Front Panel); Connections (Back Panel); Mains Switch - T+A CM Active Betriebsanleitung

Front
LED indicator
(front panel)
Connections
(back panel)
 Mains switch
 Mains input socket
 Audio input socket
 
These -loudspeakers are high-quality two-way monitor speakers with
very neutral, audiophile sound characteristics. They are fitted with zero-loss
active cross-overs and separate output stages for each drive unit (fully active
loudspeakers).
The  feature an automatic power-on circuit which switches the loud-
speakers on when a music signal is present, and switches them off again when
playback ceases. They can be operated in conjunction with any pre-amplifier
outputs.
 loudspeakers are supplied with a front cover. This is designed to
protect the drive units.
The grilles cannot and must not be removed, as they are an integral part of the
loudspeakers' acoustic system. Any attempt at removal will damage the grilles and
have an adverse effect on the sound image.
The LEDs behind the front grilles indicate the power status of the -
loud-speakers.
 dark green
The speaker is in stand-by mode, and will switch itself on automatically when
a music signal is present.
 bright green
The LED indicates normal operational mode: the speaker is switched on and
ready for use.
 red
There is a problem with the loudspeaker, e.g. overloading or overheating. To
eliminate the problem, switch the speaker off using the mains switch (back
panel), or disconnect the mains plug. When the speaker has cooled down,
switch it on again, and it should work normally. If the problem cannot be
solved in this way, you will need to contact your  dealer.
The mains switch acts as a mains isolation switch, i.e. all electrical sub-
assemblies inside the speaker cabinet are permanently disconnected from the
mains supply when it is switched off.
For connection to the mains supply. Please use the mains lead supplied with
the speakers.


loudspeakers must only be connected to a mains supply which

satisfies the printed specification.
Suitable for connection to pre-amplifiers with an output level of at least 1 V
11
Back panel
eff.
