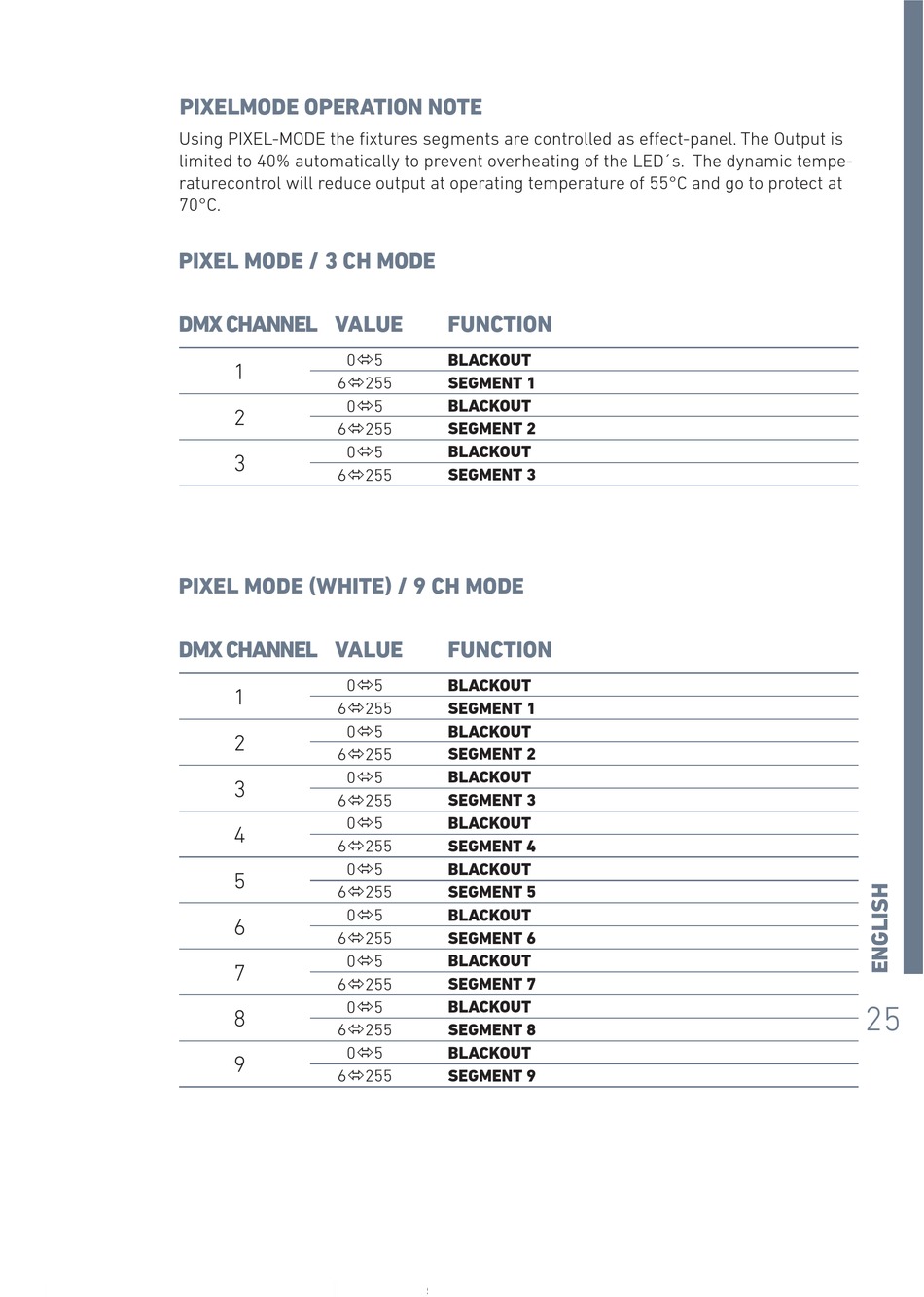

PIXELMODE OPERATION NOTE
Using PIXEL-MODE the fixtures segments are controlled as effect-panel. The Output is
limited to 40% automatically to prevent overheating of the LED´s. The dynamic tempe-
raturecontrol will reduce output at operating temperature of 55°C and go to protect at
70°C.
PIXEL MODE / 3 CH MODE
DMX CHANNEL VALUE
0ó5
1
6ó255
0ó5
2
6ó255
0ó5
3
6ó255
PIXEL MODE (WHITE) / 9 CH MODE
DMX CHANNEL VALUE
0ó5
1
6ó255
0ó5
2
6ó255
0ó5
3
6ó255
0ó5
4
6ó255
0ó5
5
6ó255
0ó5
6
6ó255
0ó5
7
6ó255
0ó5
8
6ó255
0ó5
9
6ó255
FUNCTION
BLACKOUT
SEGMENT 1
BLACKOUT
SEGMENT 2
BLACKOUT
SEGMENT 3
FUNCTION
BLACKOUT
SEGMENT 1
BLACKOUT
SEGMENT 2
BLACKOUT
SEGMENT 3
BLACKOUT
SEGMENT 4
BLACKOUT
SEGMENT 5
BLACKOUT
SEGMENT 6
BLACKOUT
SEGMENT 7
BLACKOUT
SEGMENT 8
BLACKOUT
SEGMENT 9
