1 CH MODE
DMX CHANNEL
3 CH MODE
DMX CHANNEL
4 CH MODE
DMX CHANNEL
22

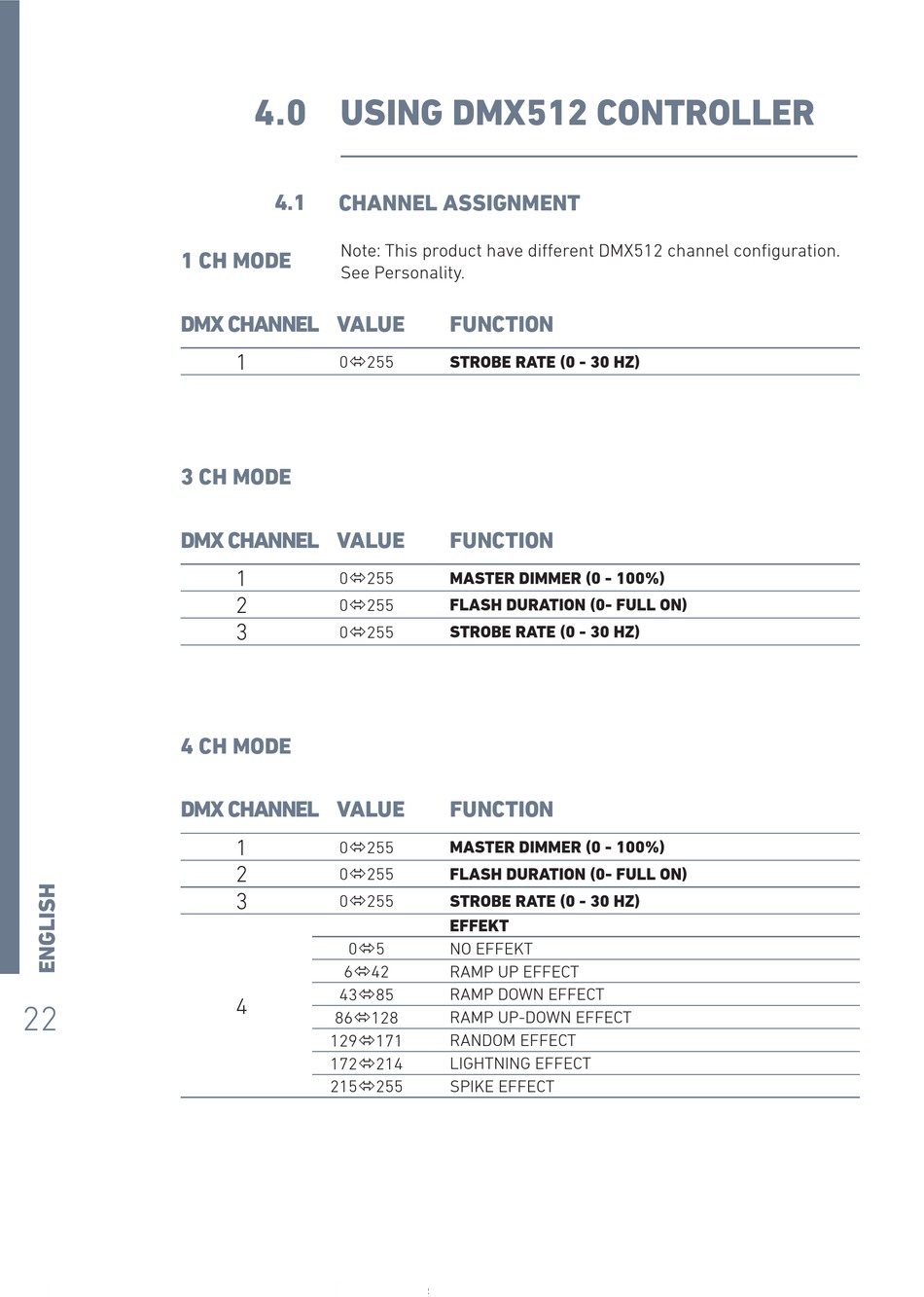

4.0 USING DMX512 CONTROLLER
4.1

CHANNEL ASSIGNMENT

Note: This product have different DMX512 channel configuration.
See Personality.
VALUE
1
0ó255
VALUE
1
0ó255
2
0ó255
3
0ó255
VALUE
1
0ó255
2
0ó255
3
0ó255
0ó5
6ó42
43ó85
4
86ó128
129ó171
172ó214
215ó255
FUNCTION
STROBE RATE (0 - 30 HZ)
FUNCTION
MASTER DIMMER (0 - 100%)
FLASH DURATION (0- FULL ON)
STROBE RATE (0 - 30 HZ)
FUNCTION
MASTER DIMMER (0 - 100%)
FLASH DURATION (0- FULL ON)
STROBE RATE (0 - 30 HZ)
EFFEKT
NO EFFEKT
RAMP UP EFFECT
RAMP DOWN EFFECT
RAMP UP-DOWN EFFECT
RANDOM EFFECT
LIGHTNING EFFECT
SPIKE EFFECT
