9. Use the paragraphs
Operational
mode:
IP address:
Netmask:
Connection
type:
10.Enter the following data in the field Global network settings:
Global prefer-
ences:
In the DHCP operational mode, the following settings are obtained auto-
matically. Inputs are therefore not possible.
Hostname:
Domain:
Gateway:
DNS Server 1:
DNS Server 2:
11.Click OK to save your data.
12.Click the Exit symbol (see figure on the right) to end the
web application.
13.Remove the twisted pair cable connection between the computer and the central
power unit.
14.Integrate the central power unit into the local network.
Interface A to enter the following data:
Select the operational mode of
menu:
 Off: switches off network interface.
 Static: uses static settings.
obtains the settings from a DHCP server.
 DHCP:
Only if the Static operating mode has been selected:
Enter the interface IP address.
Only if the Static operating mode has been selected:
Enter the network netmask.
Select if the network interface and its communication part-
ner are to negotiate the connection type automatically (
or if one of the available types is to be applied.
Select the operational mode in the pull-down menu:
uses static settings.
 Static:
obtains the settings from a DHCP server.
 DHCP:
Enter the device hostname.
Enter the domain the device is to belong to.
Enter the gateway IP address.
Enter the DNS server IP address.
Optionally, enter the IP address of another DNS server.

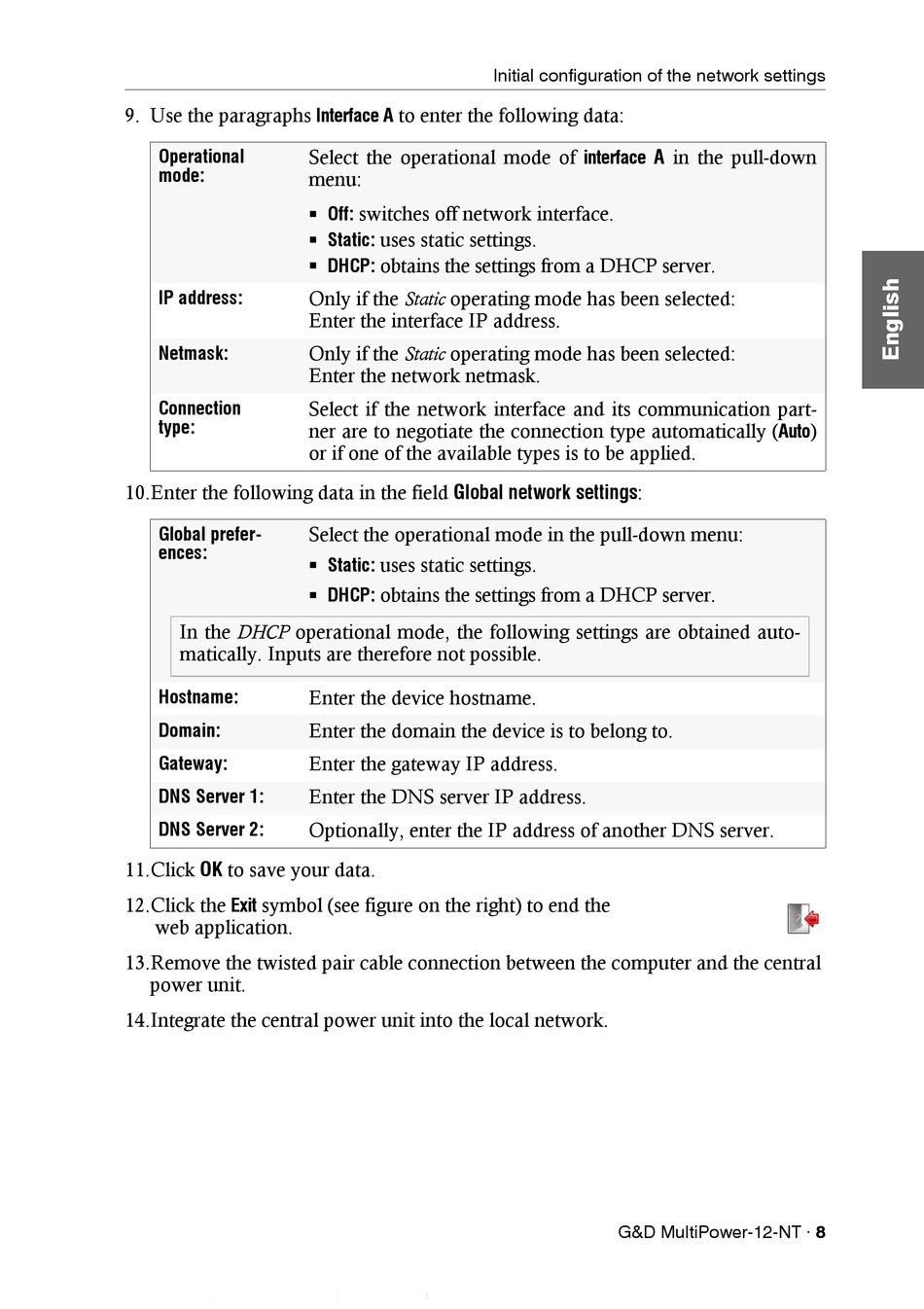

Initial configuration of the network settings
A in the pull-down
interface
G&D MultiPower-12-NT · 8
Auto )
